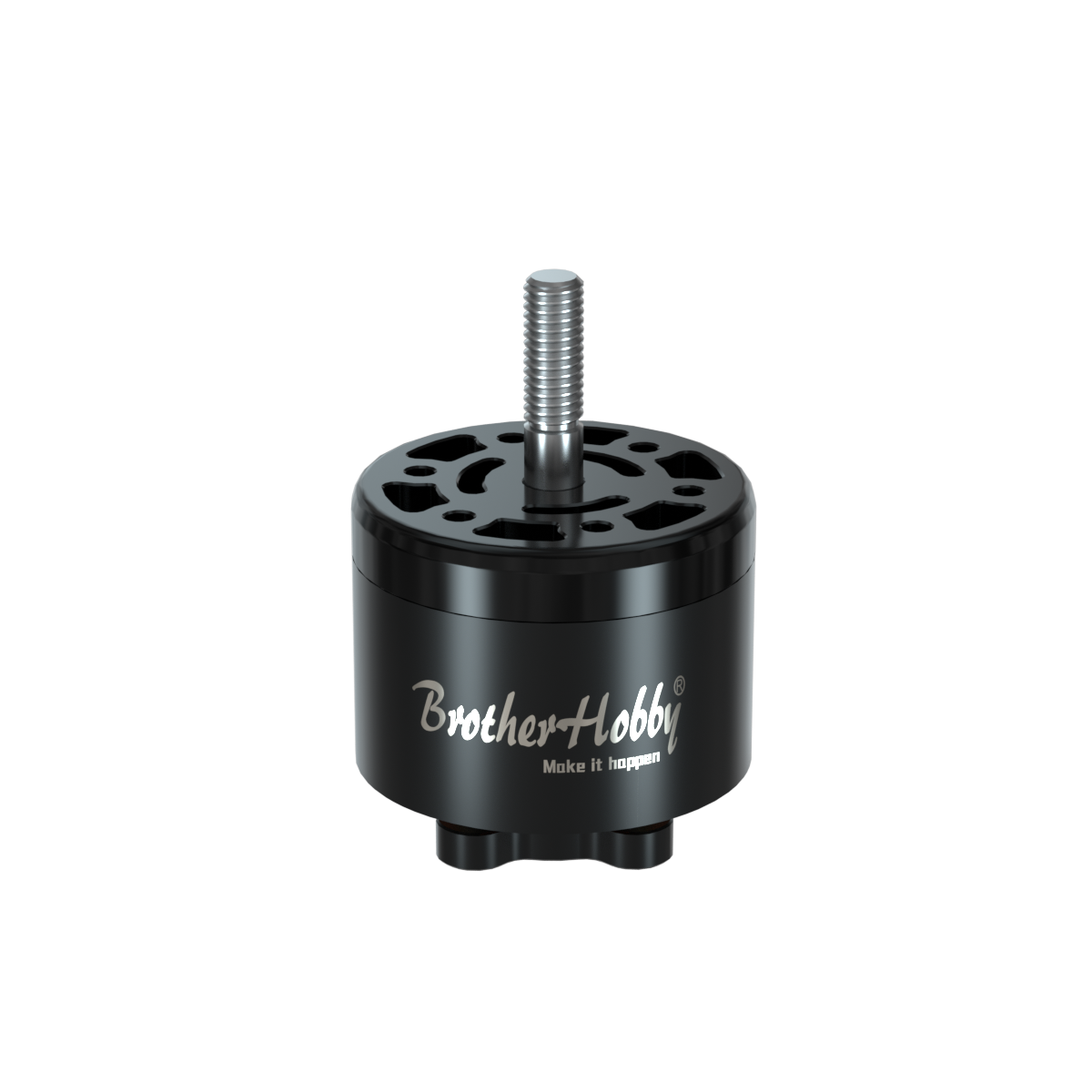

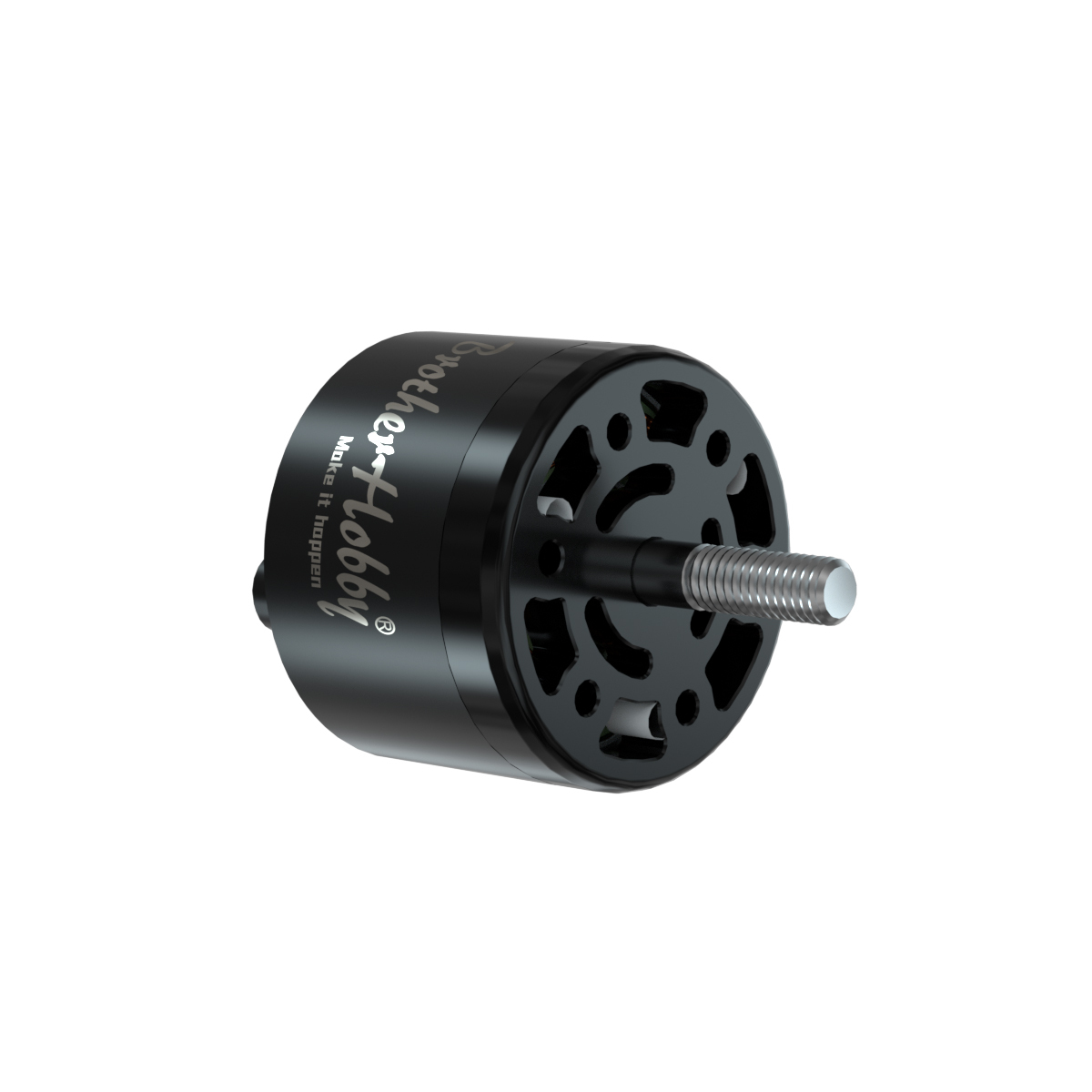

BrotherHobby Avenger 2816 V5 Motor

Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.
Specifications
KV:
760KV/770KV
Base casing:
Al 7075
Stator:
16mm
Configuration:
12N14P
Prop Adapter Shaft Thread:
M5
Shaft:
SUS420
No.of Cells(Lipo):
6S
Bolt Pattern:
M3 (19X19mm)
Bearings:
12X6X4
Rotor:
N52H arc magnets
Weight:
99g with 25cm SR wires
Wire AWG:
18AWG 25cm length
Bell cap:
Al 7075
Attributes
KV:
760
770
