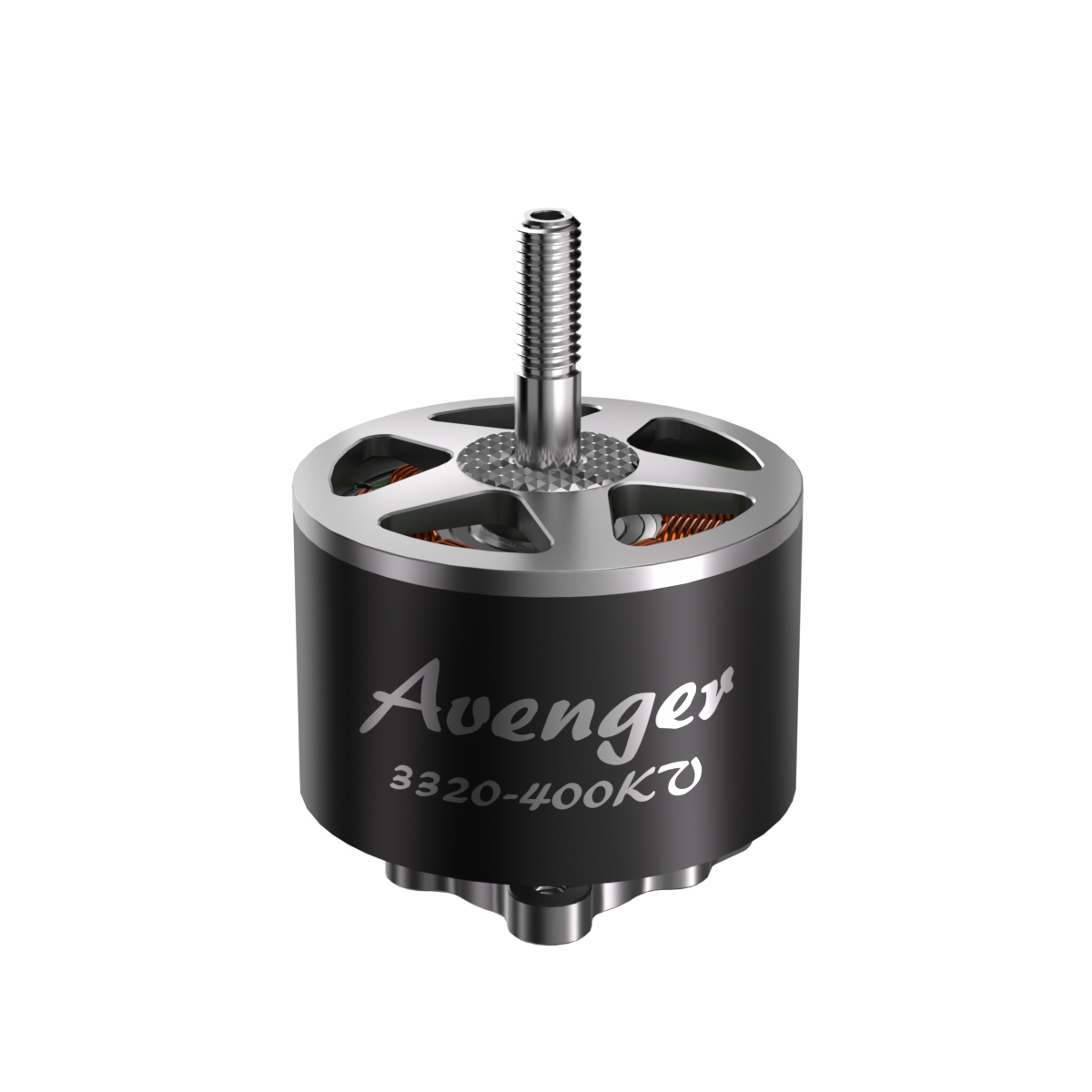

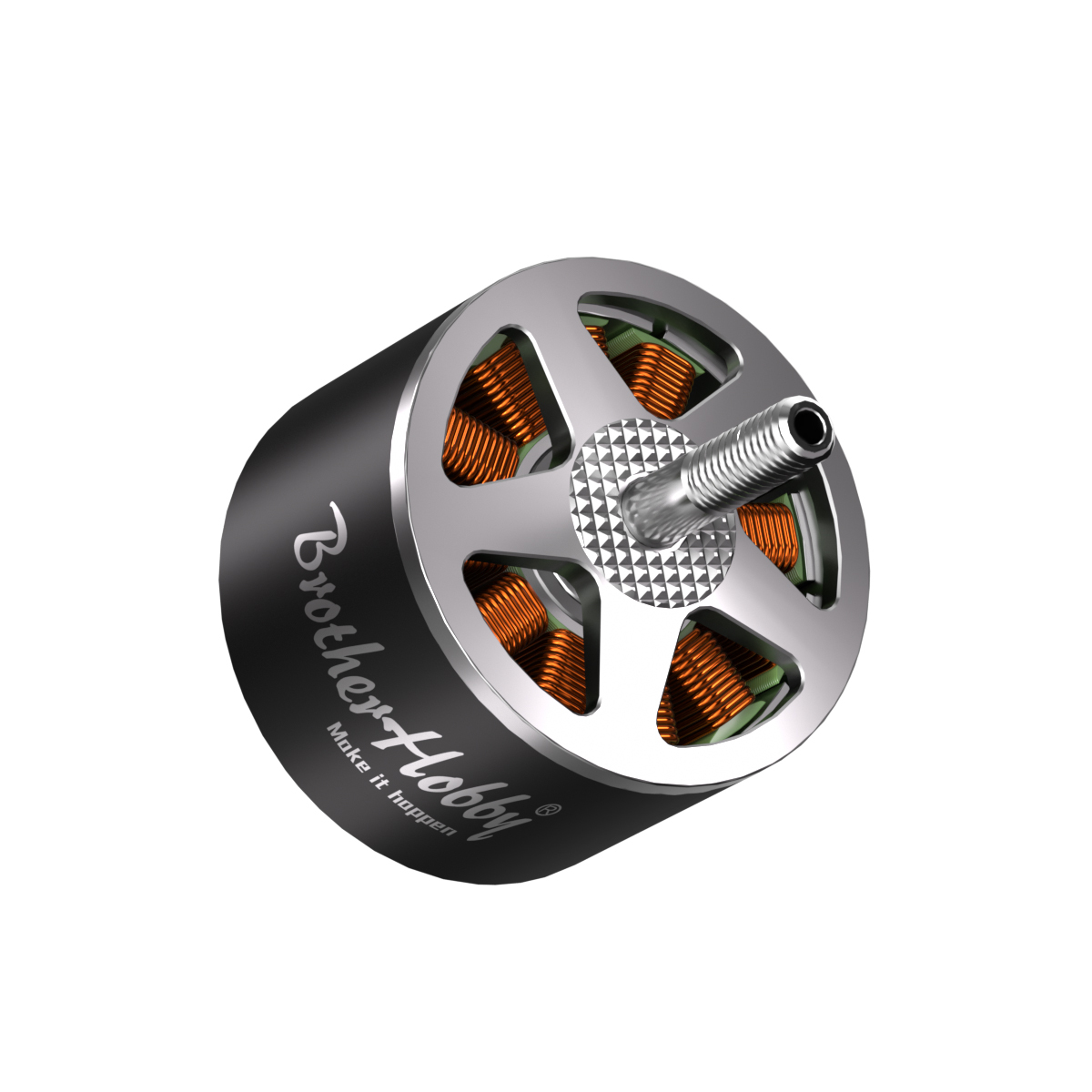

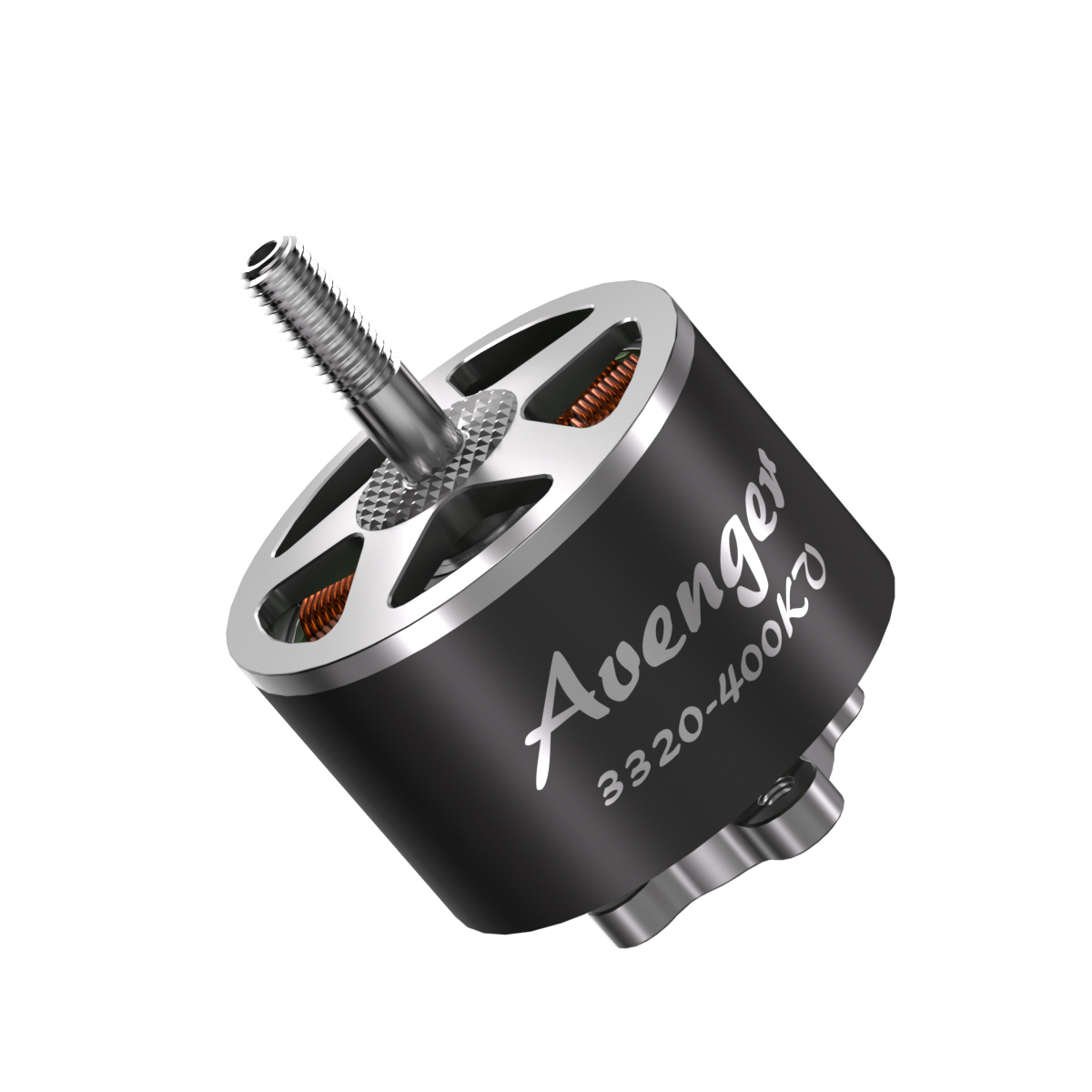

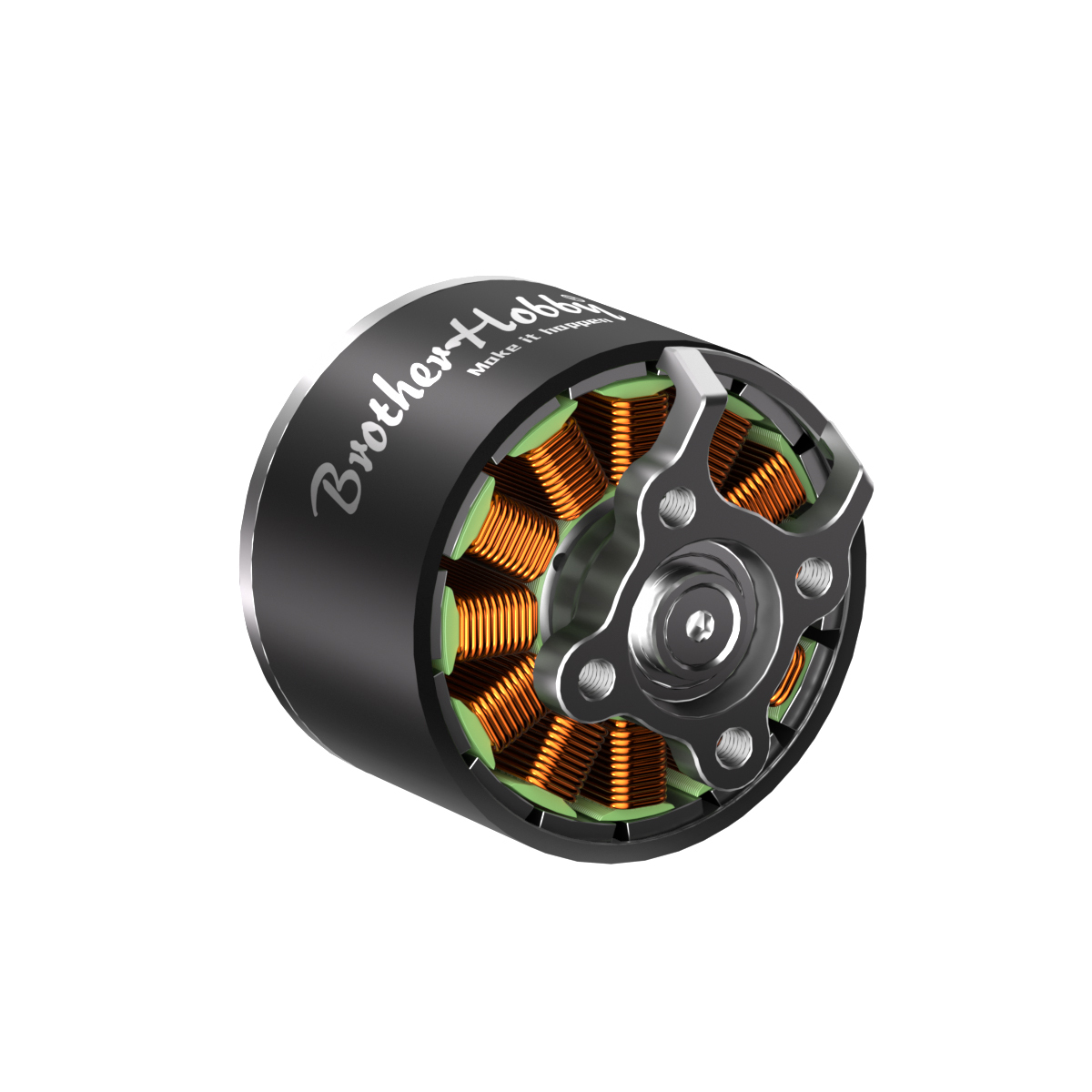

BrotherHobby Avenger 3320 690KV/400KV Motor (CW)

Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.
Specifications
KV:
690KV / 400KV
Base casing:
Al 7075
Stator:
20mm
Configuration:
12N14P
Prop Adapter Shaft Thread:
M5
Shaft:
Titanium Alloy hollow shaft
No.of Cells(Lipo):
8-12S
Bolt Pattern:
M3 (19X19mm)
Bearings:
12X6X4
Rotor:
N52H arc magnets
Weight:
151g
Wire AWG:
16AWG 30cm length
Bell cap:
Al 7075
Attributes
KV:
400
690
