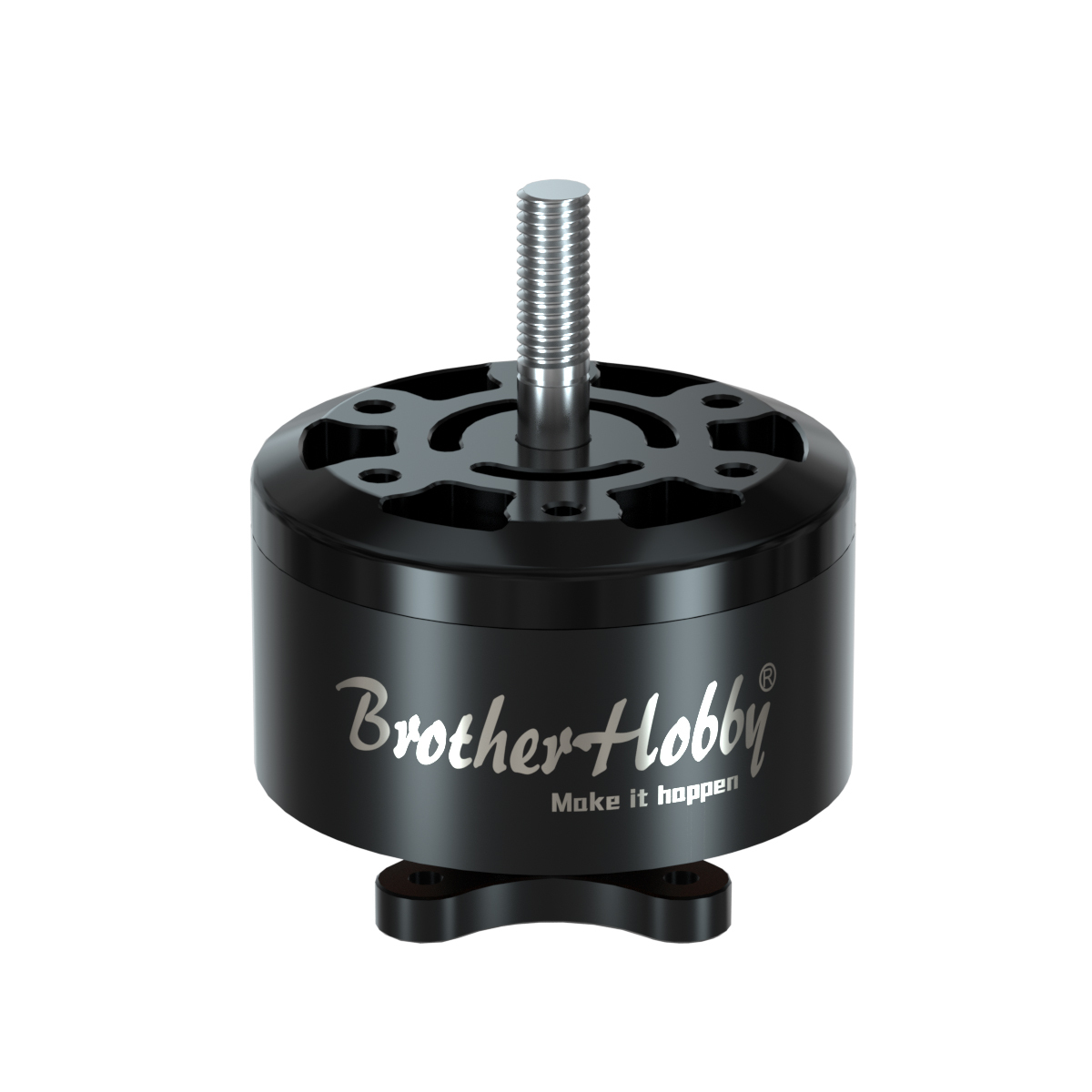

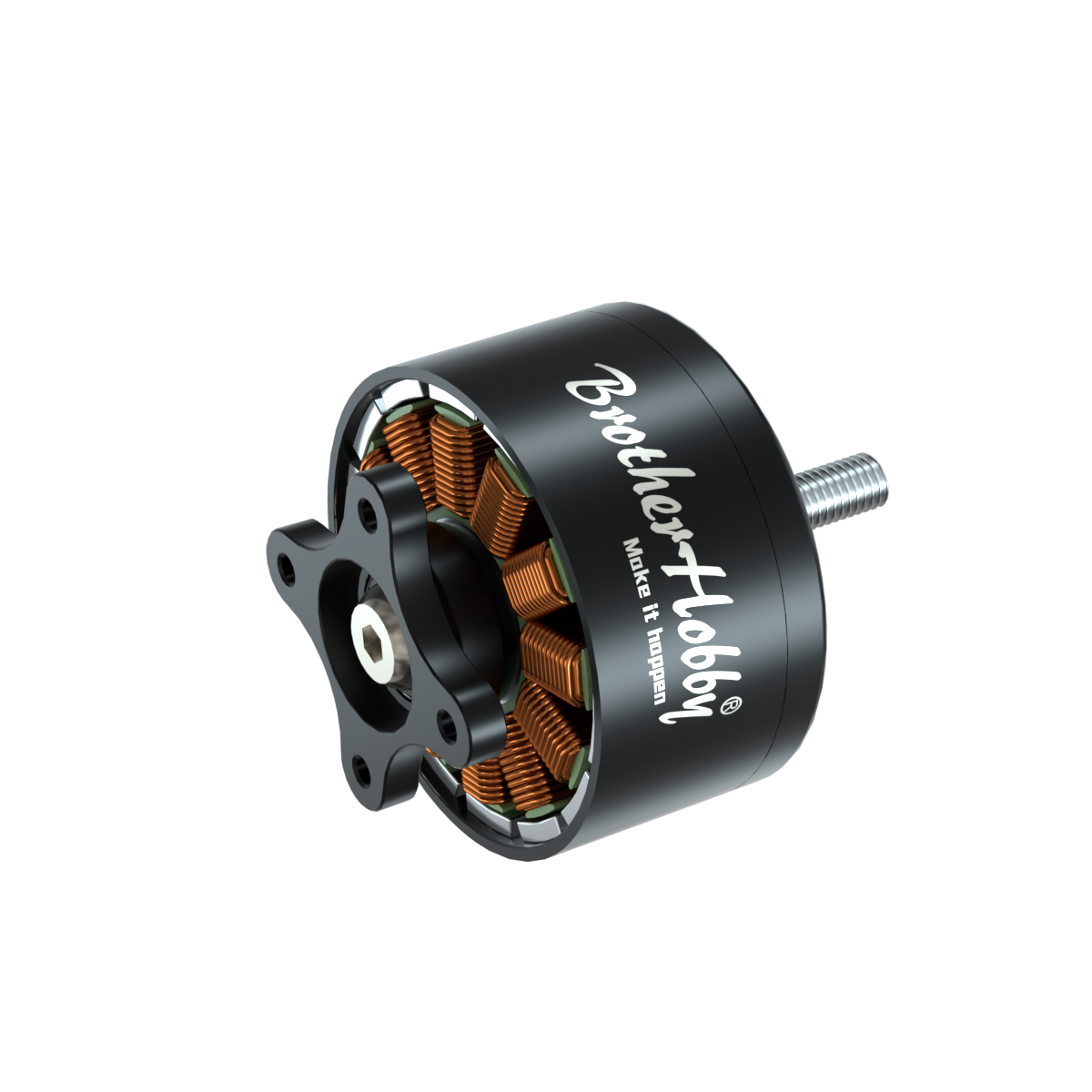

BrotherHobby Avenger 3515 V5 Motor

Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.

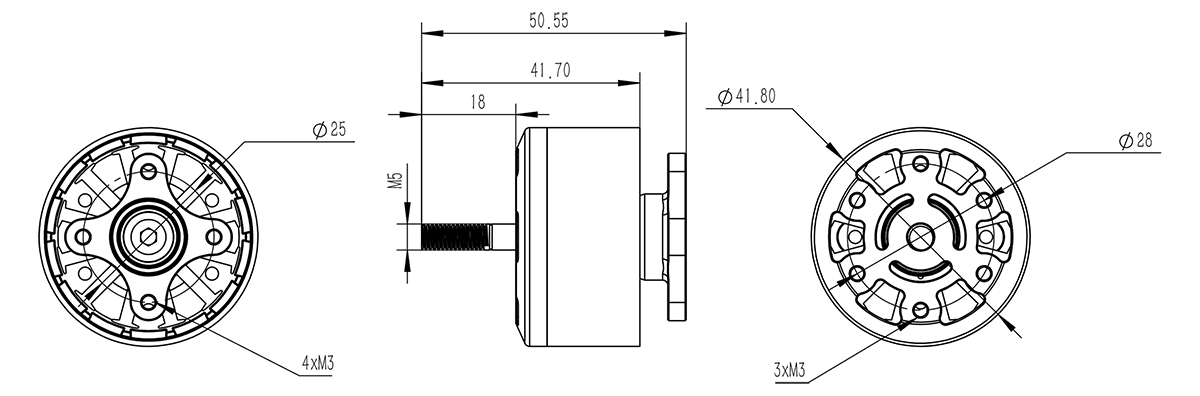

Specifications
KV:
370KV/520KV/550KV/680KV
Base casing:
Al 7075
Stator:
15mm
Configuration:
12N14P
Prop Adapter Shaft Thread:
M5
Shaft:
SUS420
No.of Cells(Lipo):
6-8S
Bolt Pattern:
M3 (25X25mm)
Bearings:
12X6X4
Rotor:
N52H arc magnets
Weight:
159g with 35cm SR wires
Wire AWG:
16AWG 35cm length
Bell cap:
Al 7075
Attributes
KV:
370
520
550
680
580
