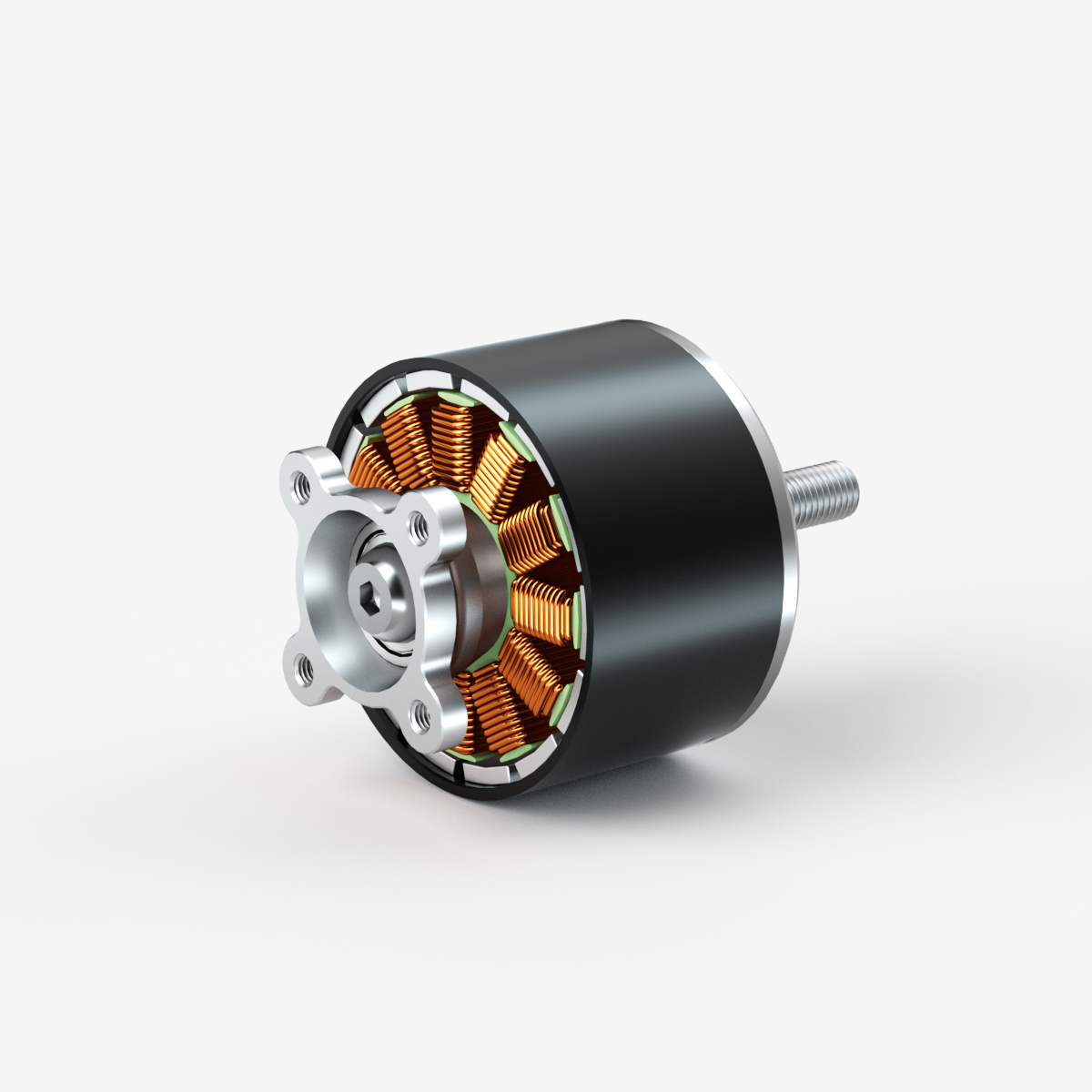

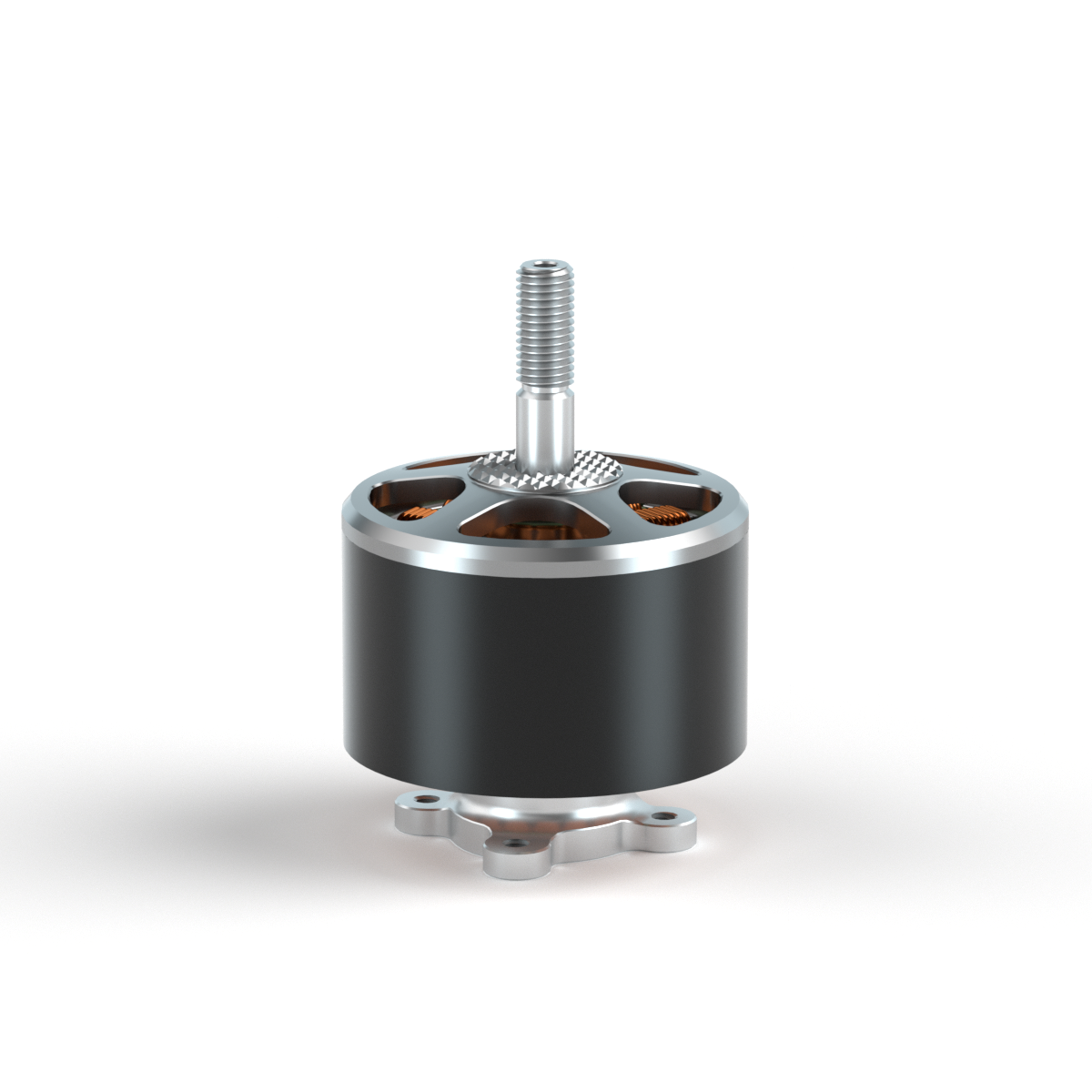

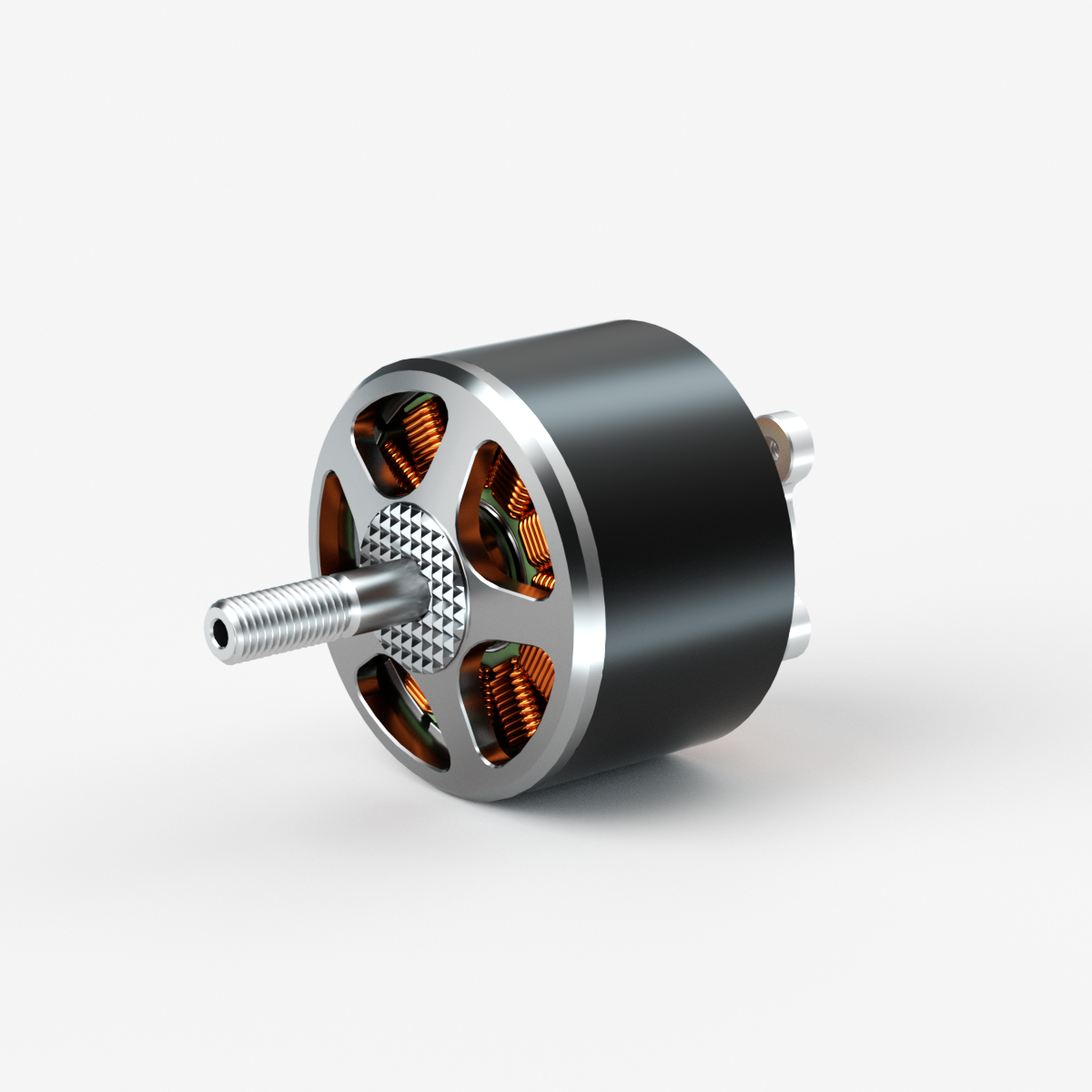

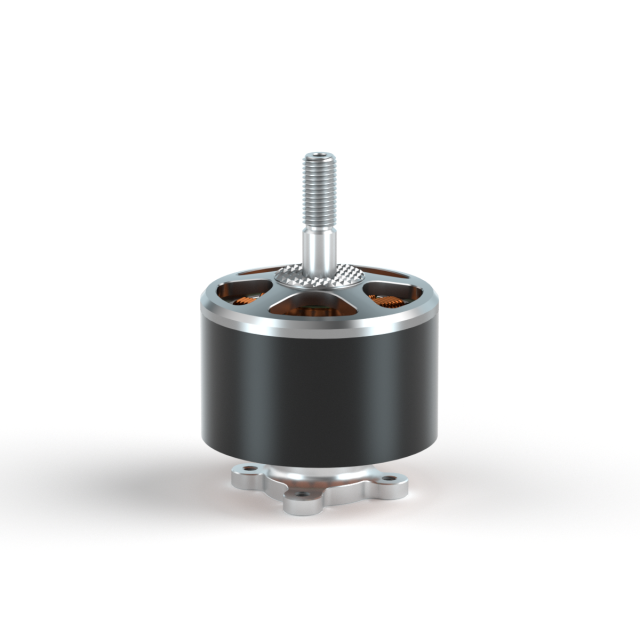

BrotherHobby Avenger 3520 Motor
BrotherHobby Avenger 3520 Motor
Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.
Specifications
Base casing:
Al 7075
Stator:
20mm
Configuration:
12N14P
Shaft:
SUS420
Bolt Pattern:
M3(25*25mm)
Bearings:
Φ14*Φ8*4
Rotor:
N52H arc magnets
Bell cap:
Al 7075
Prop Adapter Shaft Thread:
M6
GET A QUOTE
