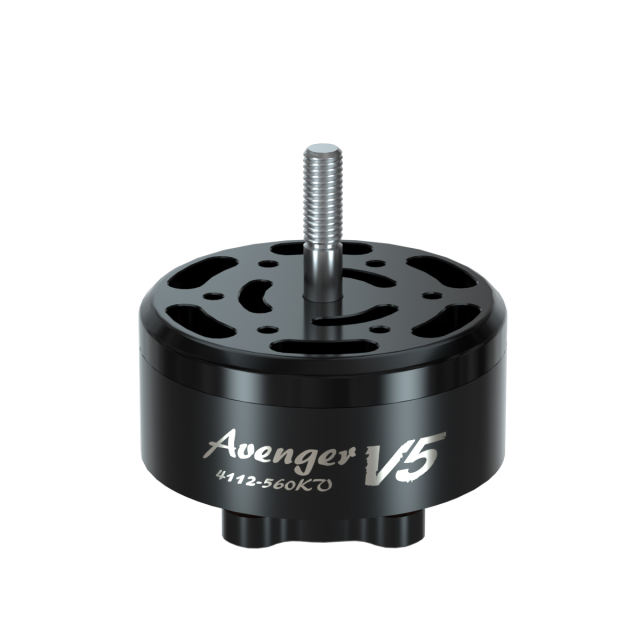

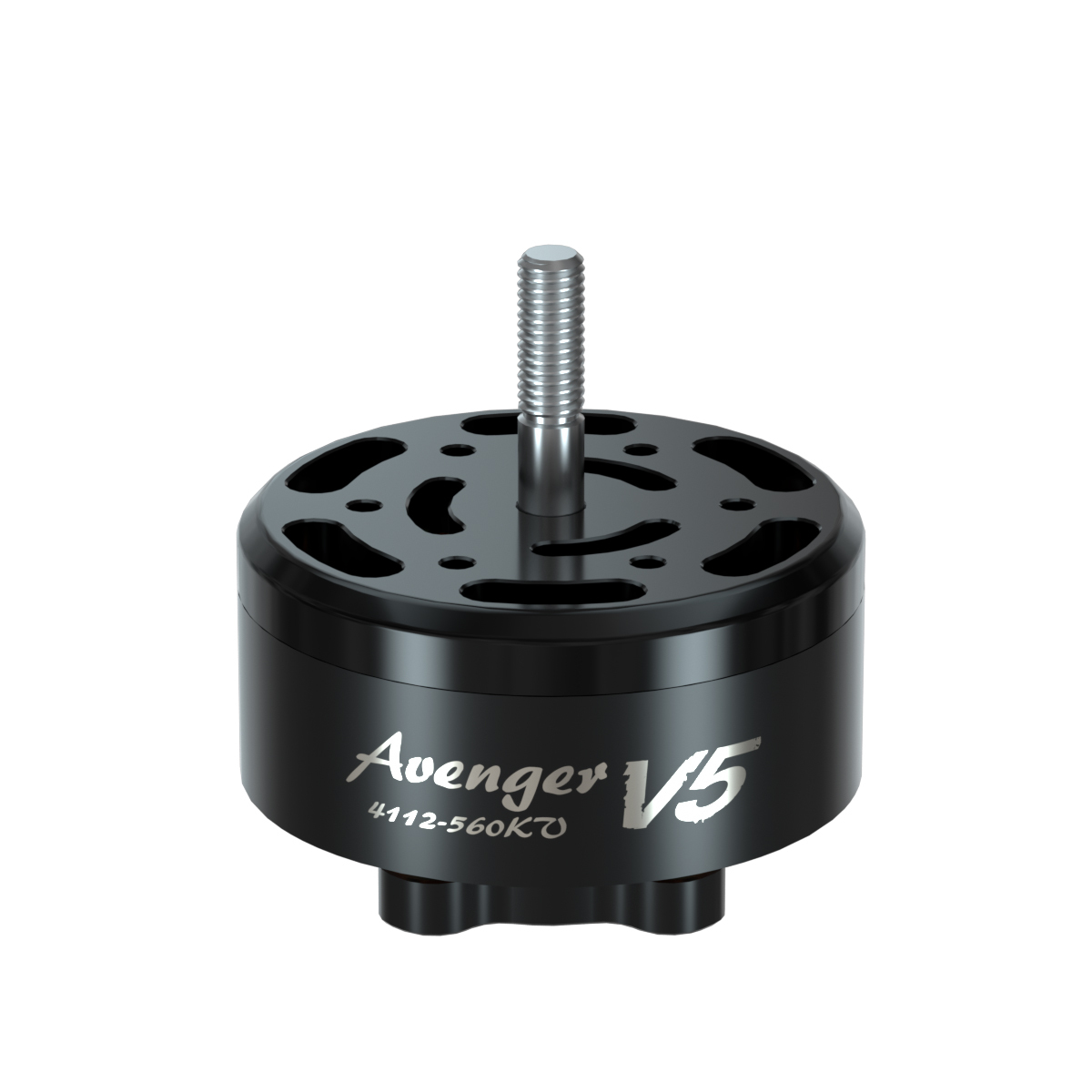

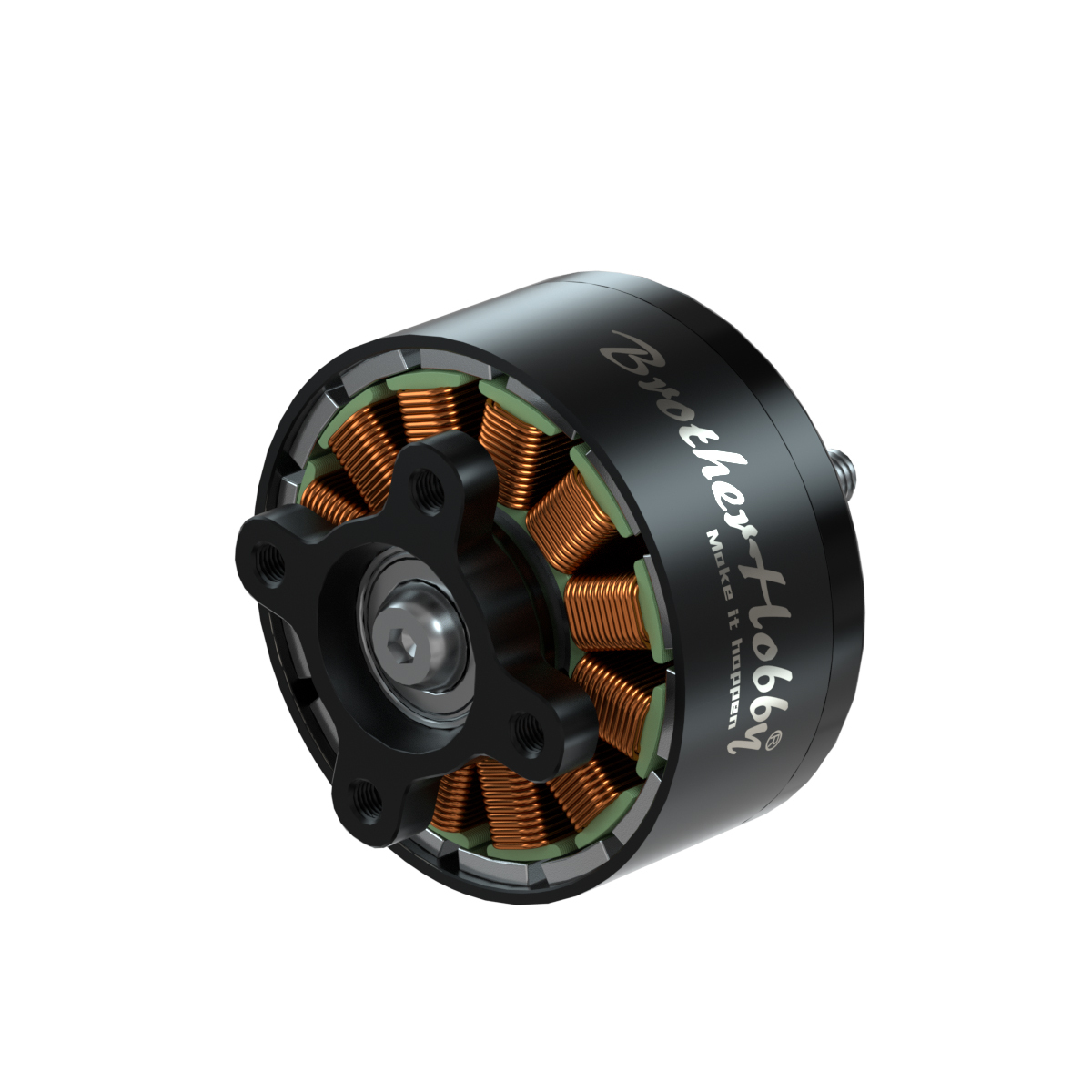

BrotherHobby Avenger 4112 V5 560KV/720KV Motor(CW)

Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.
Specifications
KV:
380KV/515KV/560KV/720KV
Base casing:
Al 7075
Stator:
12mm
Configuration:
12N14P
Prop Adapter Shaft Thread:
M5
Shaft:
SUS420
No.of Cells(Lipo):
6-8S
Bolt Pattern:
M3 (25X25mm)
Bearings:
12X6X4
Rotor:
N52H arc magnets
Weight:
168g with 30cm SR wires
Wire AWG:
16AWG 30cm length
Bell cap:
Al 7075
Attributes
KV:
380
515
560
720
