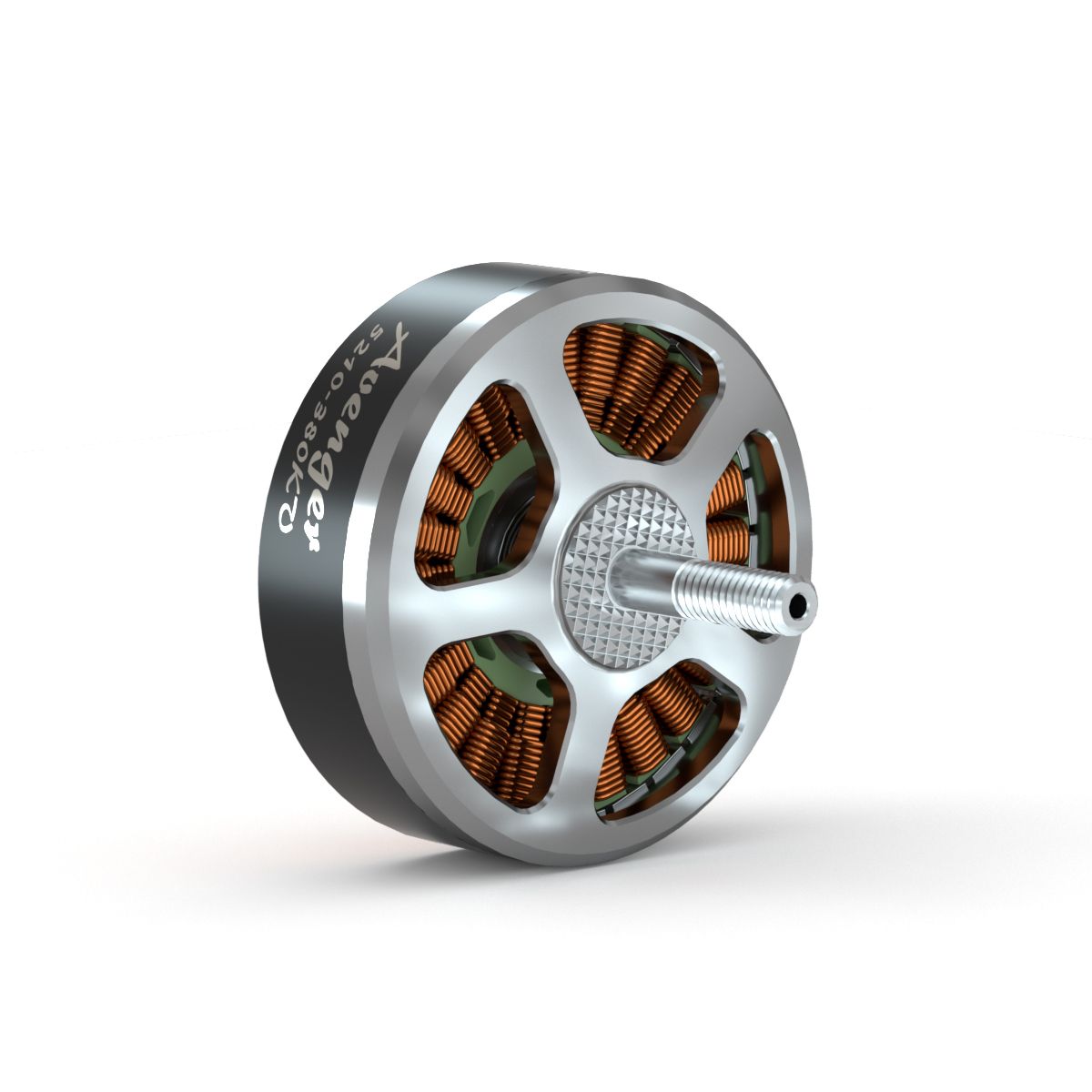

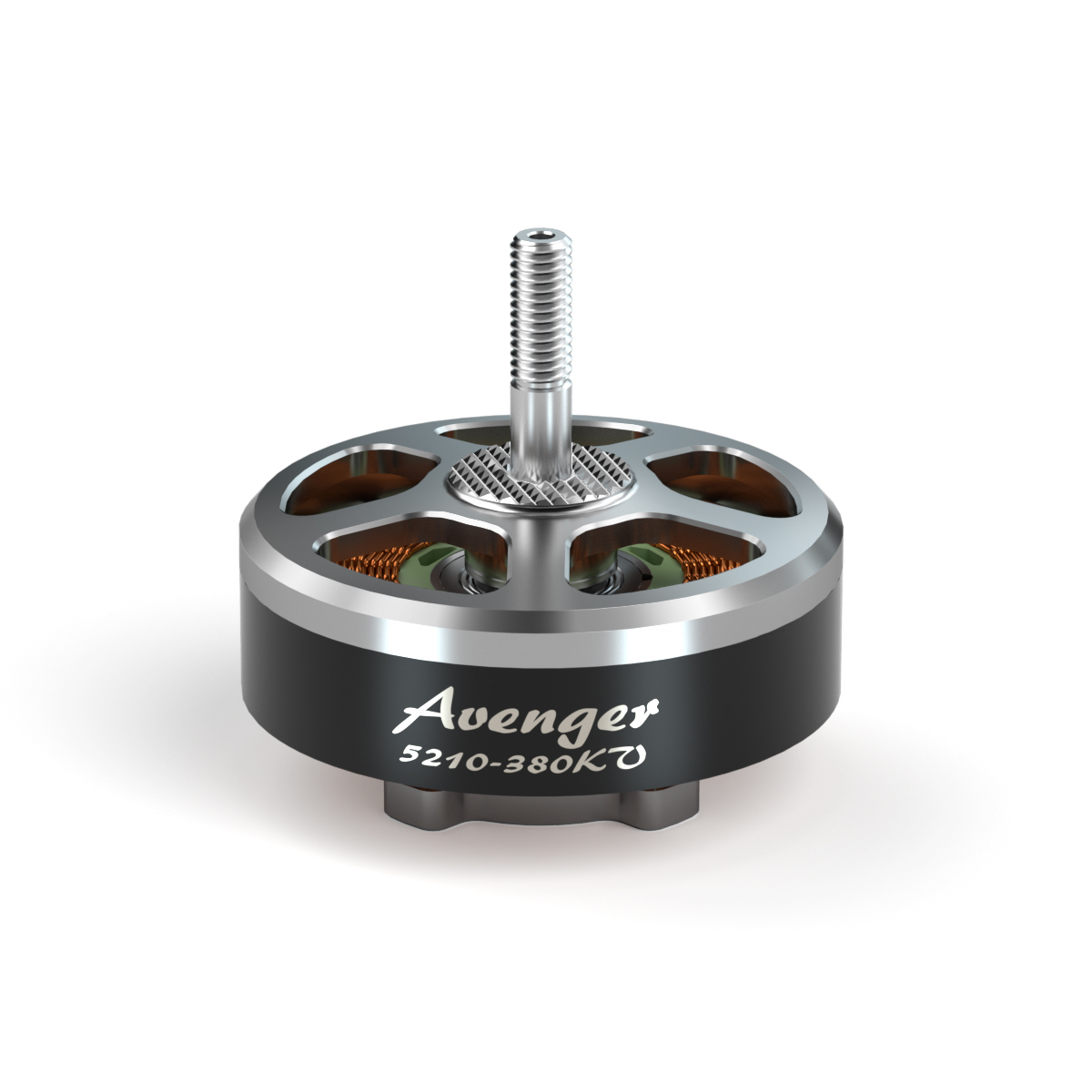

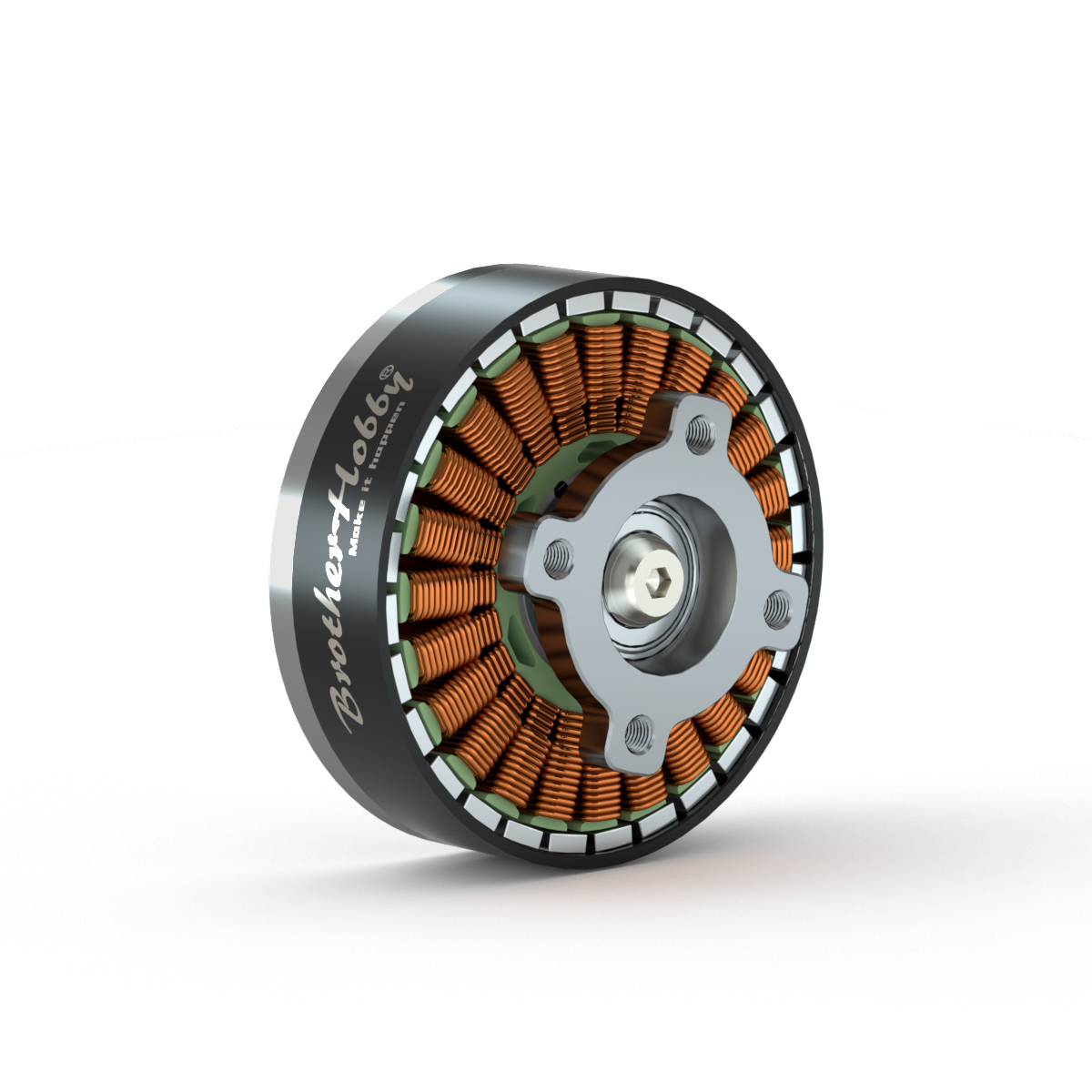

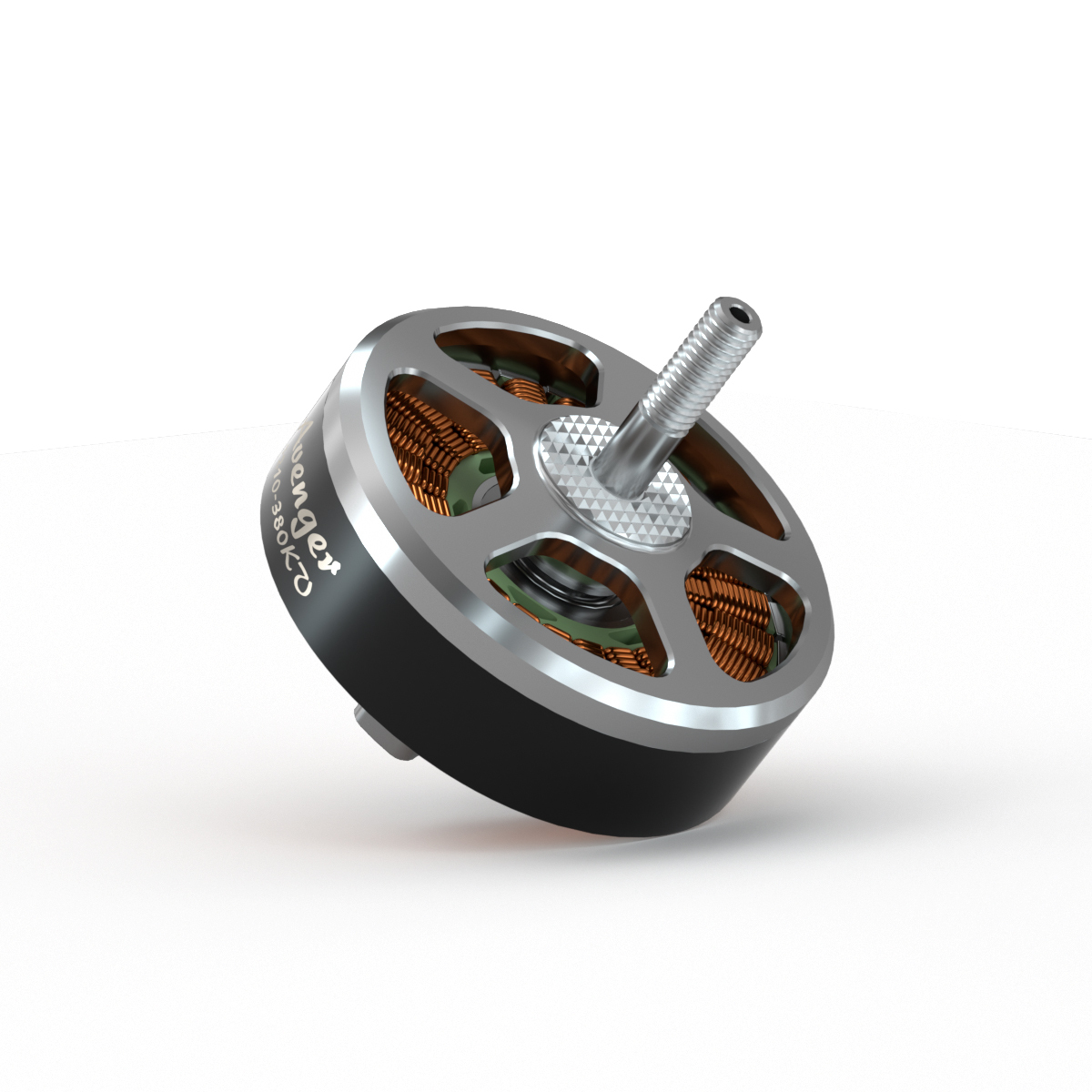

BrotherHobby Avenger 5210 380KV/470KV Motor(CW)

Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.
Specifications
KV:
360KV/400KV/415KV
Base casing:
Al 7075
Stator:
10mm
Configuration:
24N28P
Prop Adapter Shaft Thread:
M6
Shaft:
SUS420
No.of Cells(Lipo):
8S
Bolt Pattern:
M4 (30X30mm)
Bearings:
Φ16*Φ8*5
Rotor:
N52H arc magnets
Weight:
213g
Wire AWG:
16AWG 30cm length
Bell cap:
Al 7075
Attributes
KV:
360
400
415
GET A QUOTE
