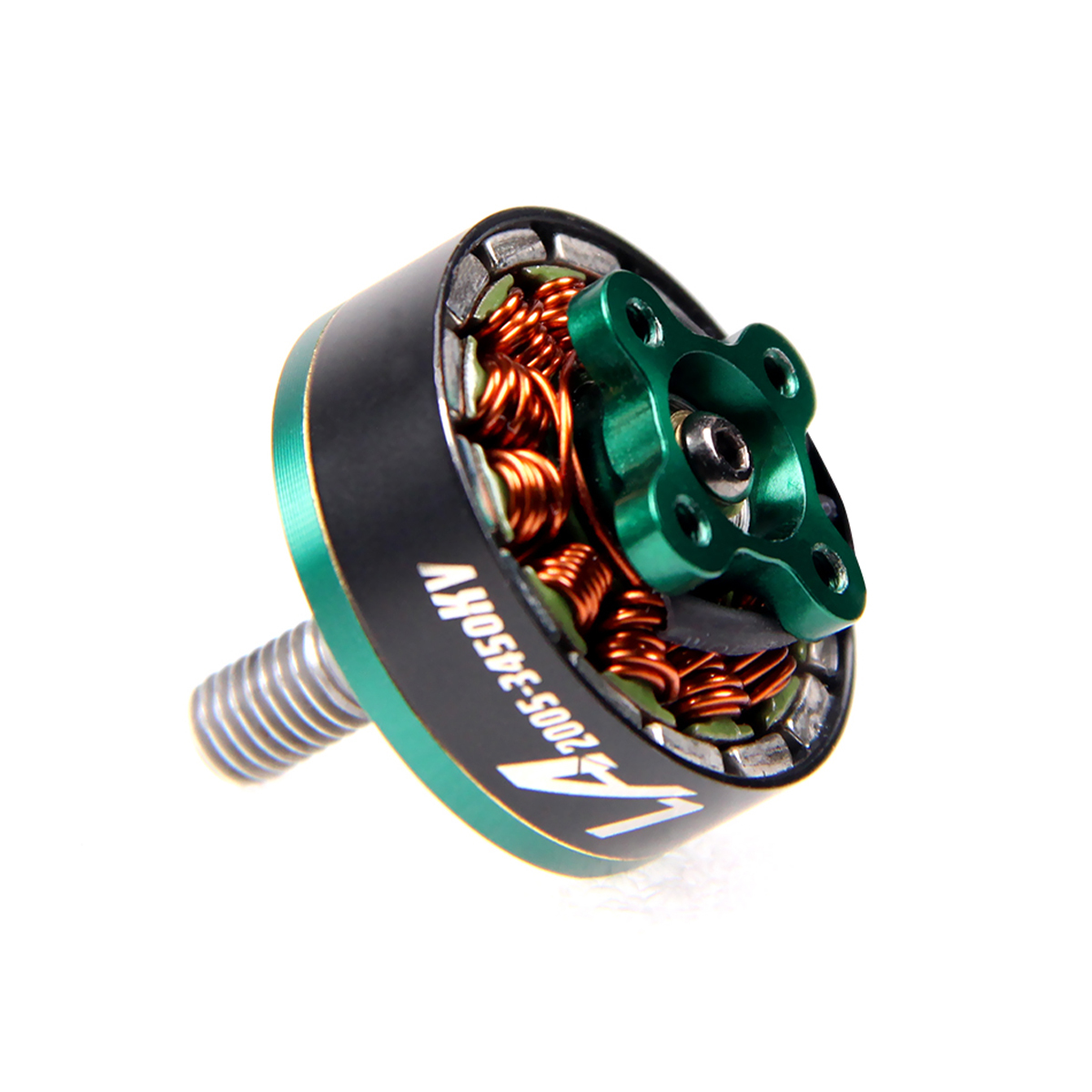

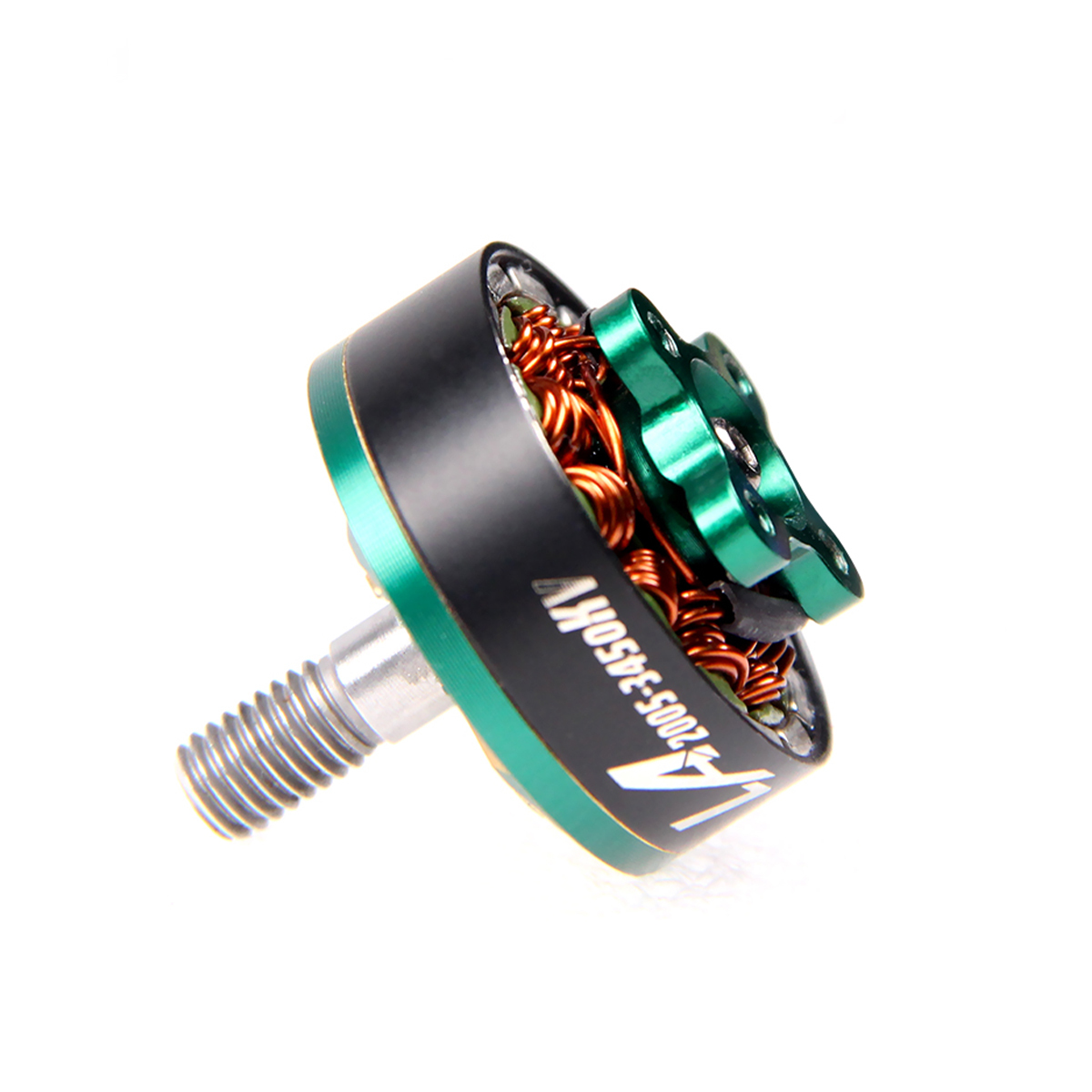

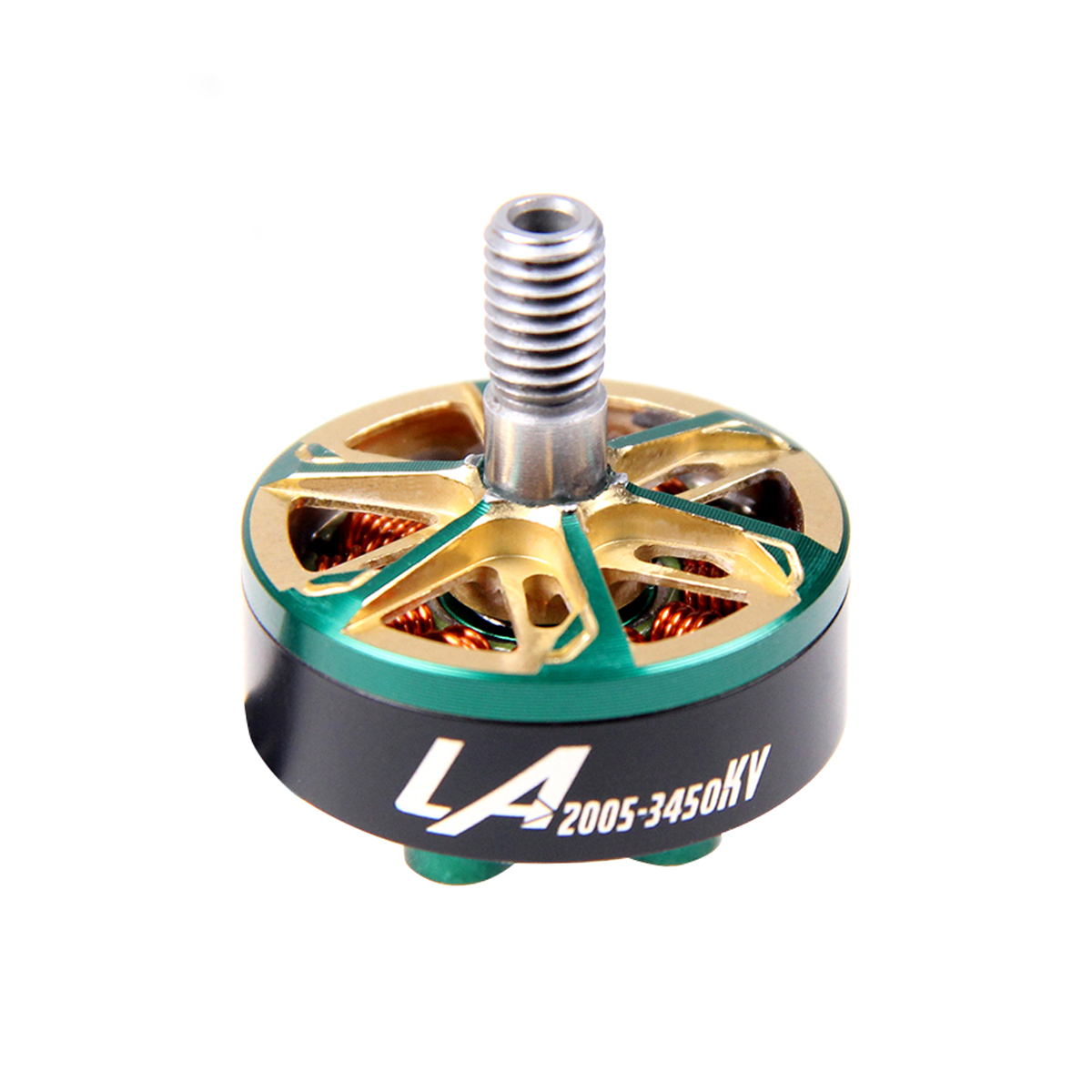

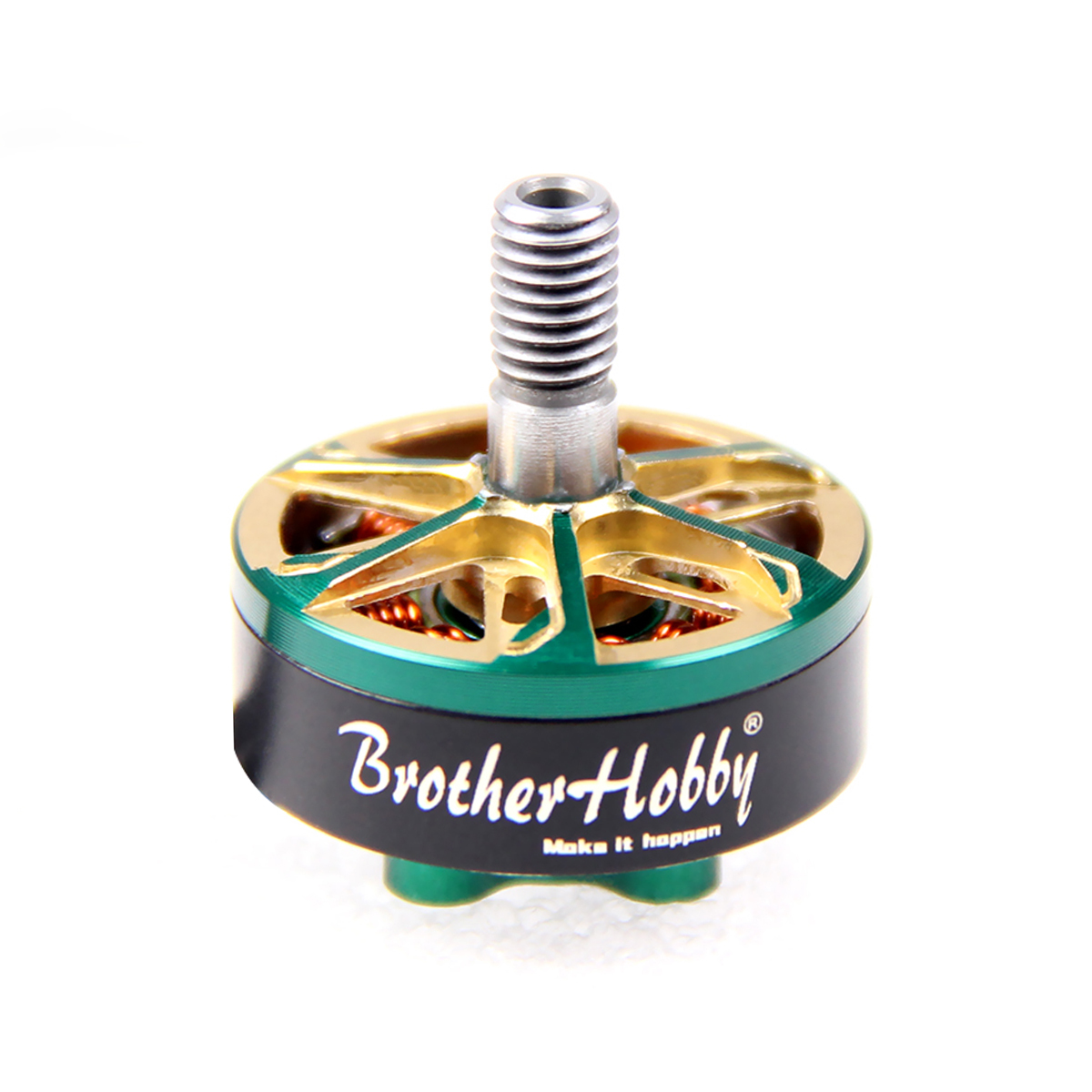

BrotherHobby LA 2005 Motor(CW)

Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.
Specifications
KV:
1450KV/2450KV/2800KV/3450KV
Base casing:
Al 7075
Stator:
5mm
Configuration:
12N14P
Prop Adapter Shaft Thread:
M5
Shaft:
SUS 420
No.of Cells(Lipo):
4-6S
Bolt Pattern:
M2 (12X12mm)
Bearings:
Φ7*Φ3*3
Rotor:
N52H arc magnets
Weight:
21g
Wire AWG:
24AWG 16cm length
Bell cap:
Al 7075
Attributes
KV:
1450
2450
2800
3450
