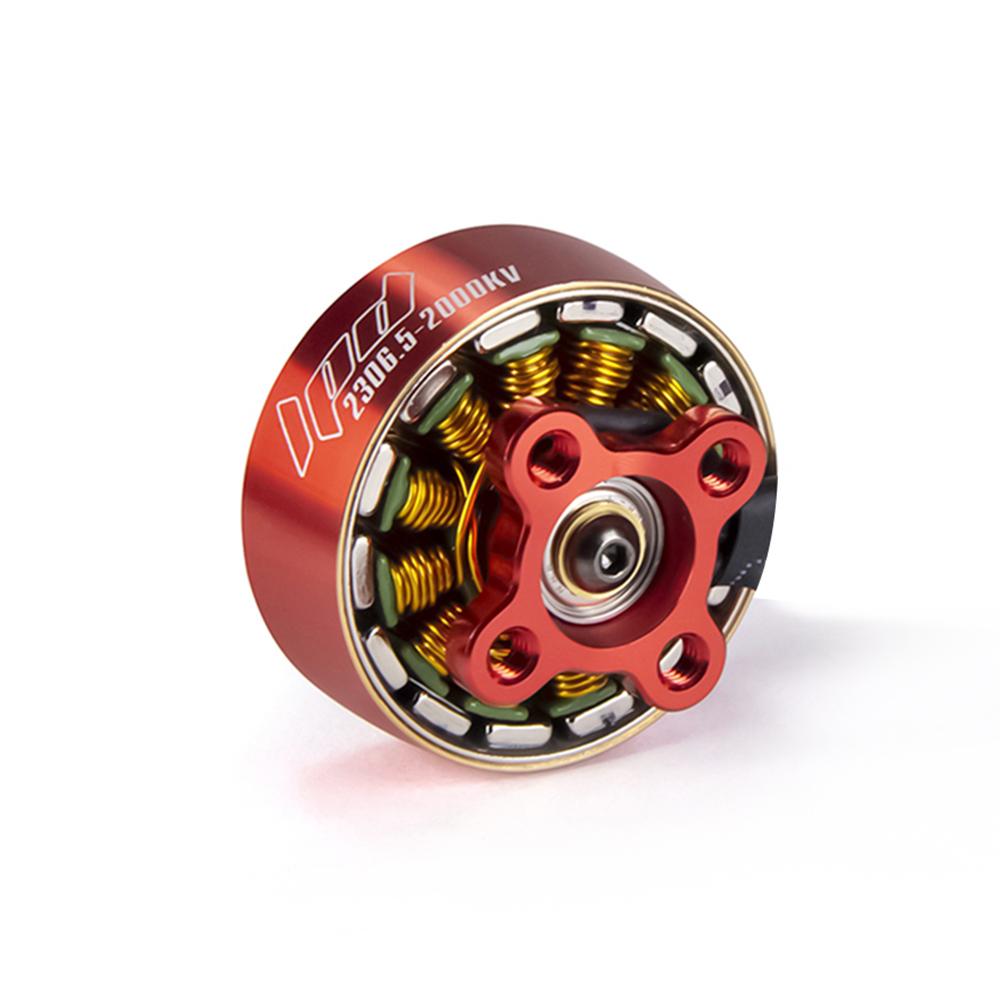

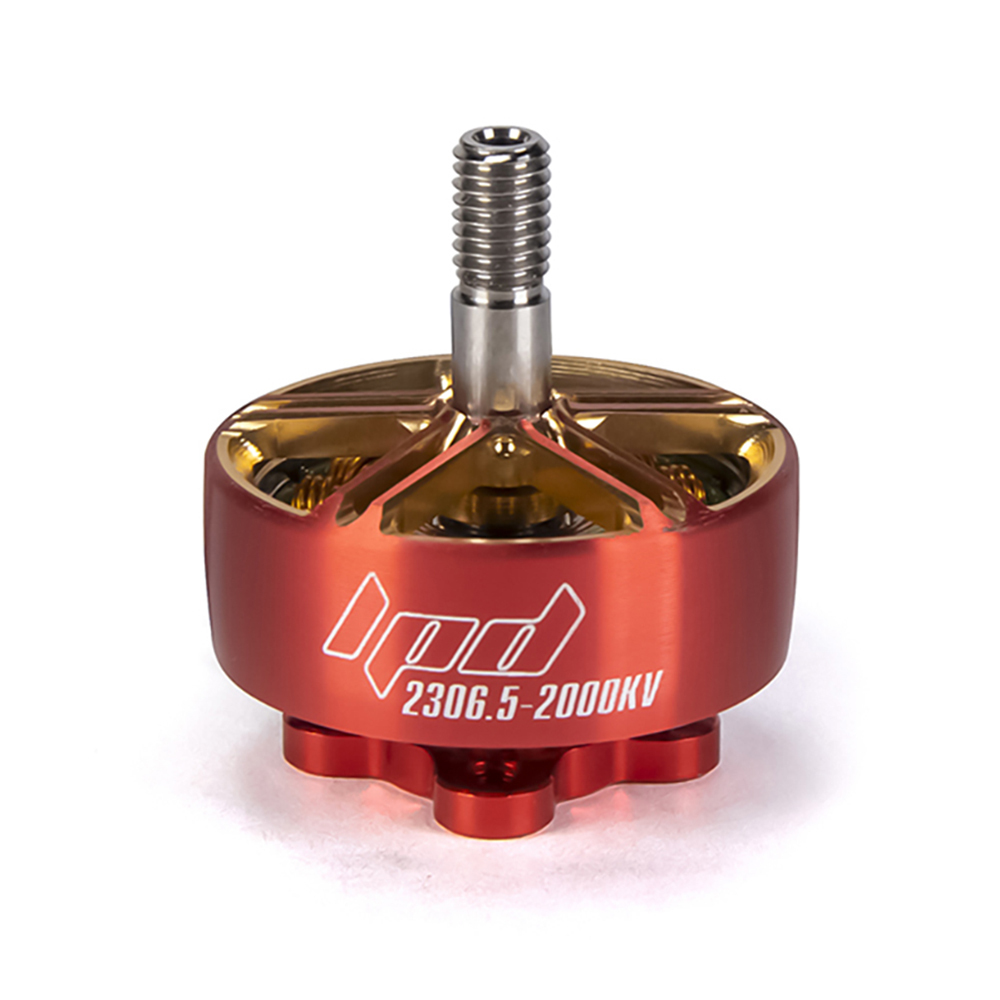

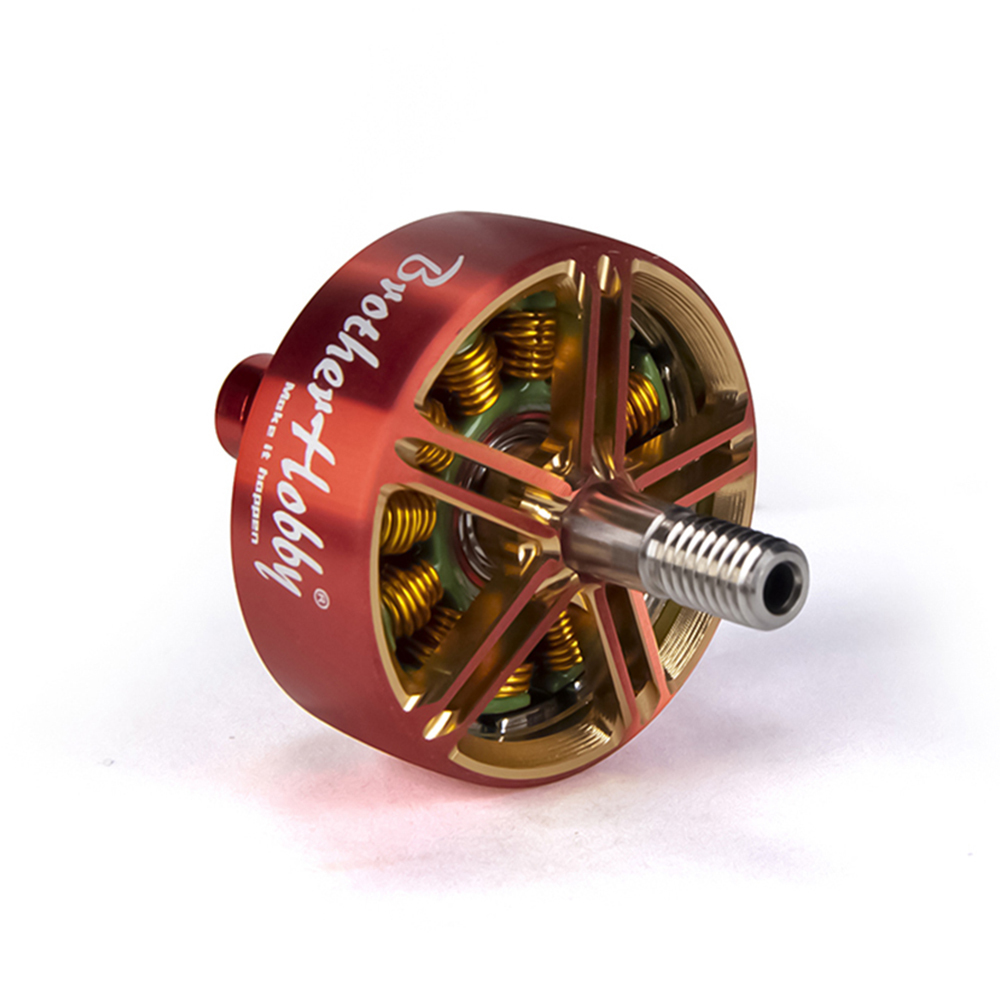

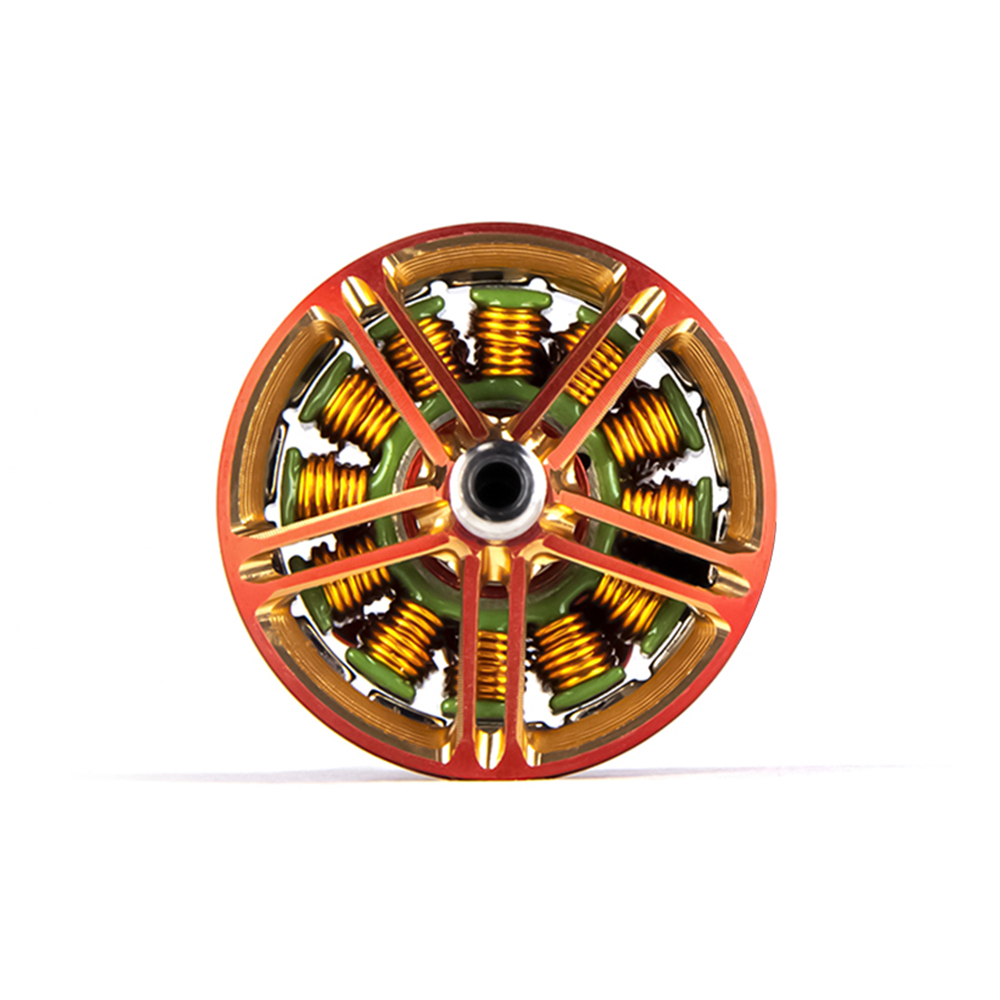

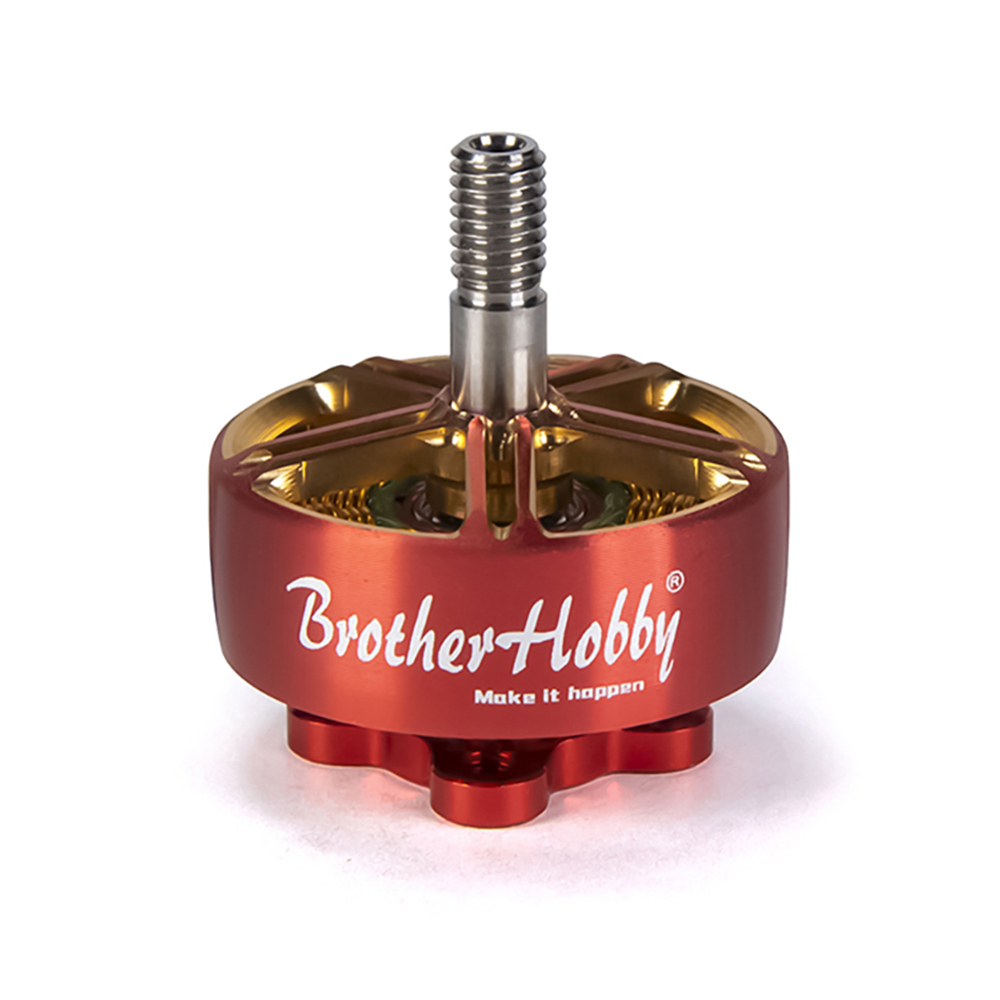

BrotherHobby LPD 2306.5 Motor (CW)

Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.
Specifications
KV:
2000KV/2450KV/2650KV
Base casing:
Al 7075
Stator:
6.5mm
Configuration:
12N14P
Prop Adapter Shaft Thread:
M5
Shaft:
Titanium Alloy hollow shaft
No.of Cells(Lipo):
4-6S

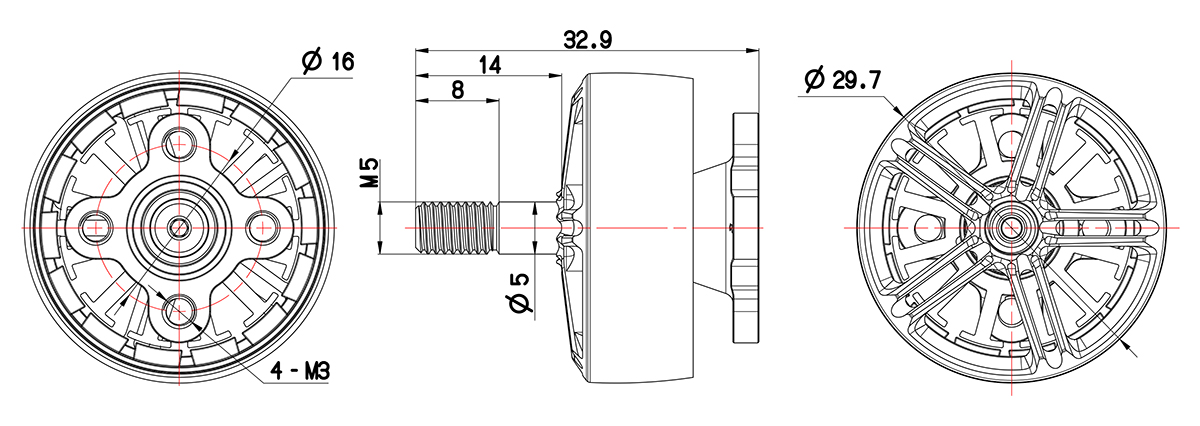

Bolt Pattern:
M3(16X16mm)
Bearings:
Φ9*Φ4*4
Rotor:
N52H arc magnets
Wire AWG:
20AWG 16cm length
Bell cap:
Al 7075
Attributes
KV:
2000
2450
2650
