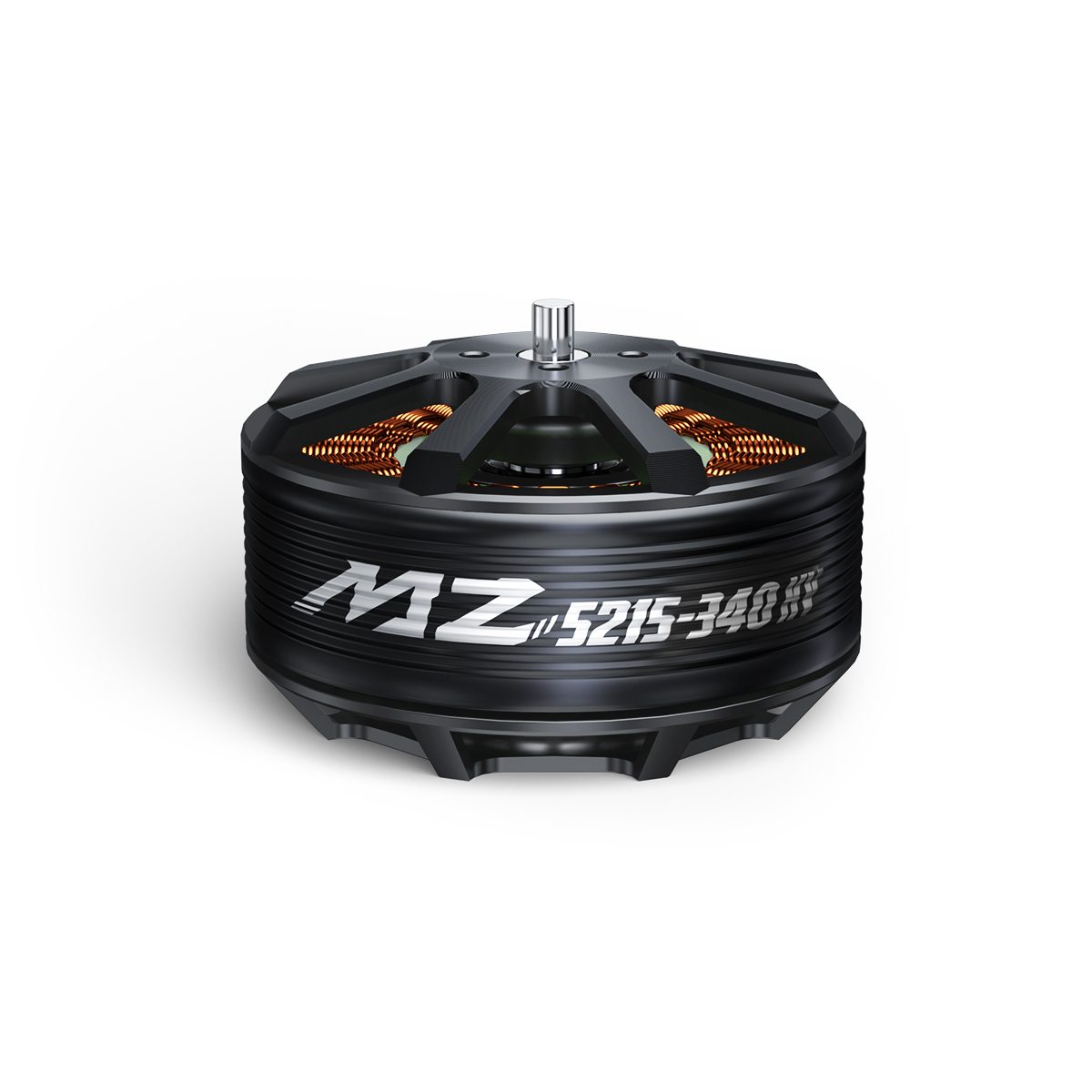

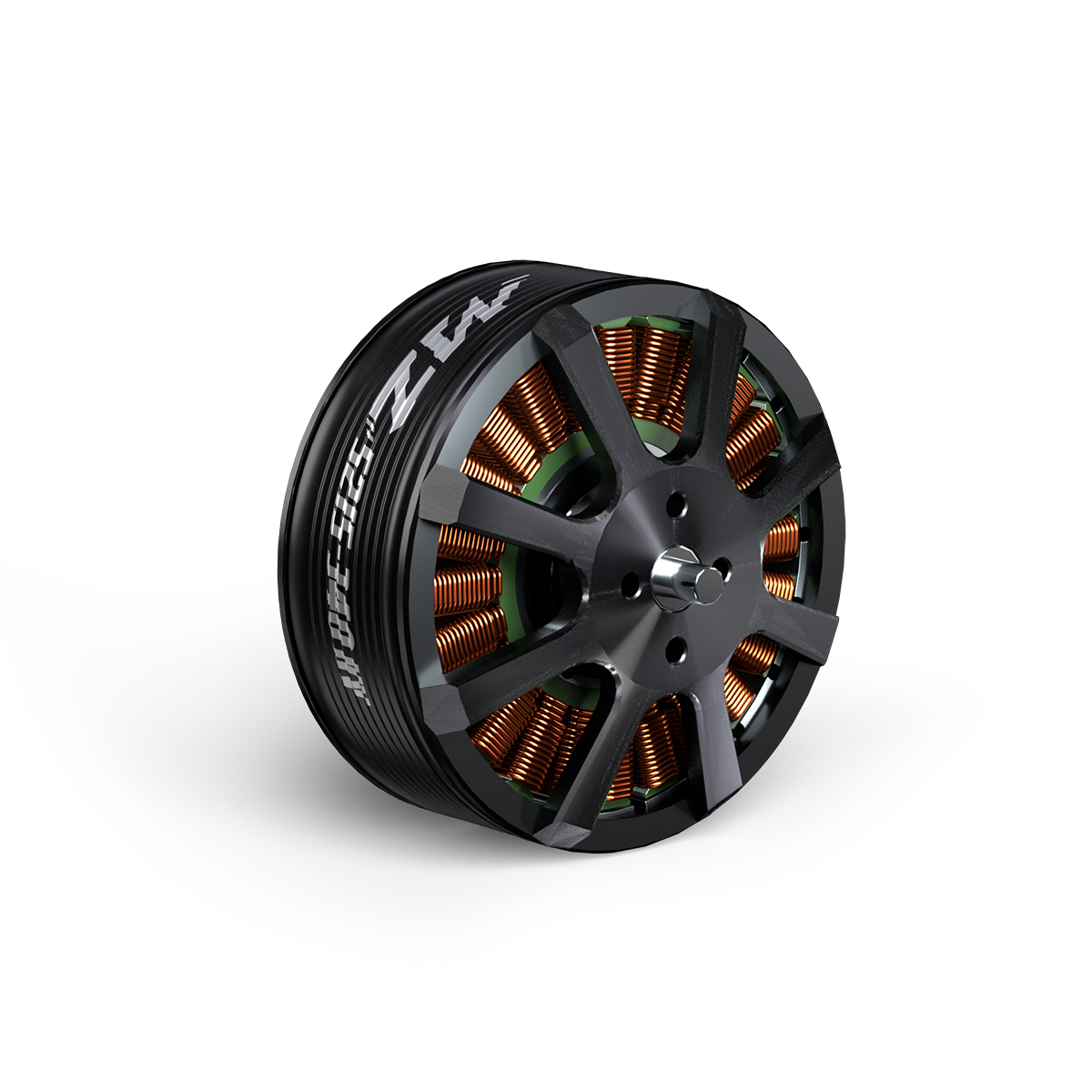

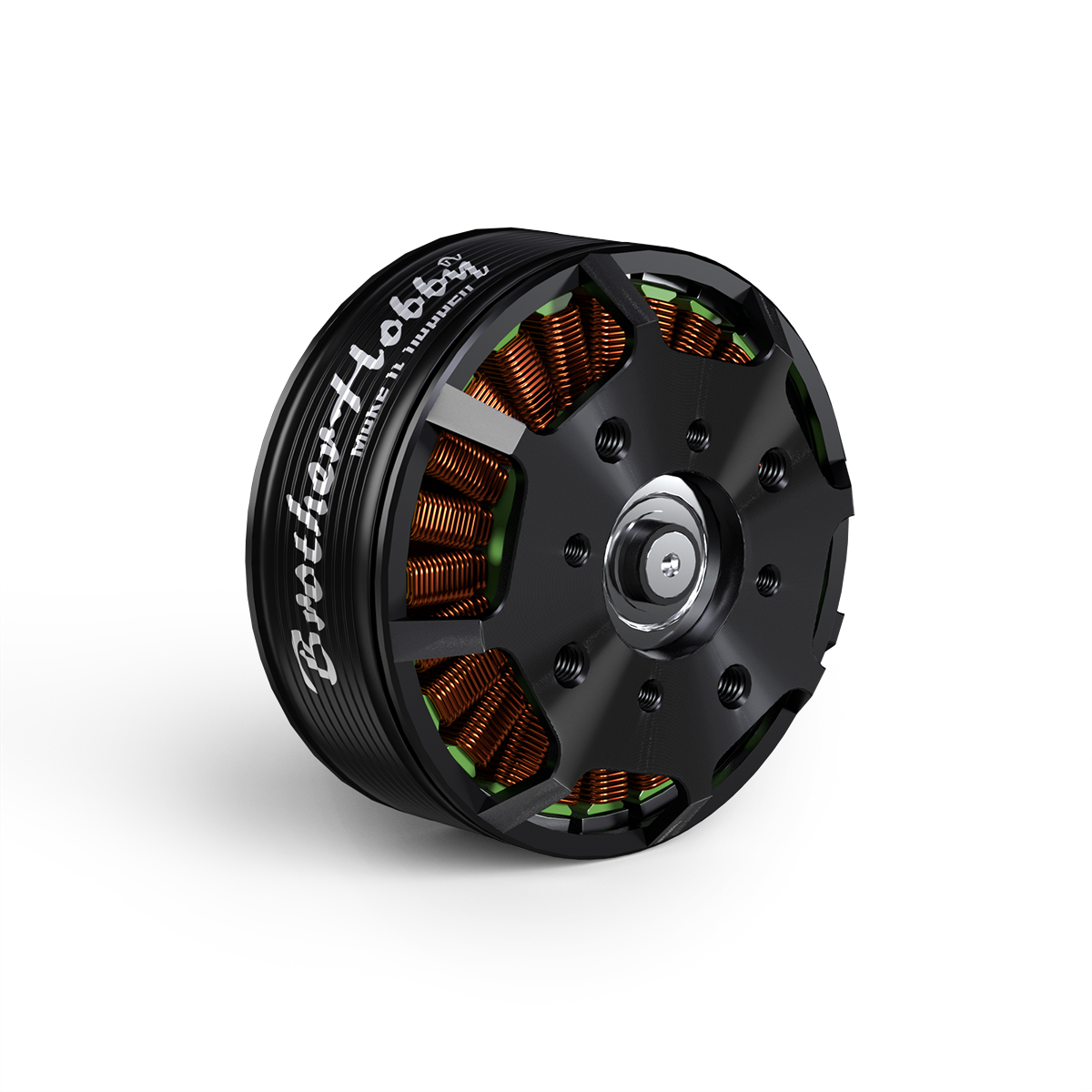

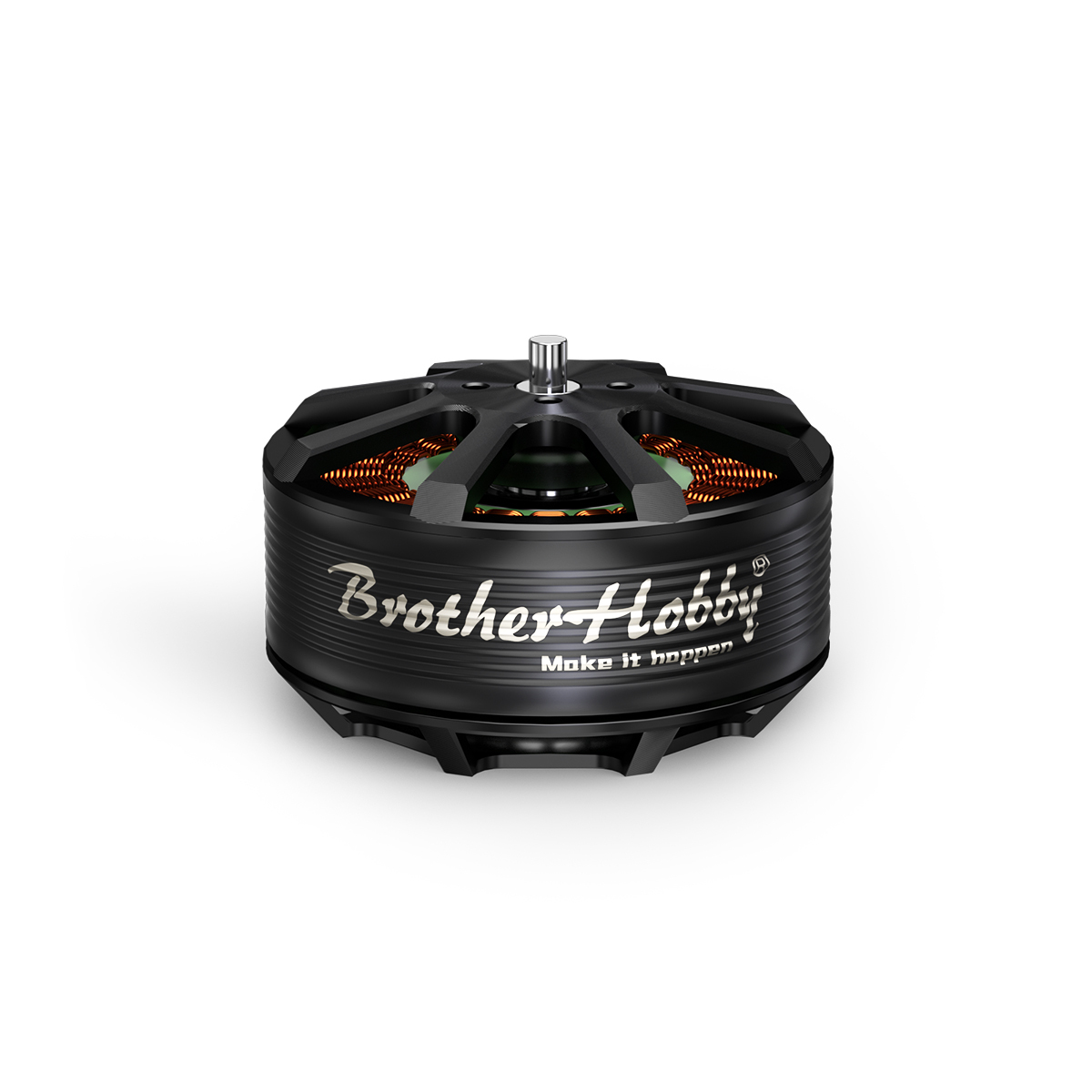

BrotherHobby MZ 5215 Motor

Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.
Specifications
KV:
206KV / 340KV
Base casing:
Al 7075
Stator:
15mm
Configuration:
24N22P
No.of Cells(Lipo):
6-12S
Bolt Pattern:
M4 (25X25mm) ; M3 (30X30mm)
Bearings:
Φ17*Φ6*6
Rotor:
N52H arc magnets
Weight:
314g
Wire AWG:
14AWG 60cm length
Bell cap:
Al 7075
Attributes
KV:
206
340
