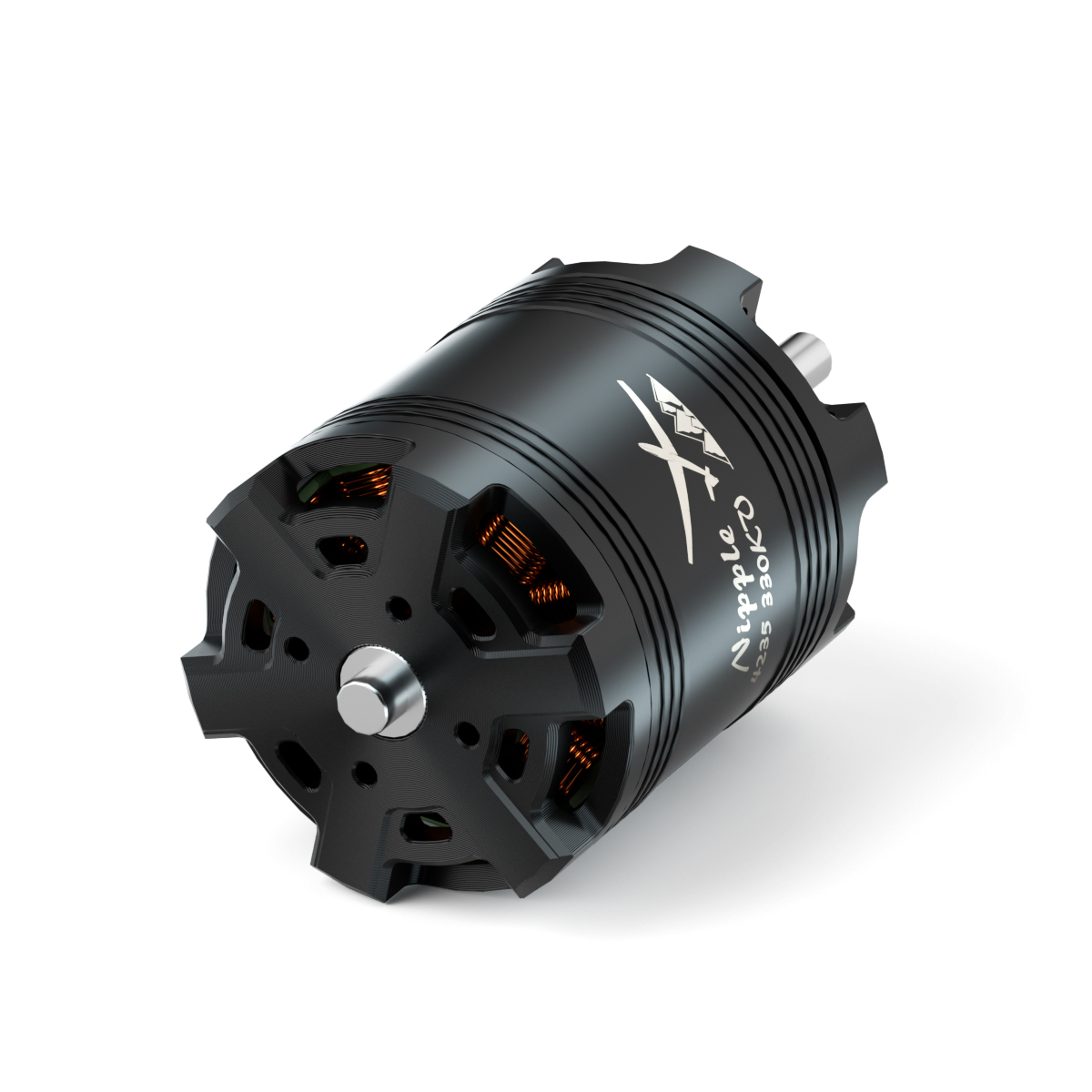

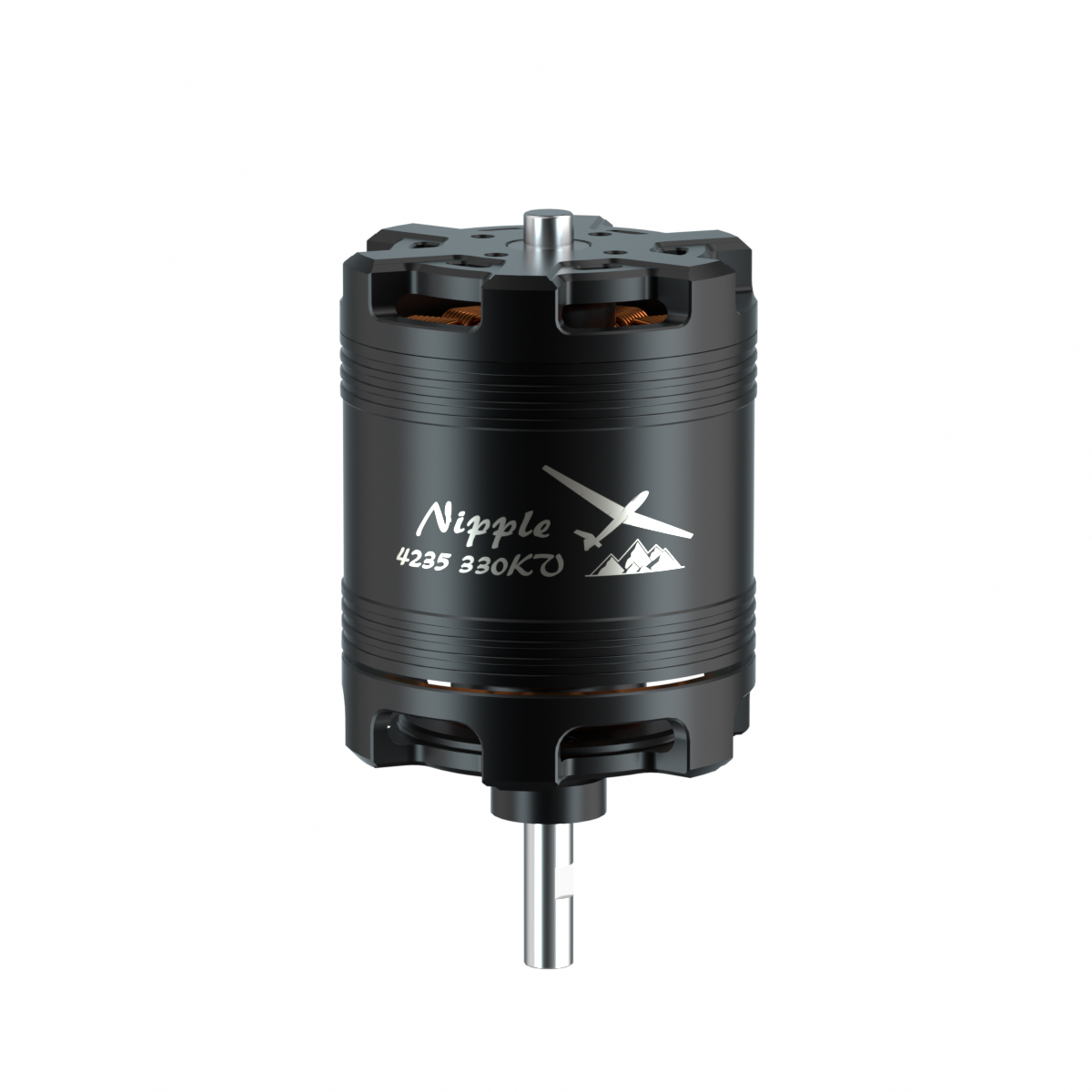

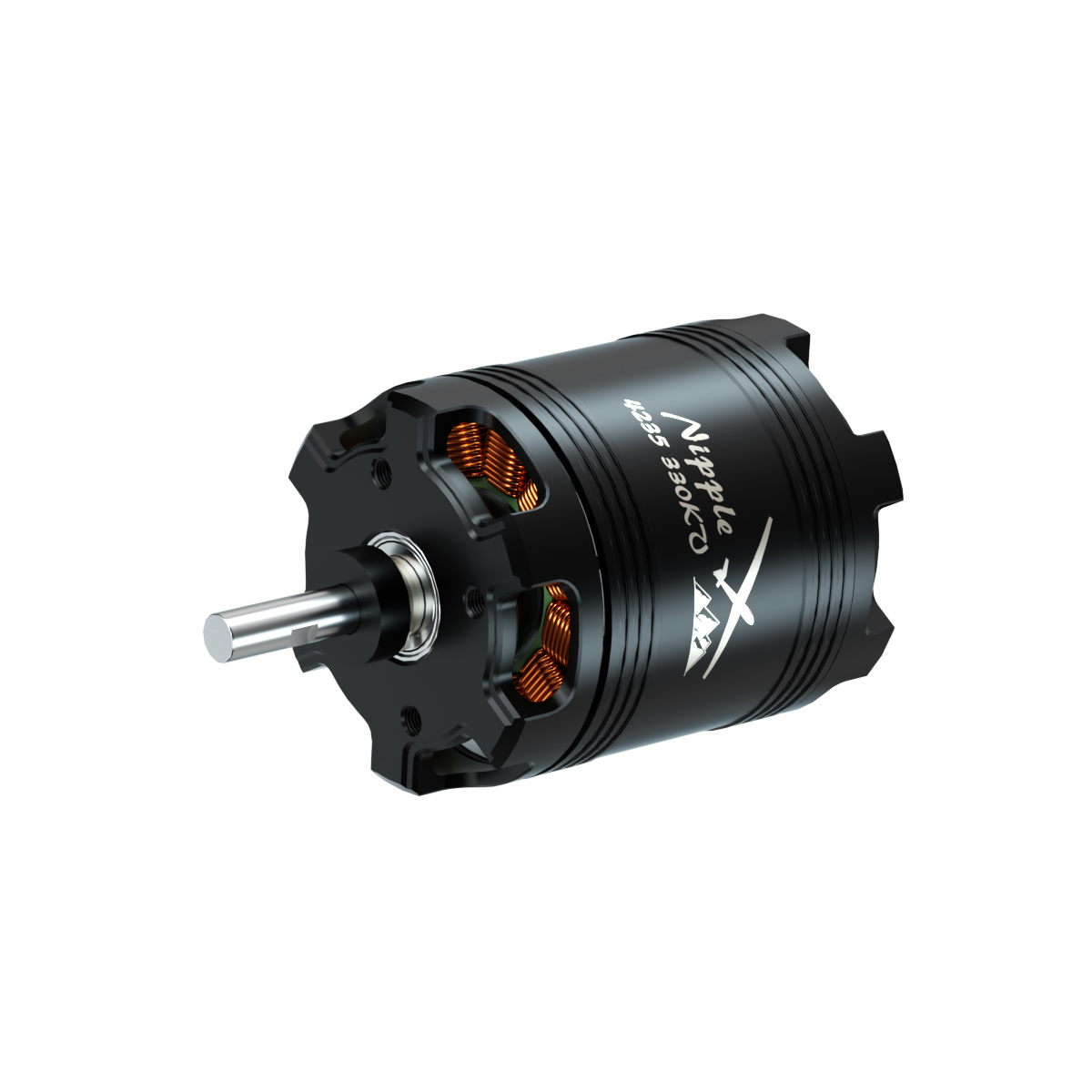

BrotherHobby Nipple 4235 230KV/330KV/360KV Motor(CW)

Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.
Specifications
KV:
230KV / 330KV / 360KV
Base casing:
Al 7075
Stator:
35mm
Configuration:
12N14P
Shaft:
SUS420
No.of Cells(Lipo):
8-12S
Bolt Pattern:
M4 (30X30mm)
Bearings:
Φ16*Φ8*5
Rotor:
N52H arc magnets
Weight:
445g
Wire AWG:
14AWG 10cm length
Bell cap:
Al 7075
Attributes
KV:
230
330
360
