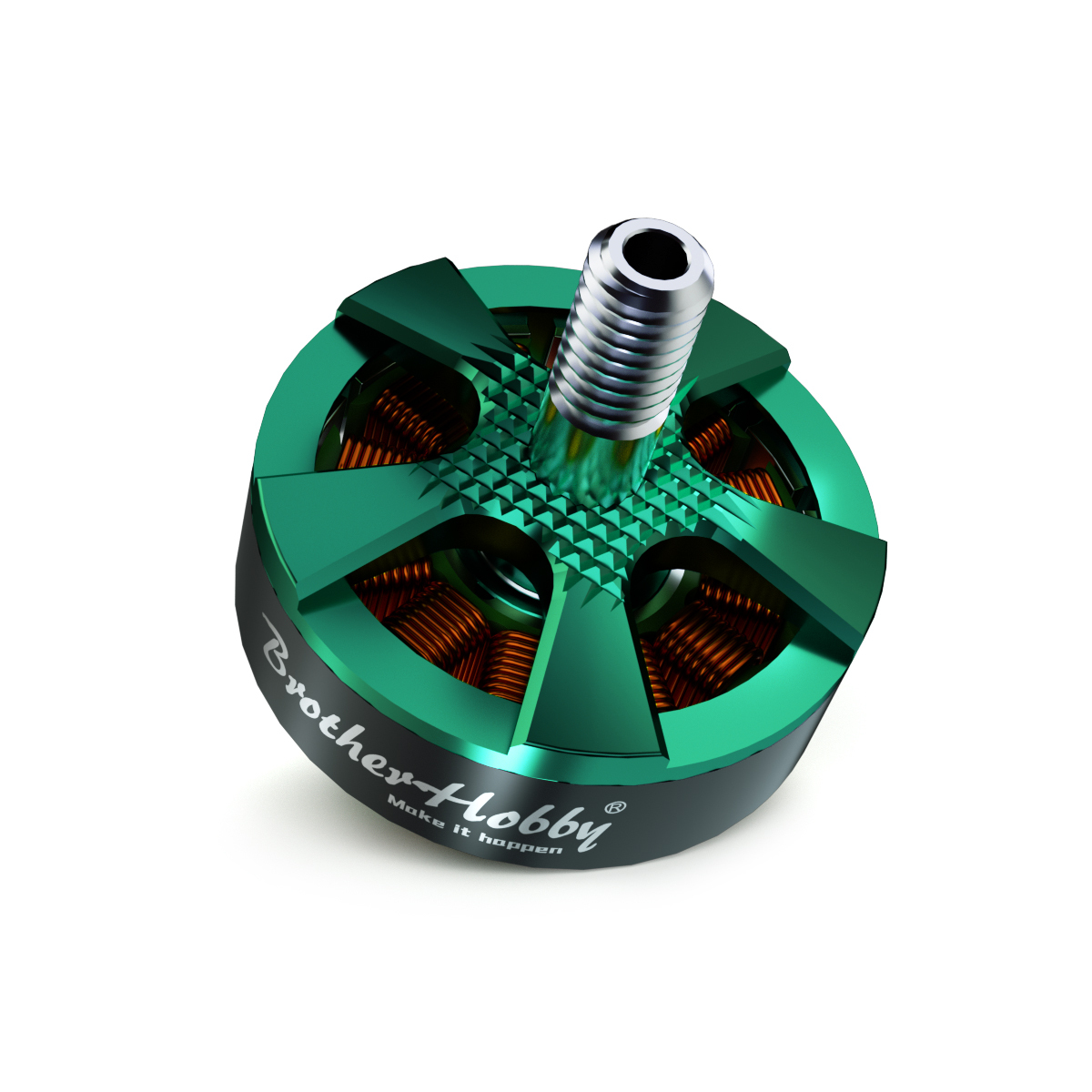

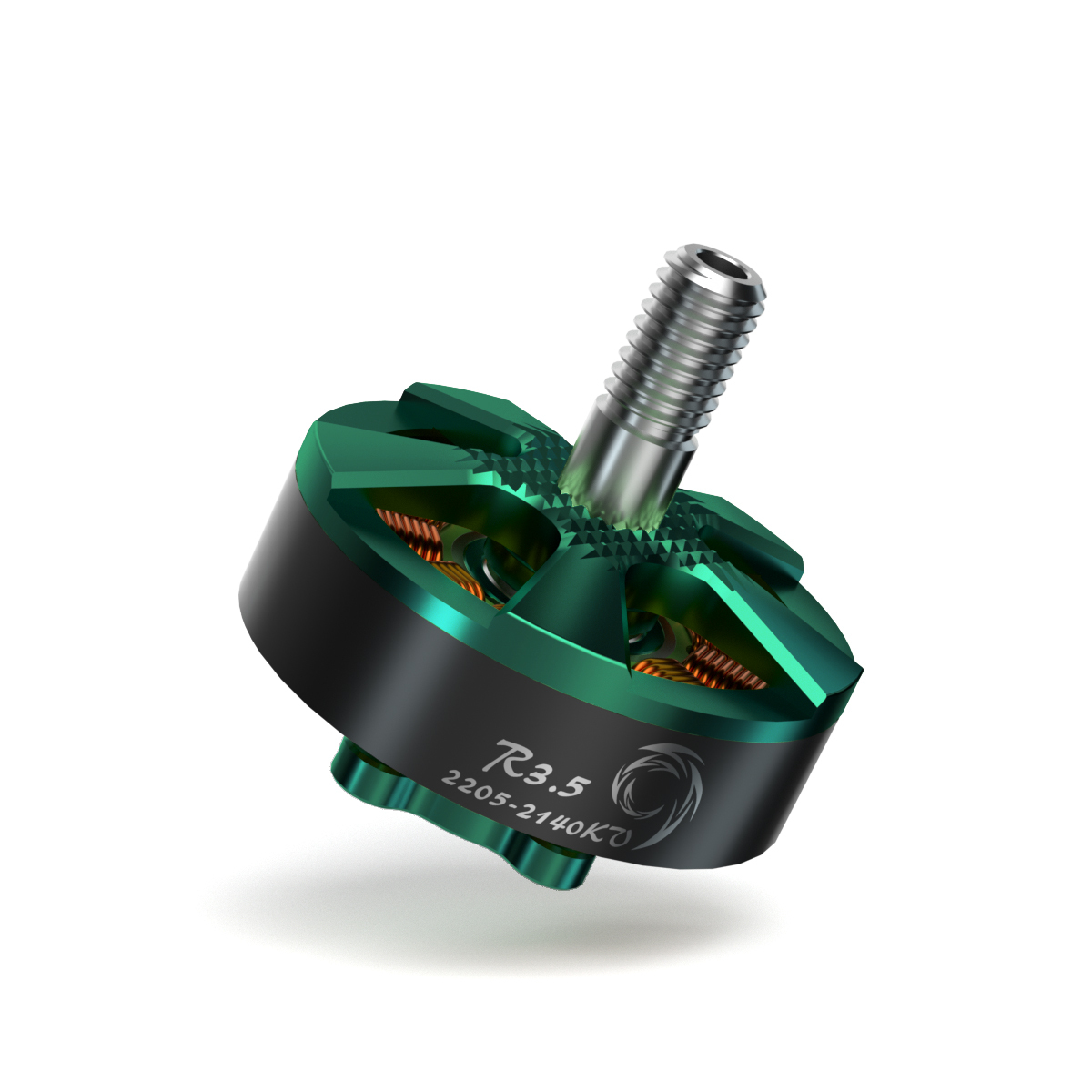

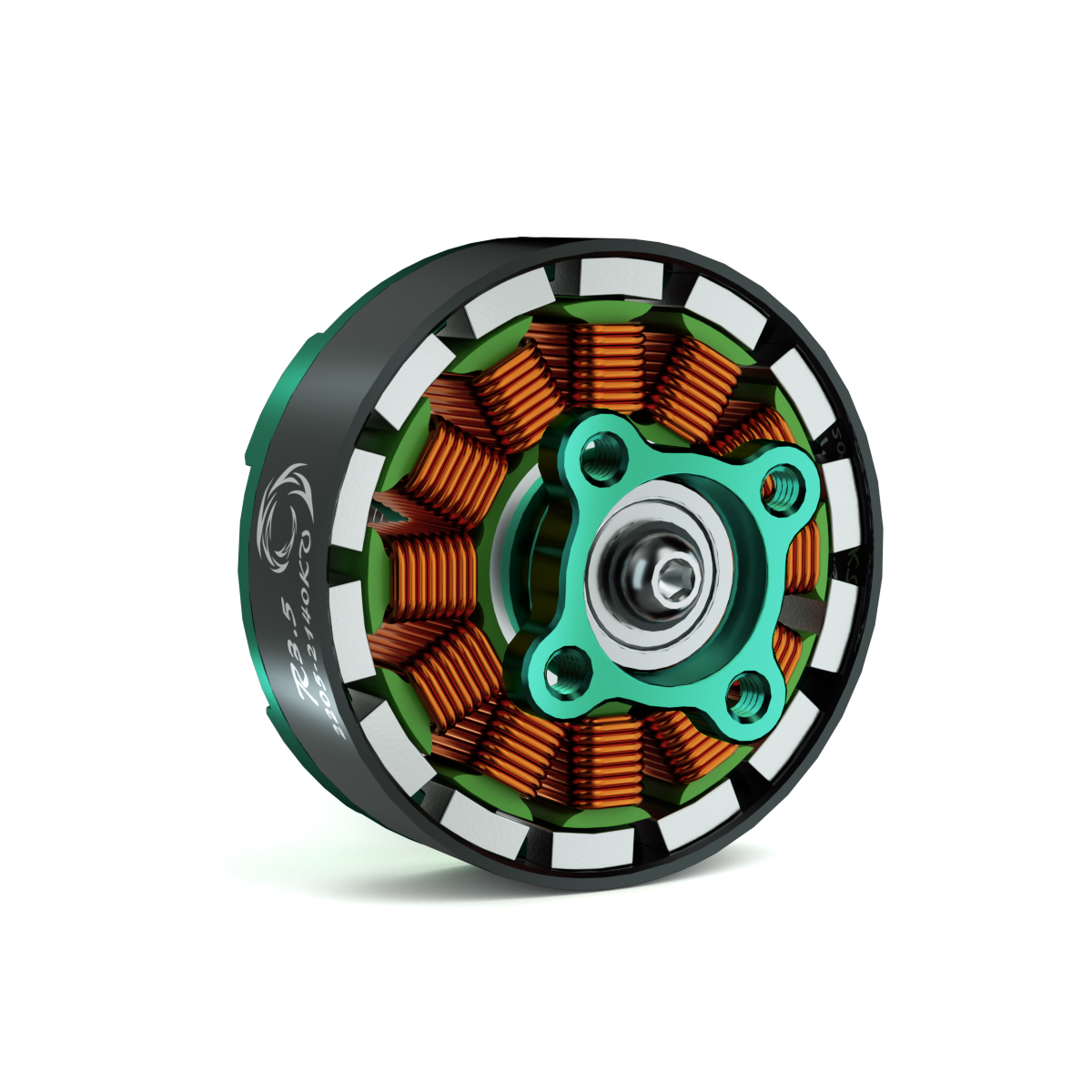

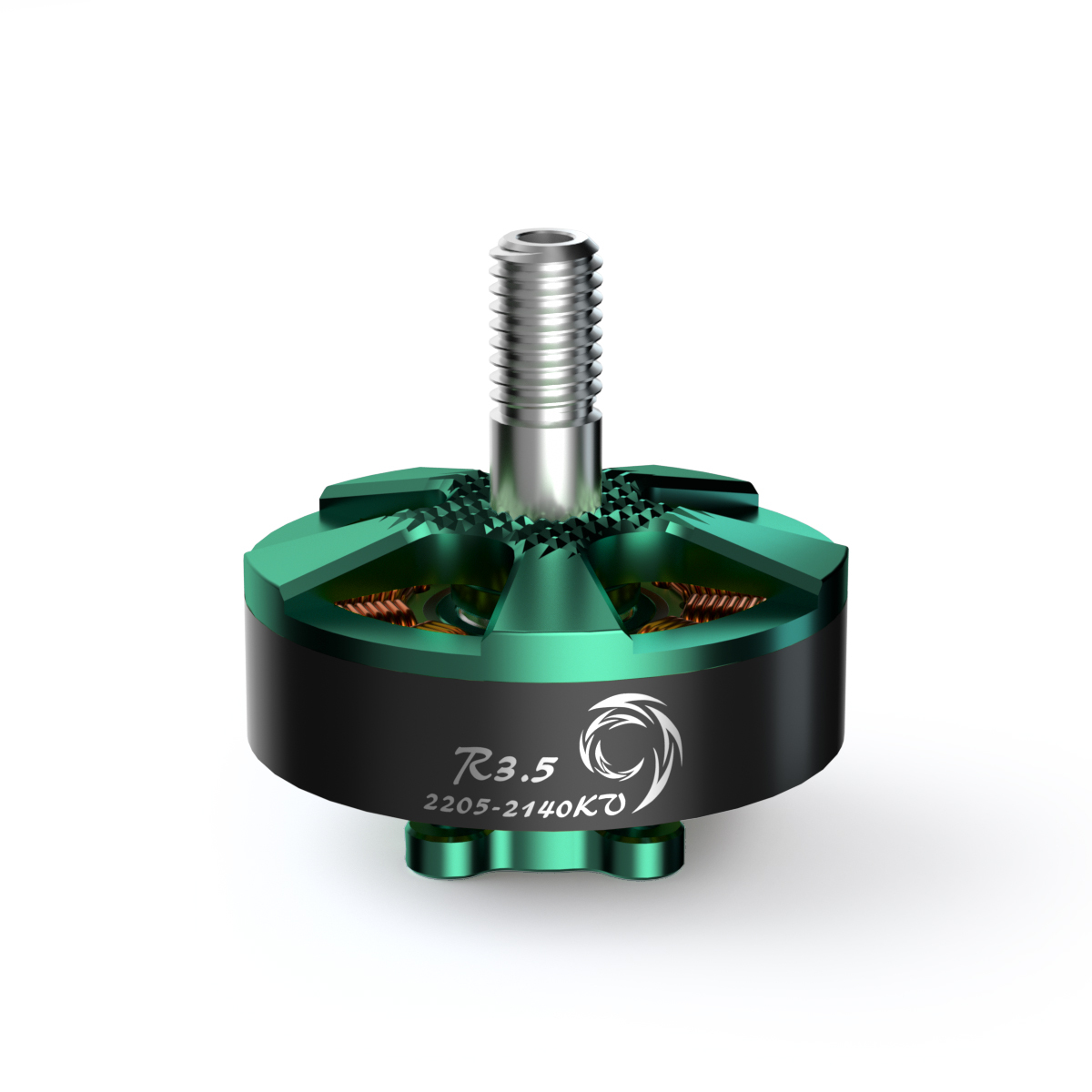

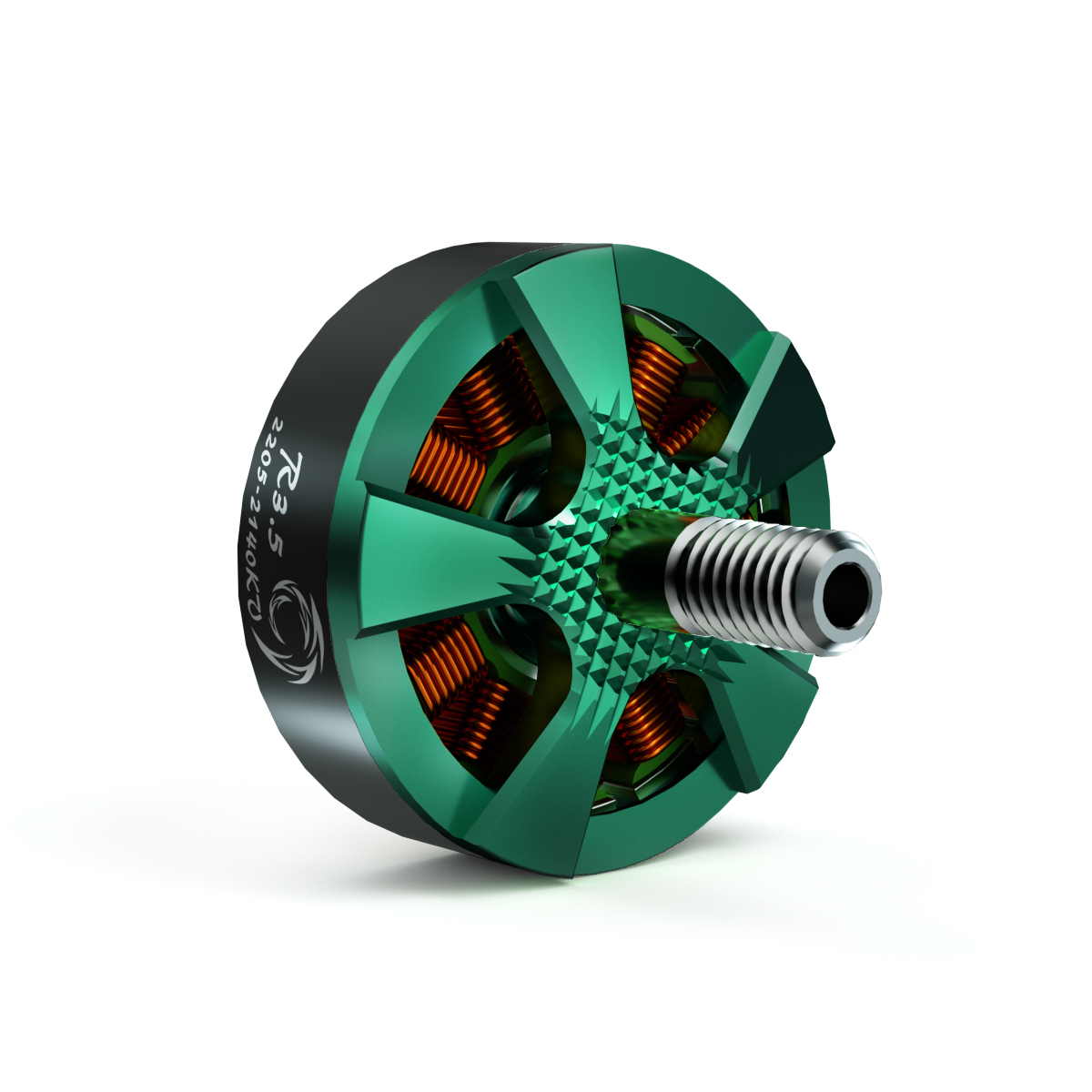

BrotherHobby R3.5 2205 Motor

Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.
Specifications
KV:
2140KV
Base casing:
Al 7075
Stator:
5mm
Configuration:
12N14P
Prop Adapter Shaft Thread:
M5
Shaft:
Titanium Alloy hollow shaft
No.of Cells(Lipo):
6S
Bolt Pattern:
M2 (12X12mm)
Bearings:
12X6X4
Rotor:
N52H arc magnets
Weight:
27g
Wire AWG:
20AWG 16cm length
Bell cap:
Al 7075
Attributes
KV:
2140
