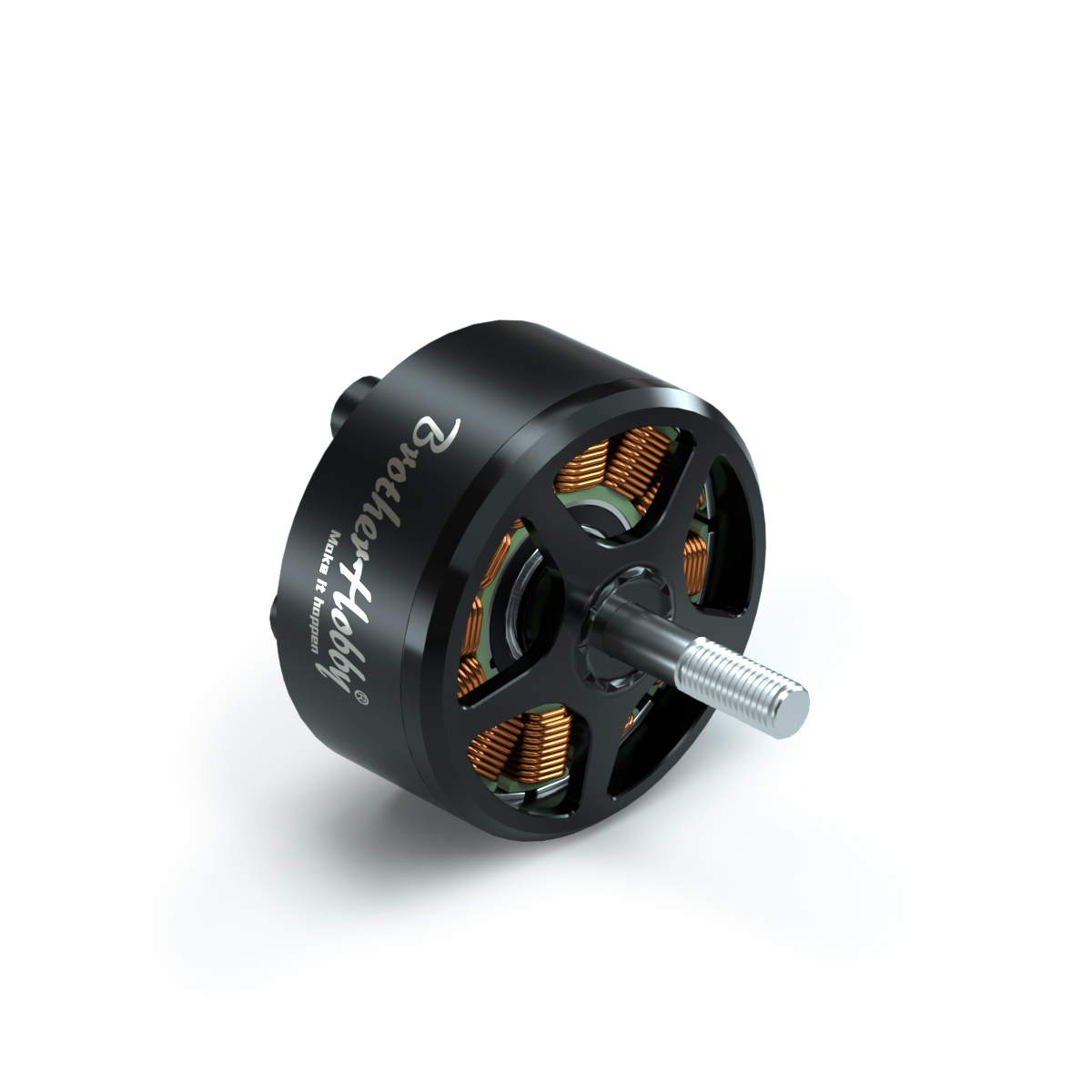

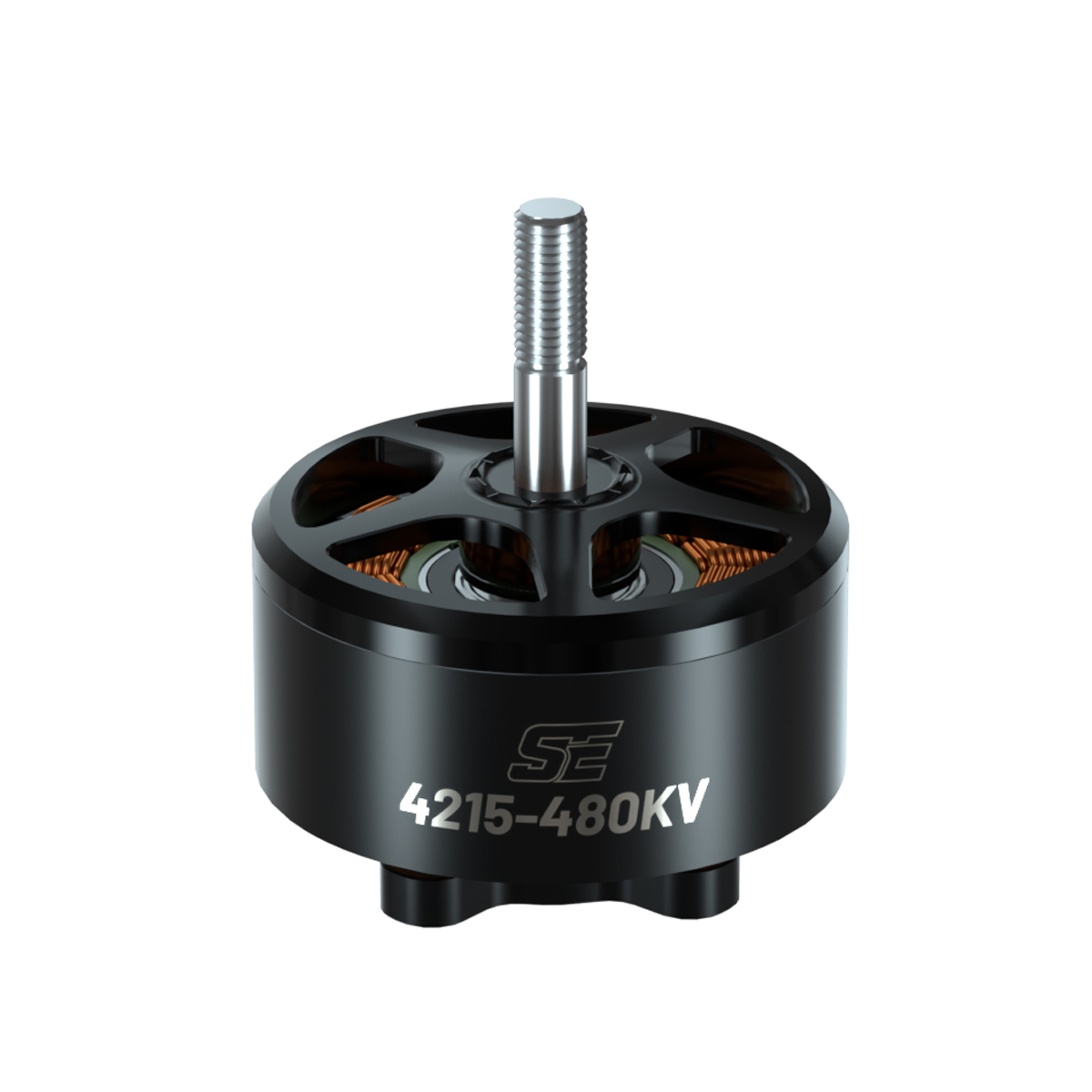

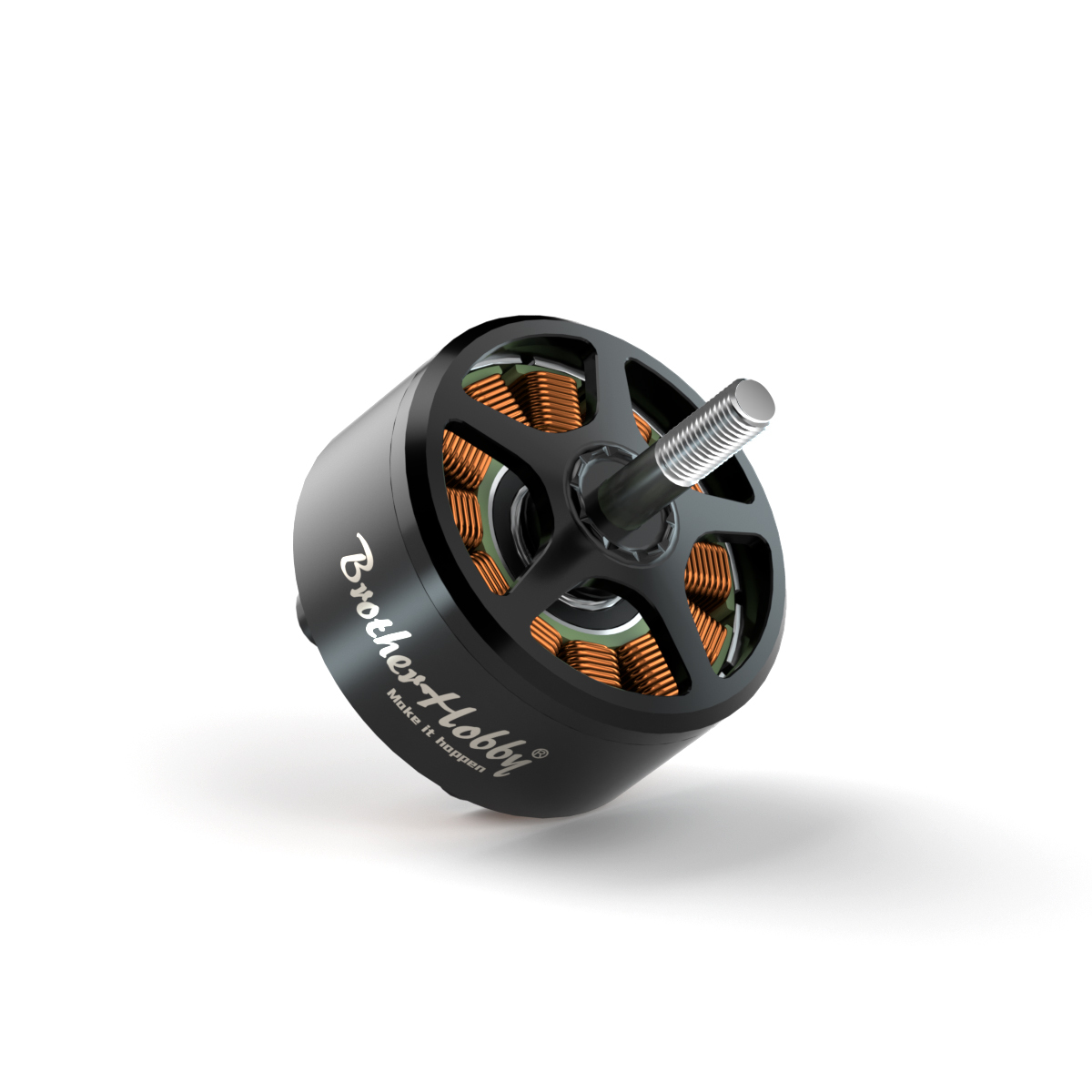

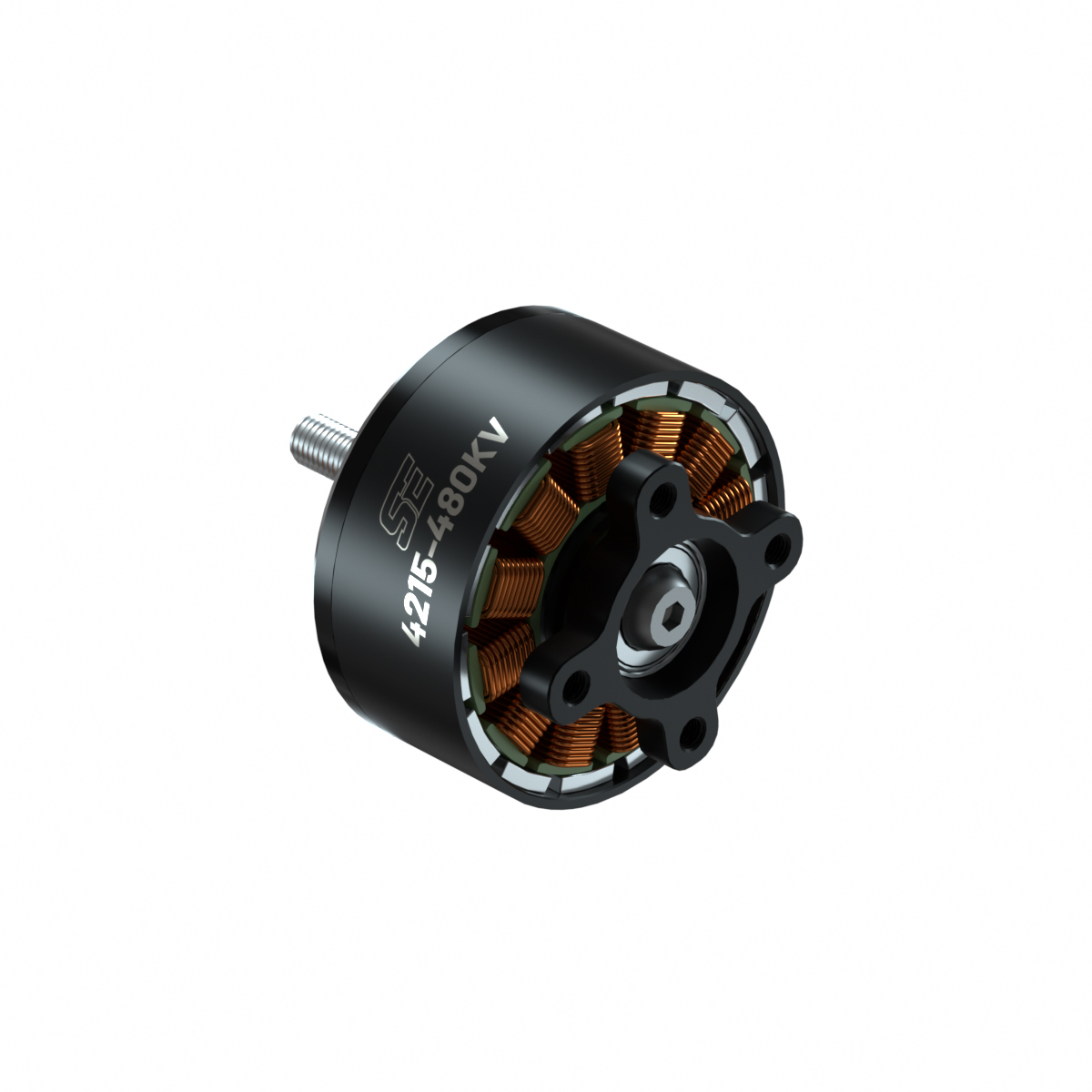

BrotherHobby SE 4215 480KV Motor(CW)
BrotherHobby SE 4215 480KV Motor(CW)
Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.
Specifications
KV:
480KV
Base casing:
Al 7075
Stator:
15mm
Configuration:
12N14P
Prop Adapter Shaft Thread:
M6
Shaft:
SUS420
No.of Cells(Lipo):
8S
Bolt Pattern:
M4 (30X30mm)
Bearings:
Φ16*Φ8*5
Rotor:
N52H arc magnets
Weight:
225g
Wire AWG:
16AWG 75cm length
Bell cap:
Al 7075
Attributes
KV
:
480
