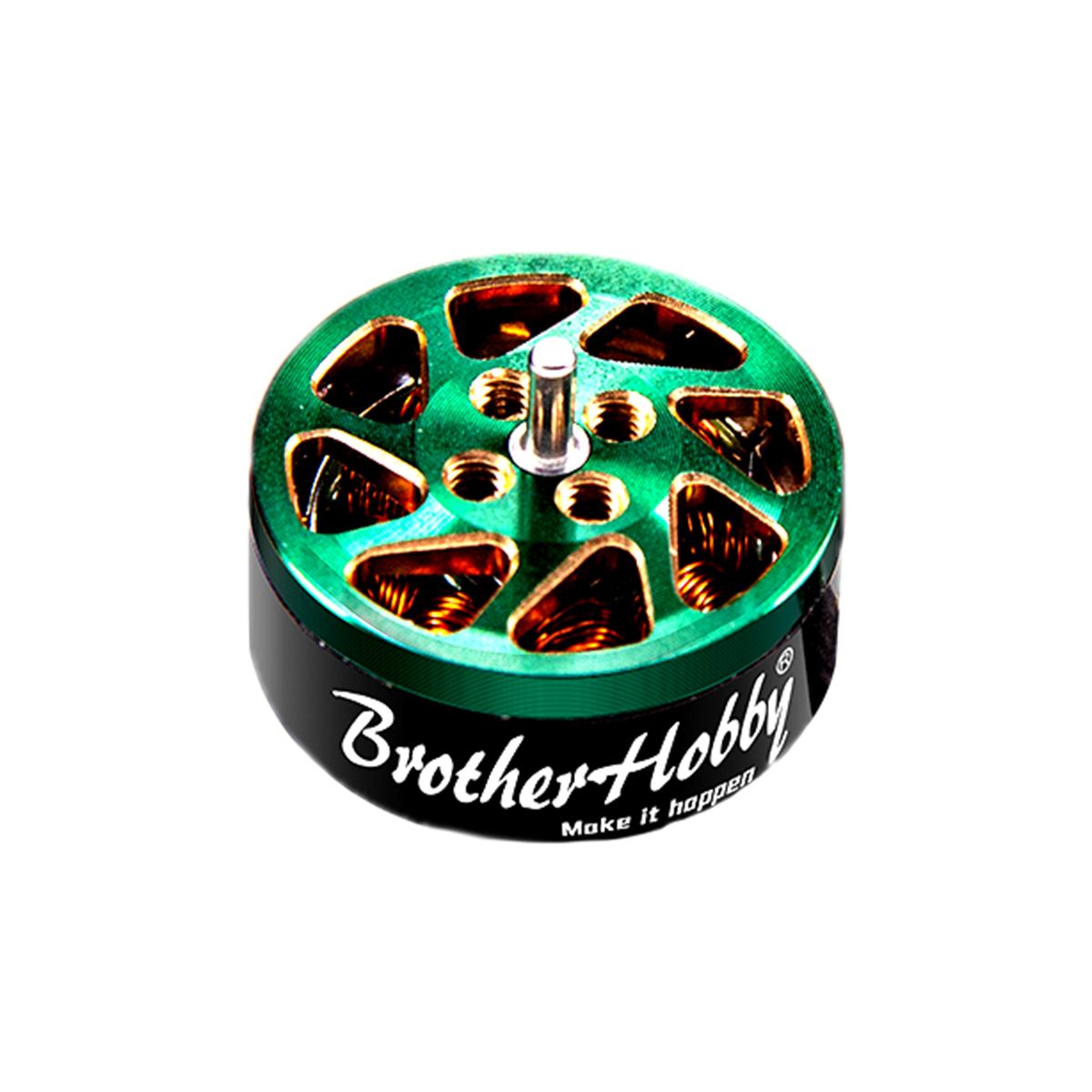

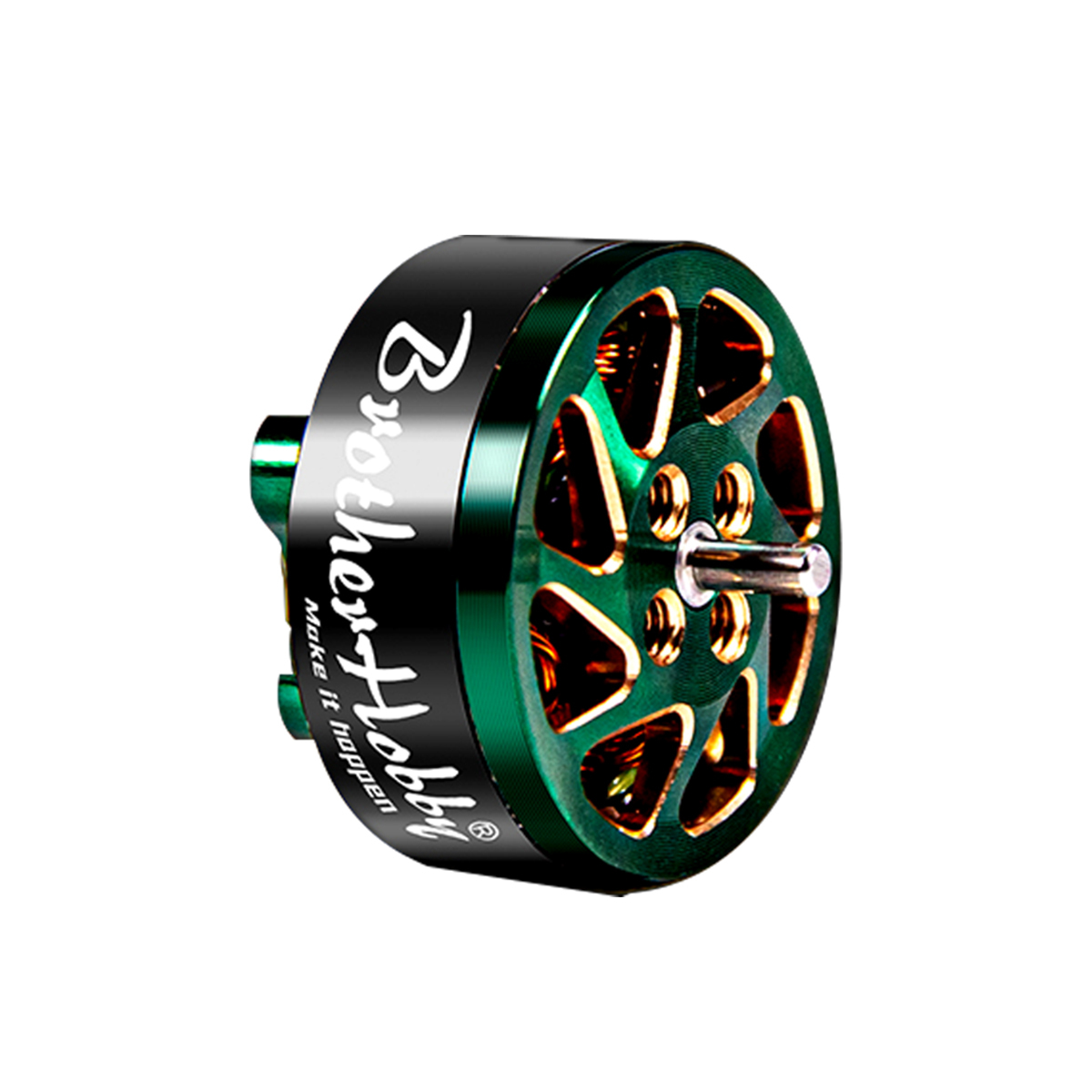

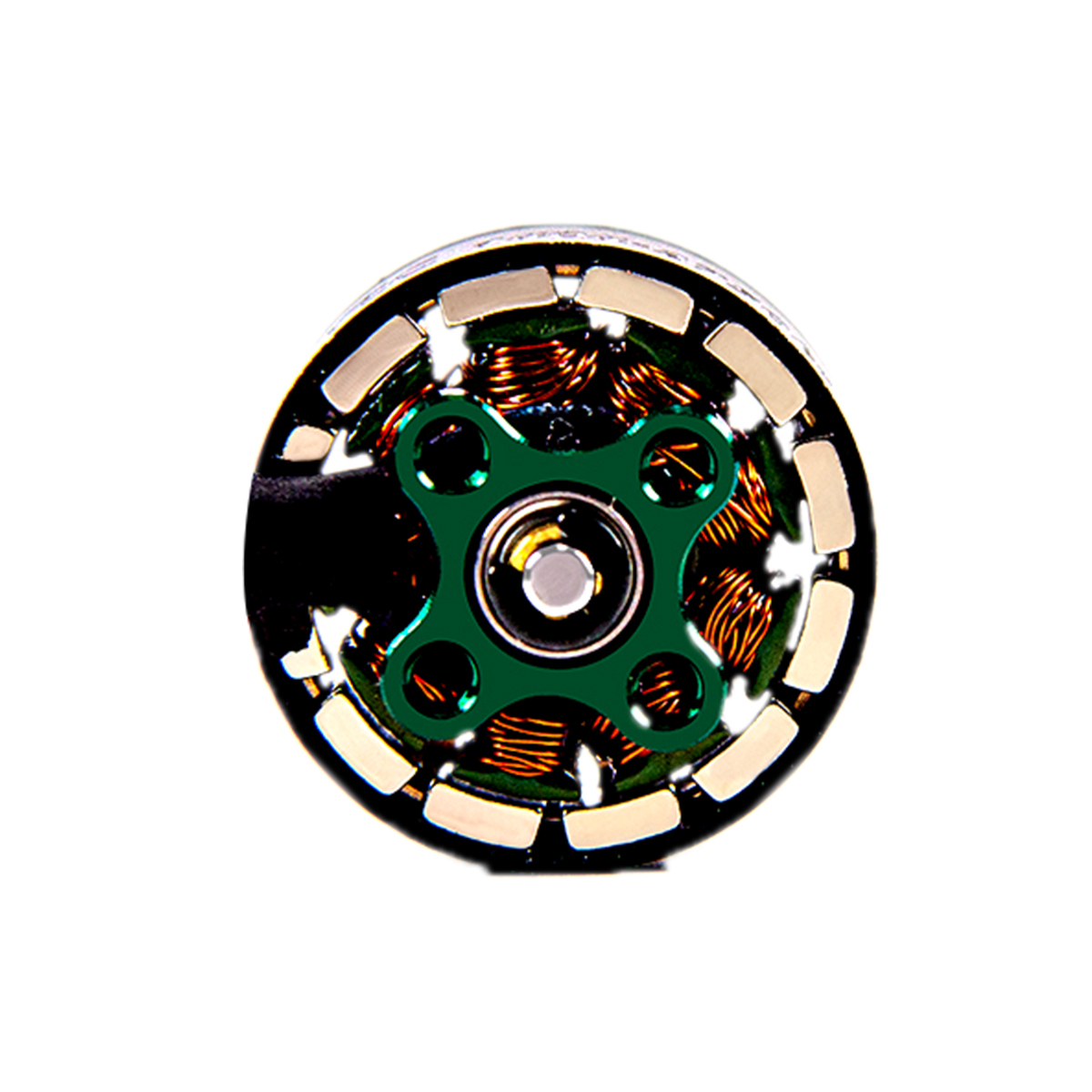

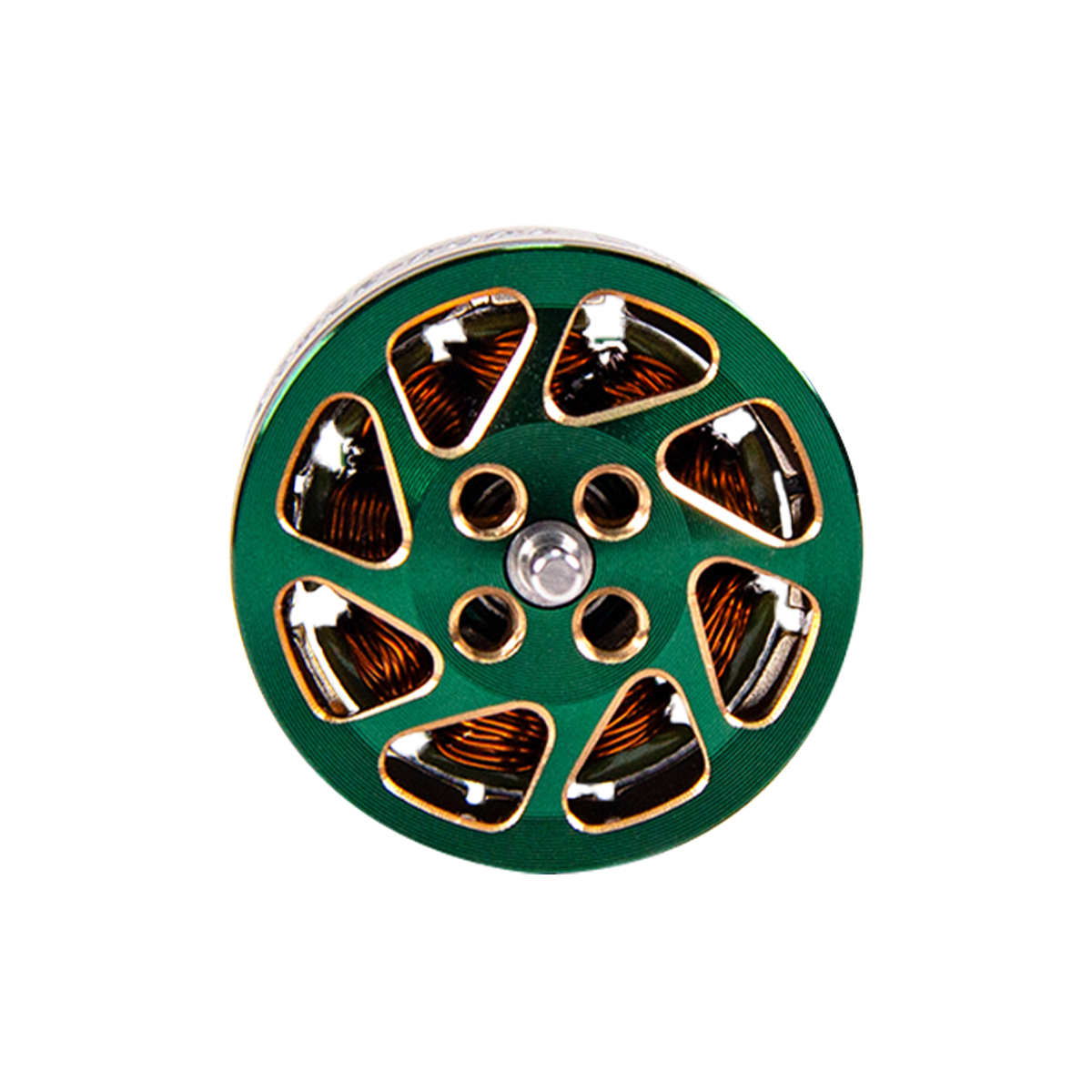

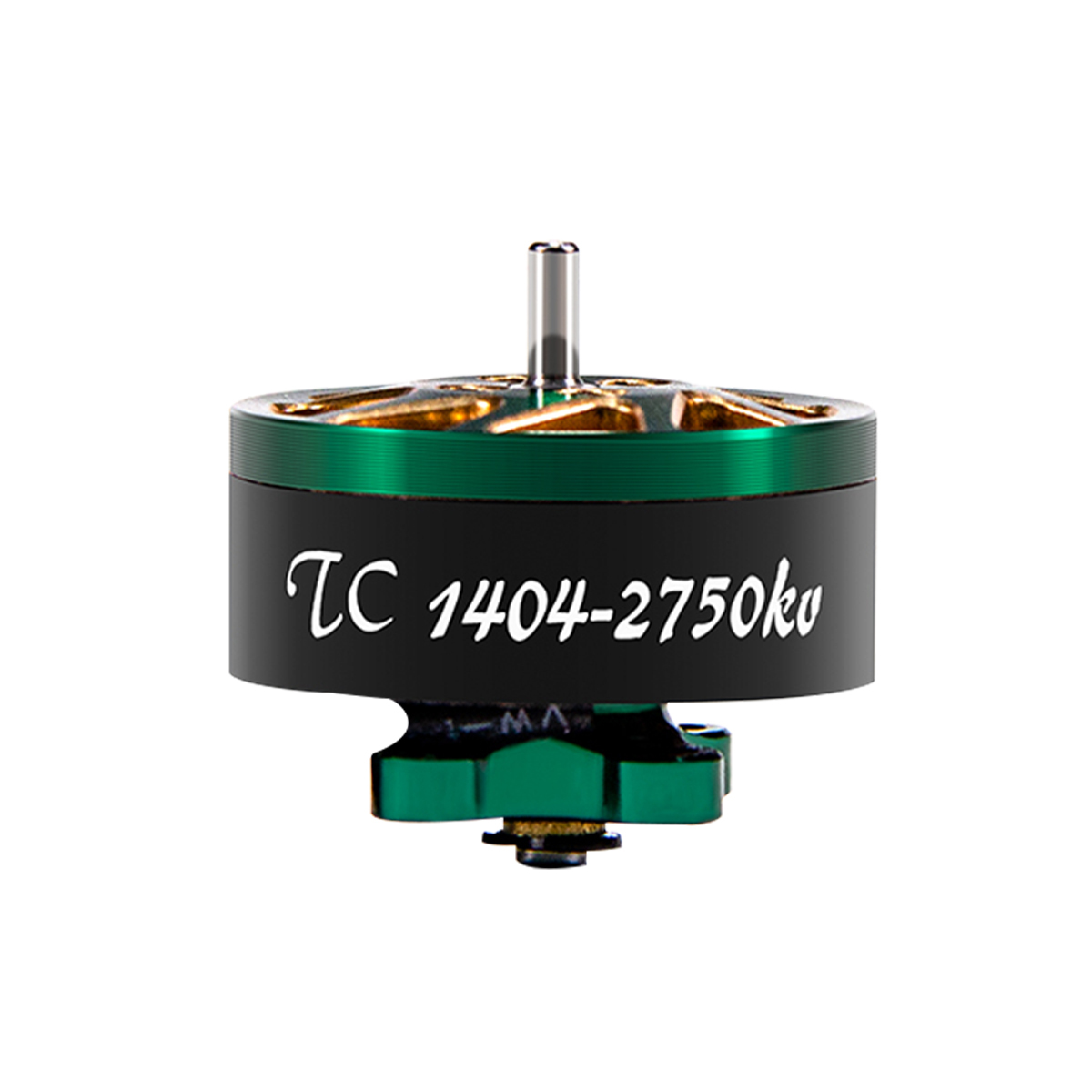

BrotherHobby TC 1404 Ultralight Motor

Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.
Specifications
KV:
2750, 3800, 4600
Base casing:
Al 7075
Stator:
4mm
Prop Adapter Shaft Thread:
M1.5
Configuration:
9N12P
Shaft:
SUS 420
No.of Cells(Lipo):
4-6S
Bolt Pattern:
M2 9X9
Bearings:
5x2x2.5
Rotor:
N52H arc magnets
Weight:
9g
Wire AWG:
30AWG 10cm length
Bell cap:
Al 7075
Attributes
KV:
2750
3800
4600
