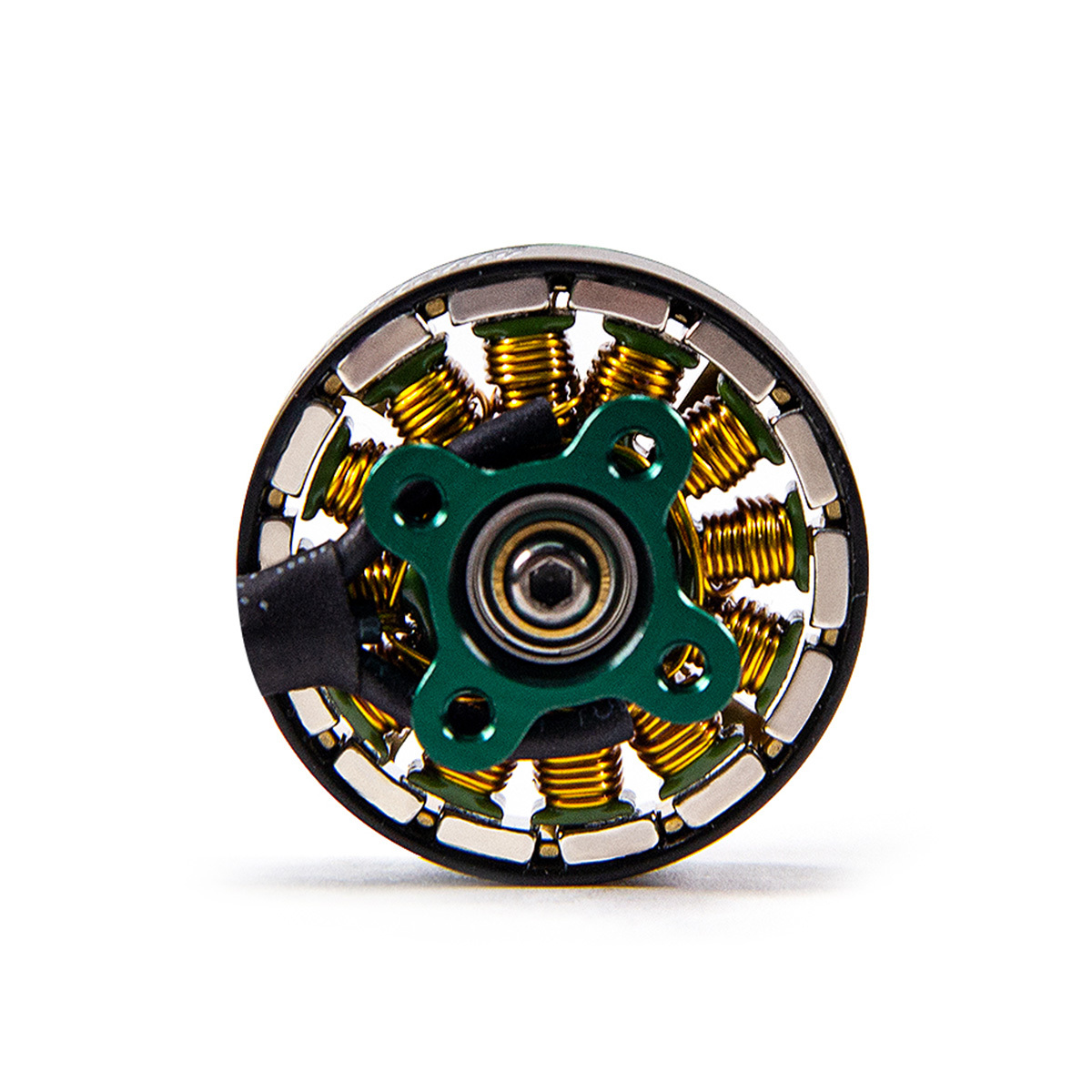

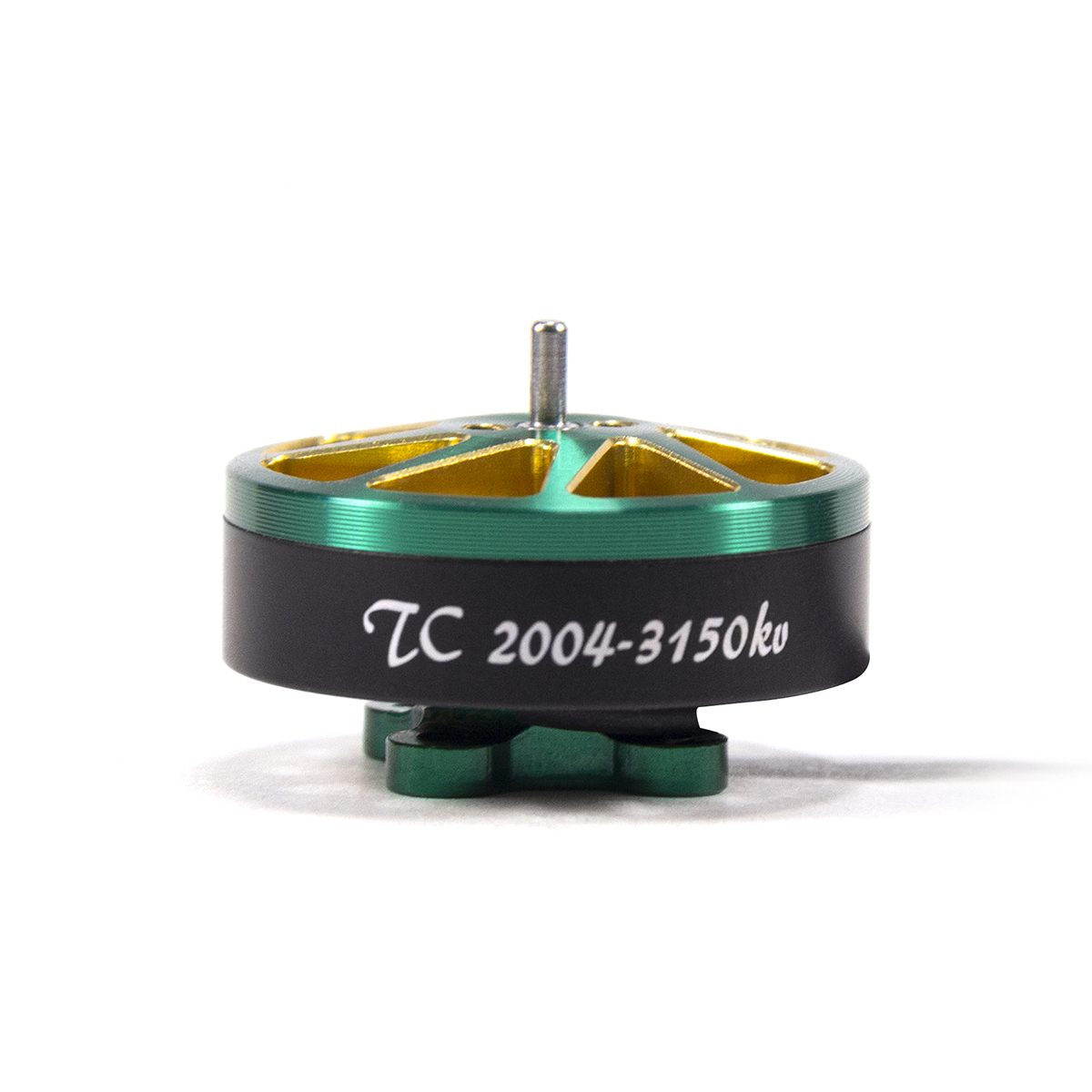

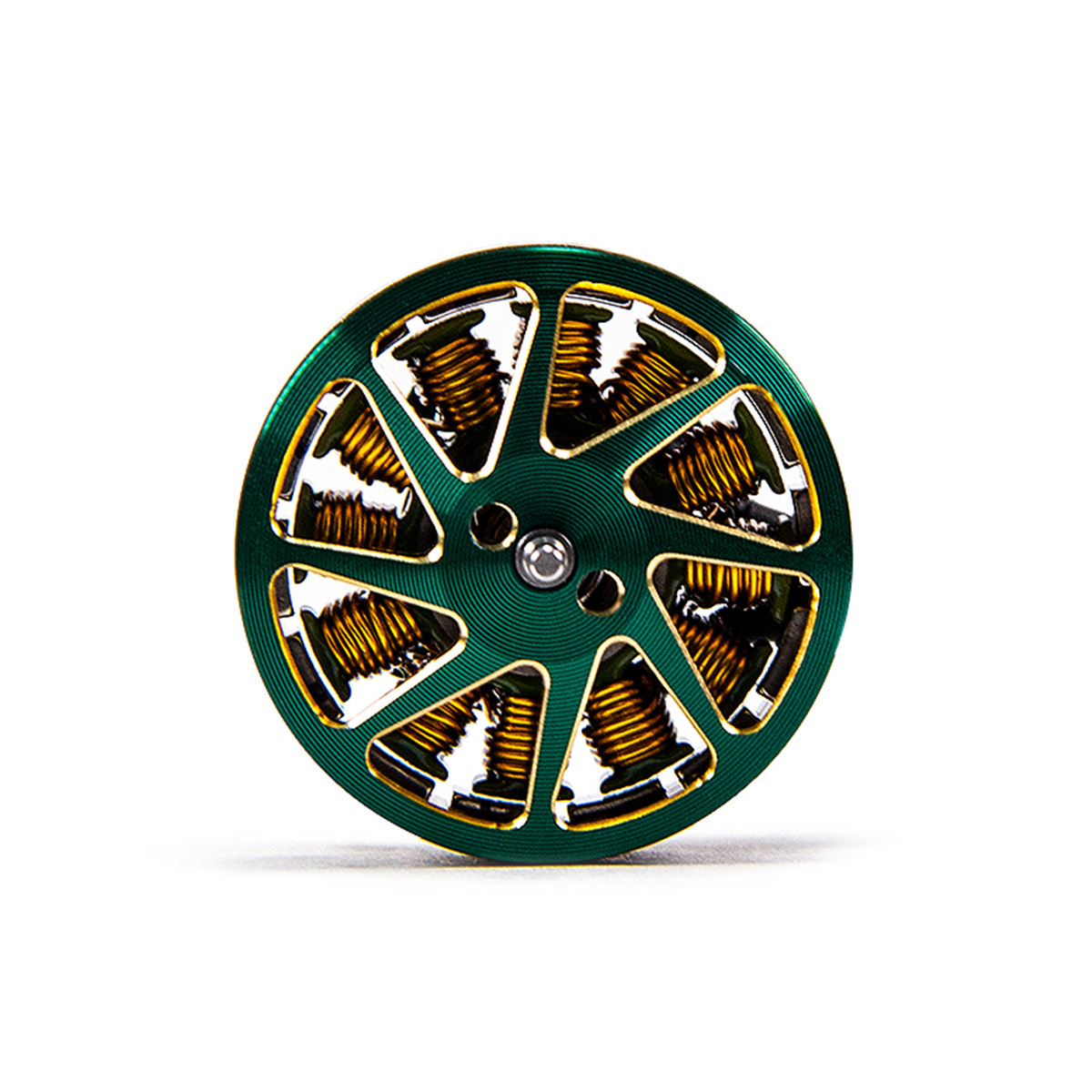

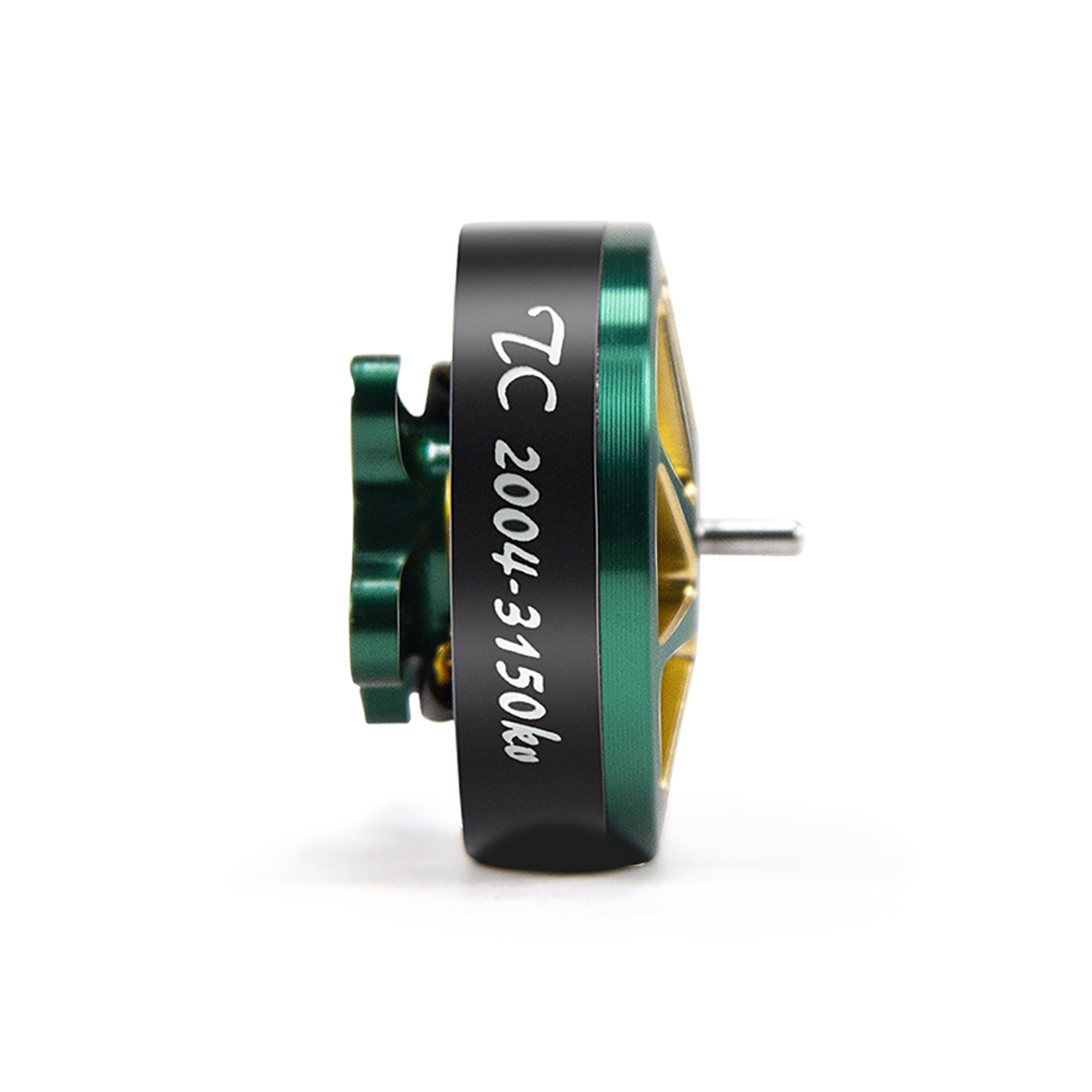

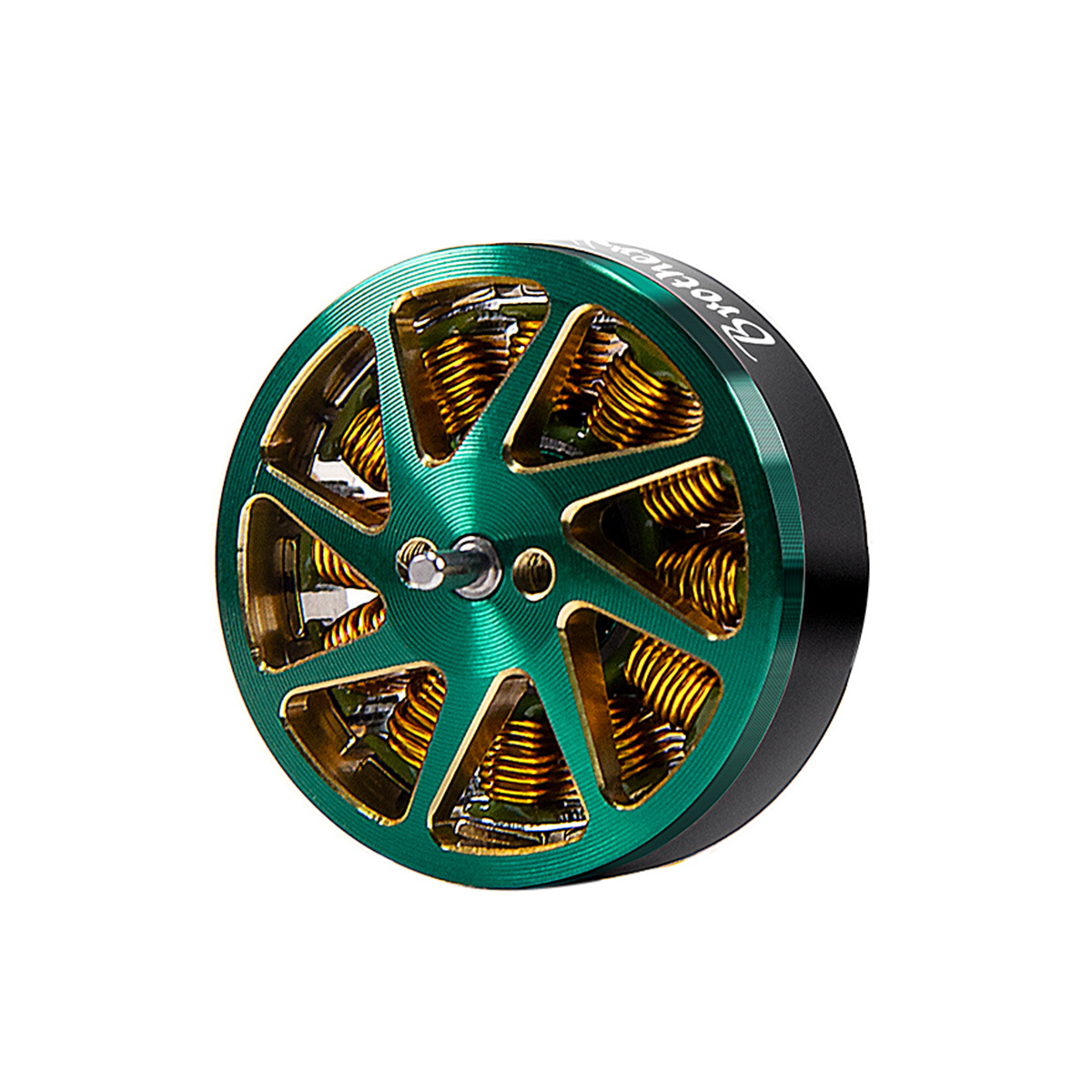

BrotherHobby TC 2004 Ultralight Motor

Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.

Specifications

KV:

1700, 1950, 2100, 3150

Base casing:

Al 7075

Stator:

4mm

Prop Adapter Shaft Thread:

M1.5

Configuration:

12N14P

Shaft:

SUS 420

No.of Cells(Lipo):

4-6S

Bolt Pattern:

M2 9X9

Bearings:

7x3x3

Rotor:

N52H arc magnets

Weight:

14g

Wire AWG:

24AWG 16cm length

Bell cap:

Al 7075

Variations

Edit selections

KV: 1700

1700

1950

2100

3150

Select variations and quantity

KV: 1700

The min. inquiry quantity is 0. Add 0 more to continue.

1700

1950

2100

3150

Subtotal

GET A QUOTE
