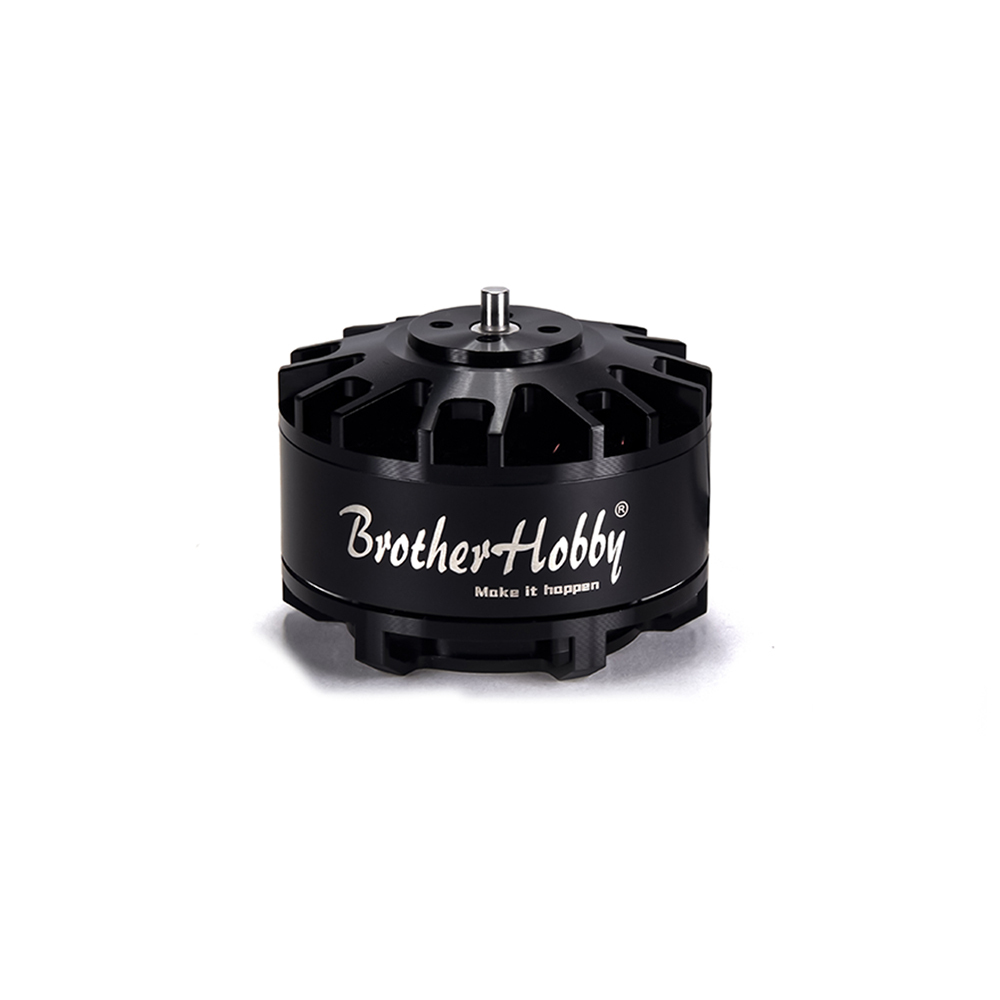

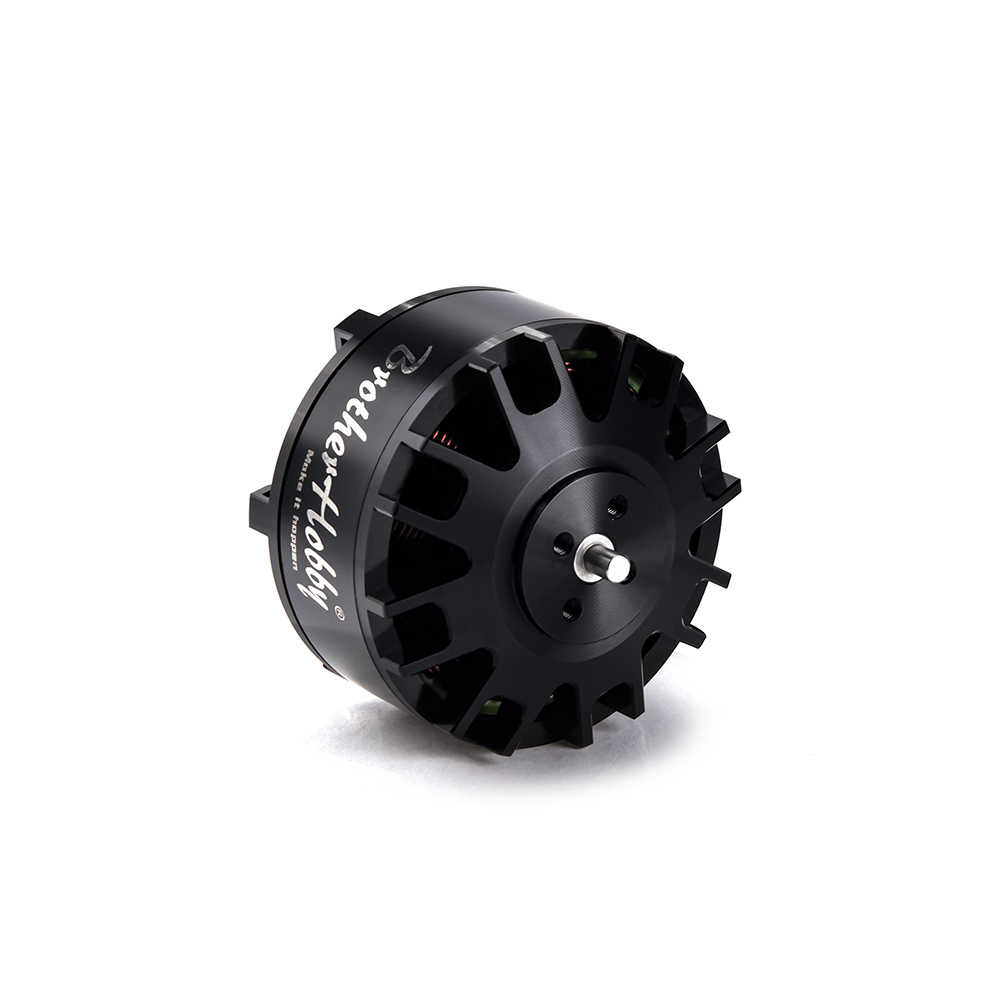

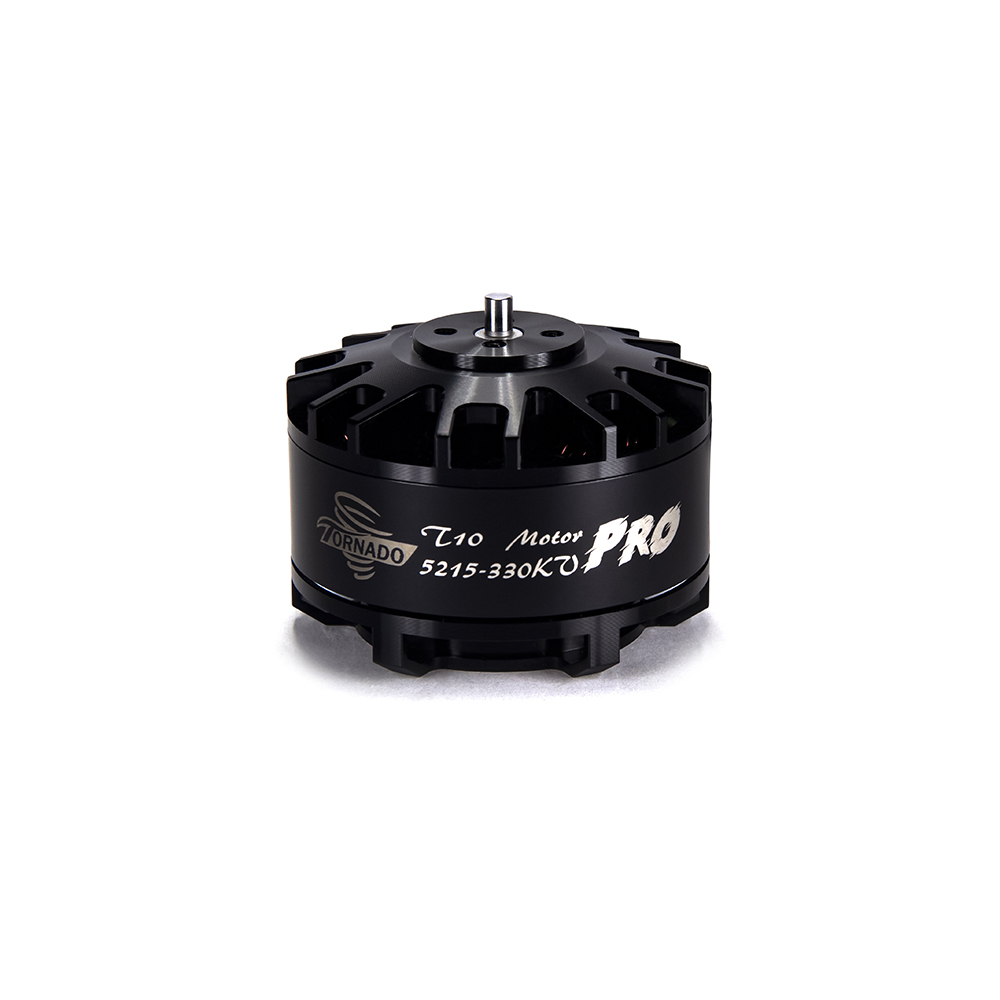

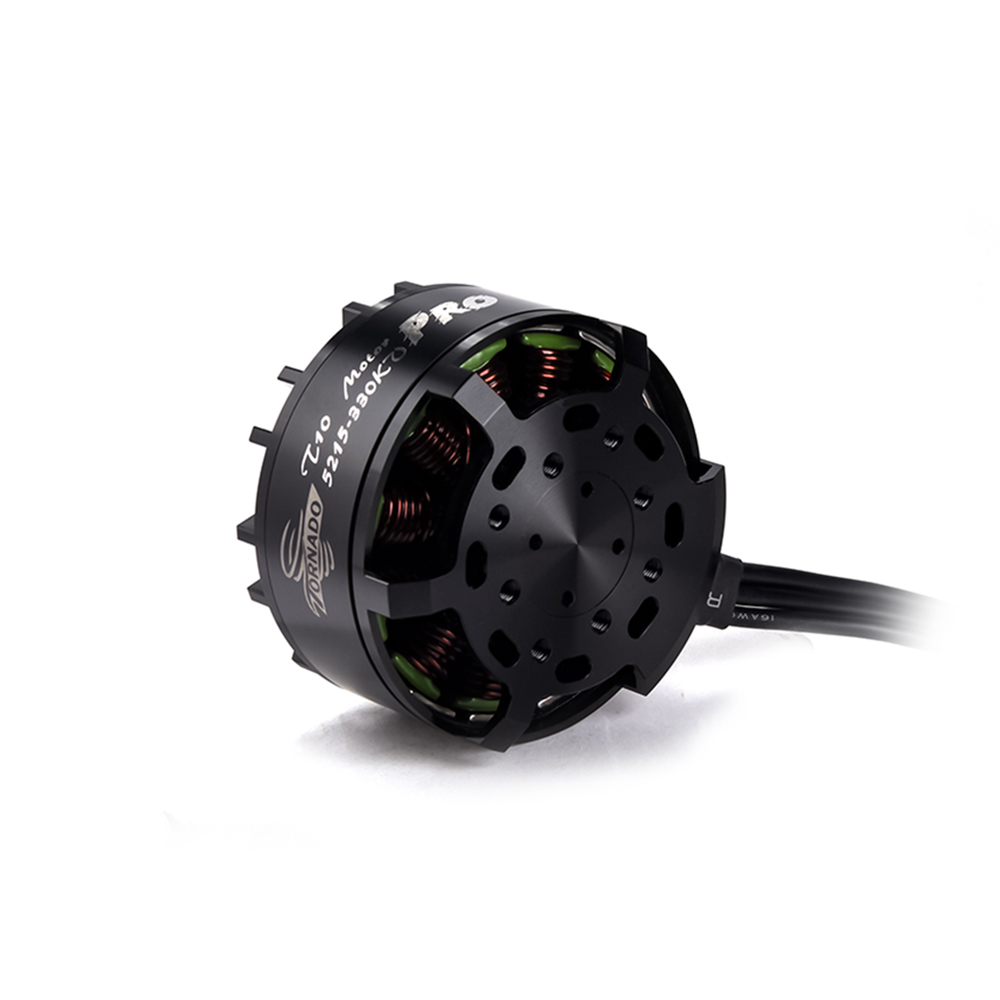

BrotherHobby Tornado T10 5215 Pro Motor X Class

Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.

Specifications

KV:

170KV/330KV/380KV/500KV

Base casing:

Al 7075

Stator:

15mm

Configuration:

12N14P

Prop Adapter Shaft Thread:

No.of Cells(Lipo):

6-12S

Bolt Pattern:

M4 (25X25mm);M4(30X30mm)

Bearings:

Φ15*Φ6*5

Rotor:

N52H arc magnets

Weight:

352g with 90cm SR wires

Wire AWG:

16AWG 90cm length

Bell cap:

Al 7075
