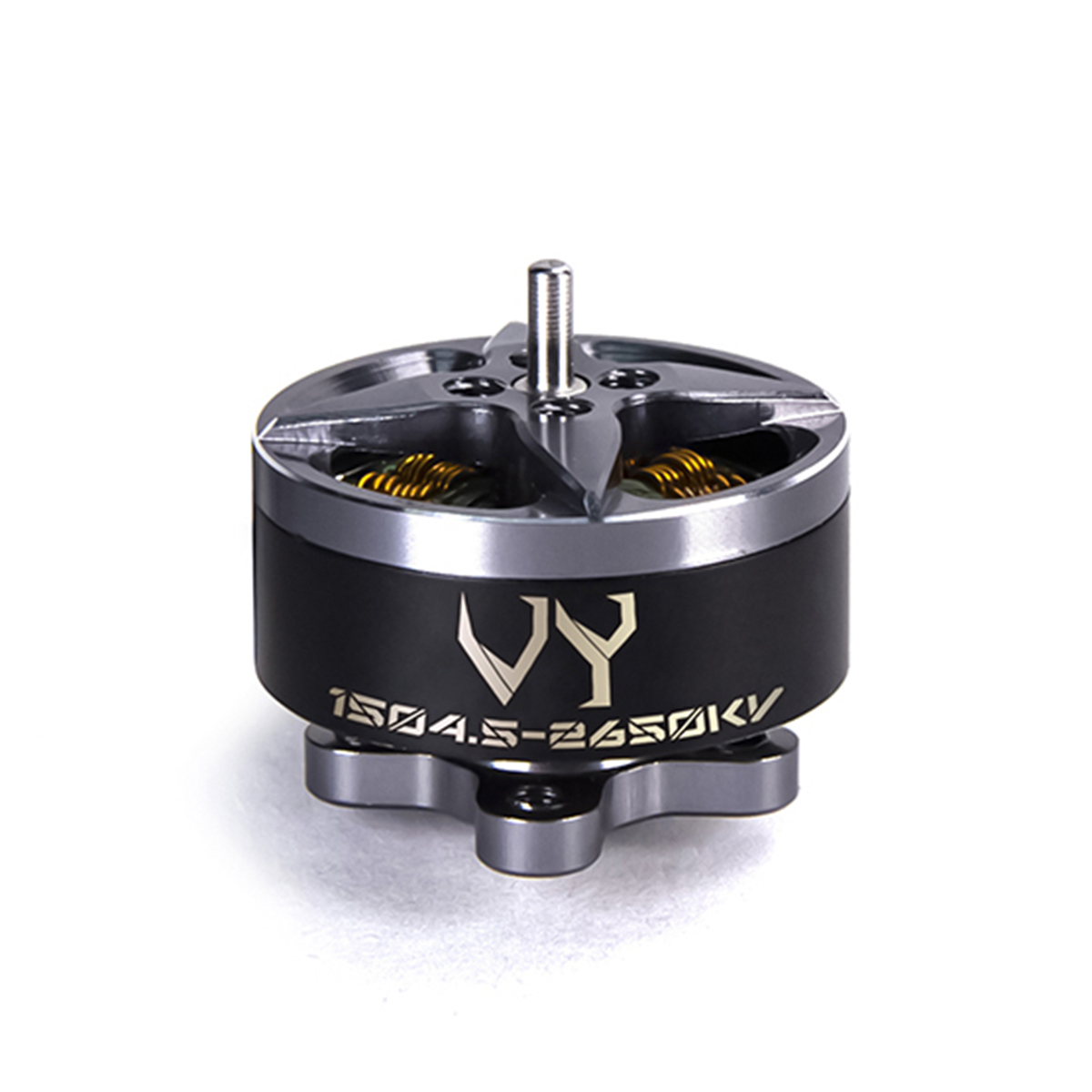

BrotherHobby VY 1504.5 Motor (CW)

Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.
Specifications
KV:
2650KV(4S)/2950KV(6S)/3950KV(4S)
Base casing:
Al 7075
Stator:
4.5mm
Configuration:
12N14P
Prop Adapter Shaft Thread:
M1.5
Shaft:
Titanium Alloy hollow shaft
No.of Cells(Lipo):
3-4S
Bolt Pattern:
M2 (12X12mm)
Bearings:
Φ5*Φ2*2.5
Rotor:
N52H arc magnets
Weight:
12g
Wire AWG:
24AWG 16cm length
Bell cap:
Al 7075
Variations
Edit selections
KV: 2650
2650
2950
3950
Select variations and quantity
KV: 2650
The min. inquiry quantity is 0. Add 0 more to continue.
2650
-
2950
-
3950
-
Subtotal
-
