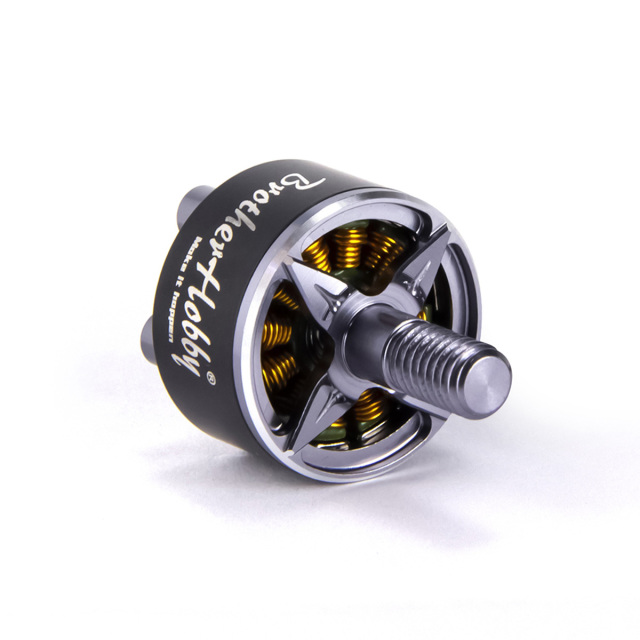

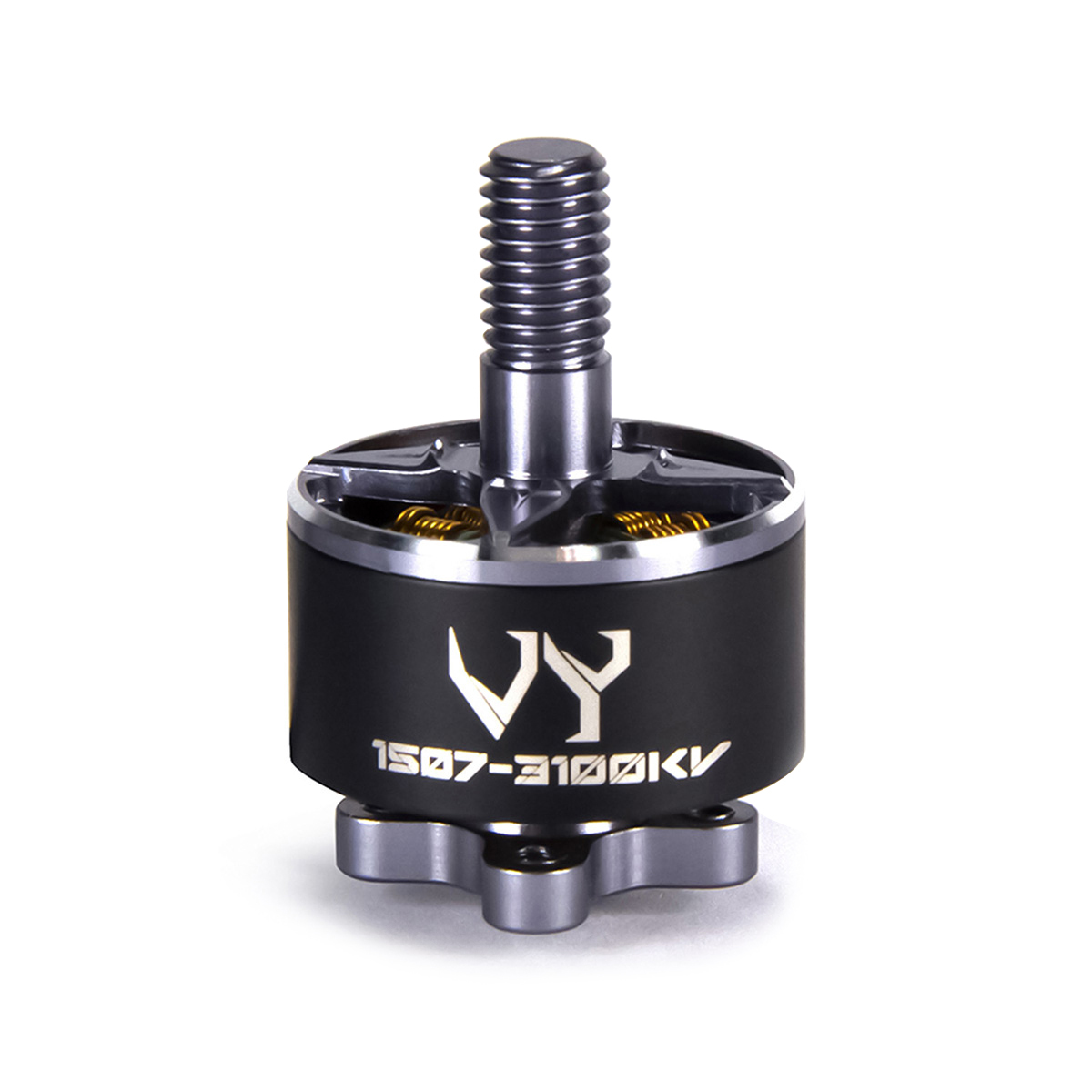

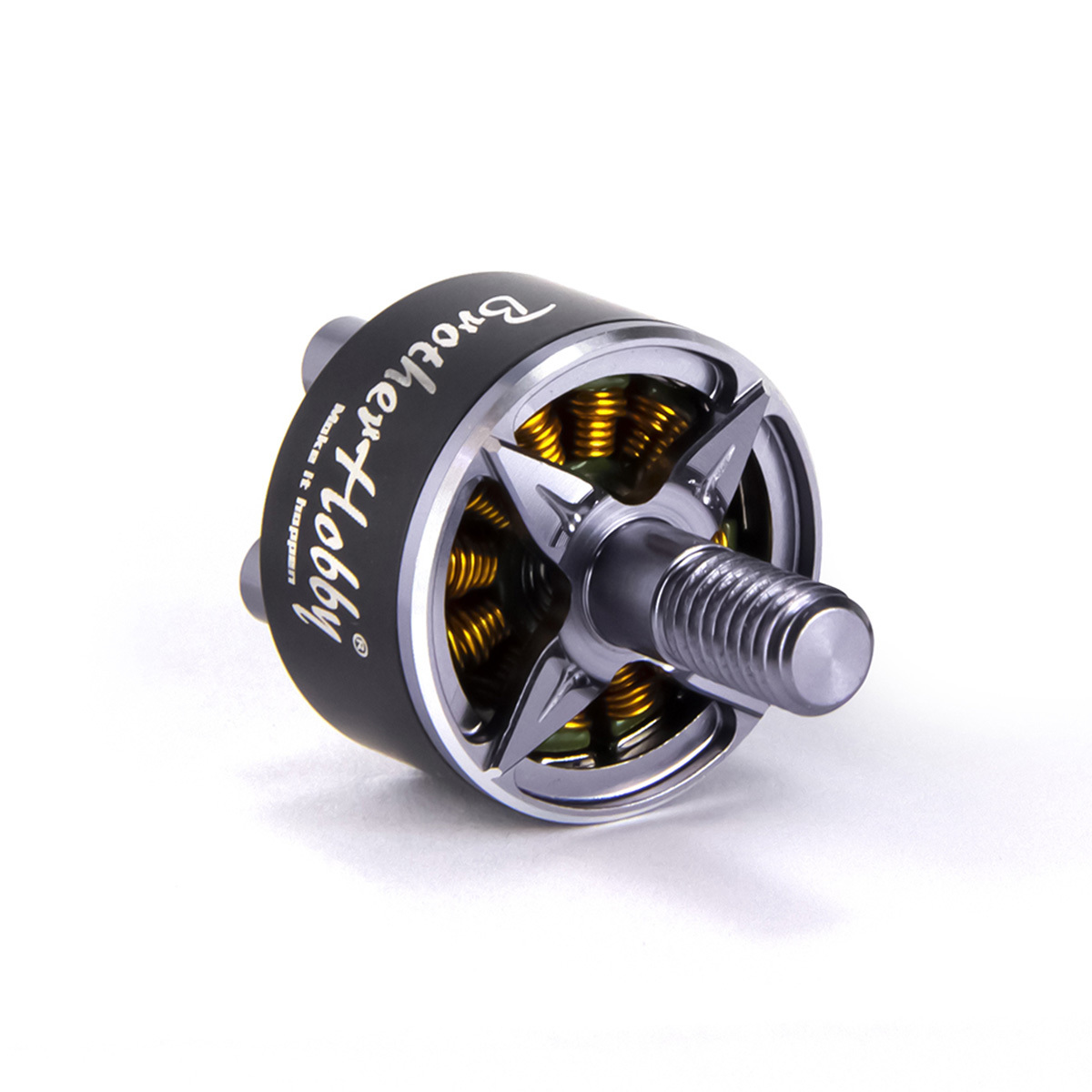

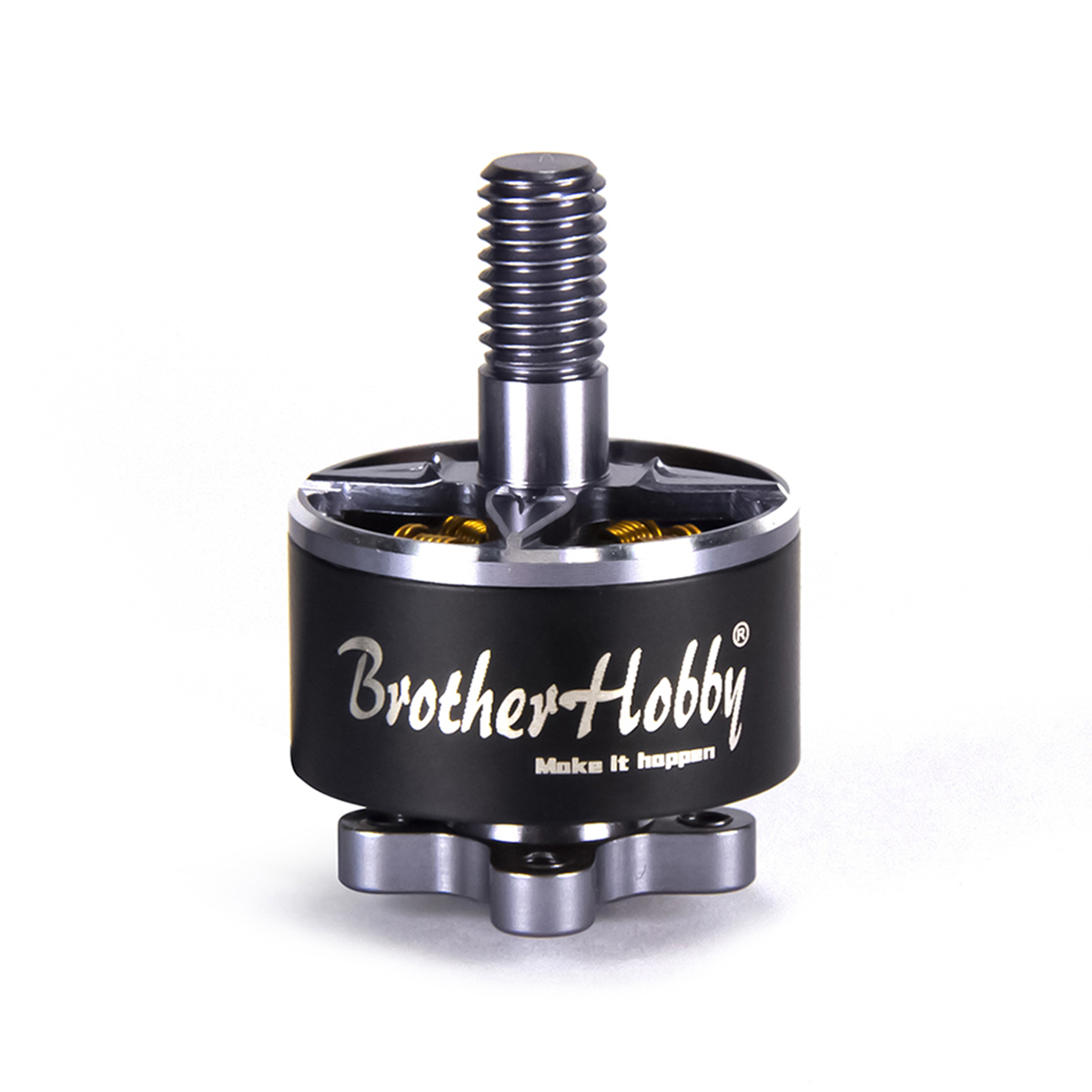

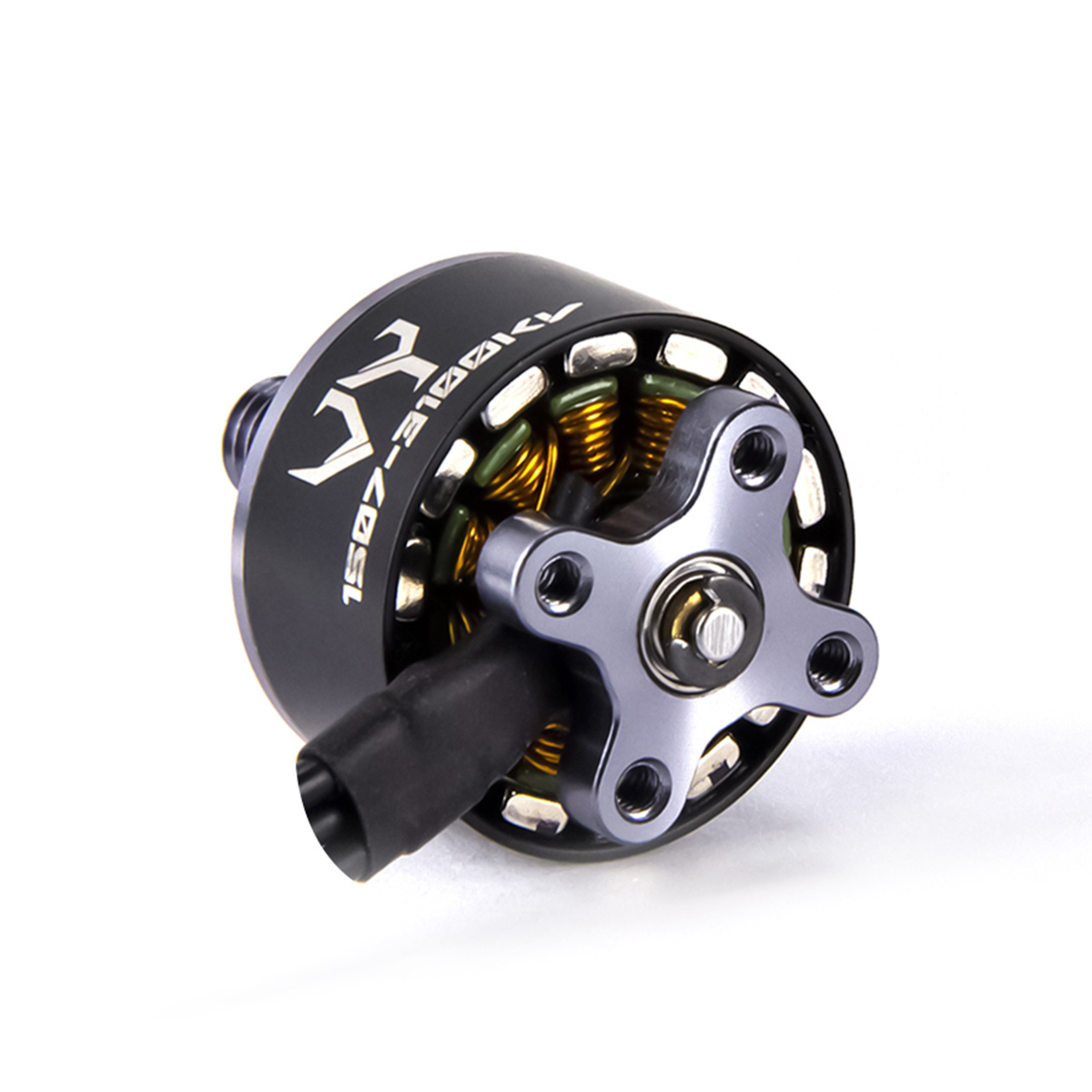

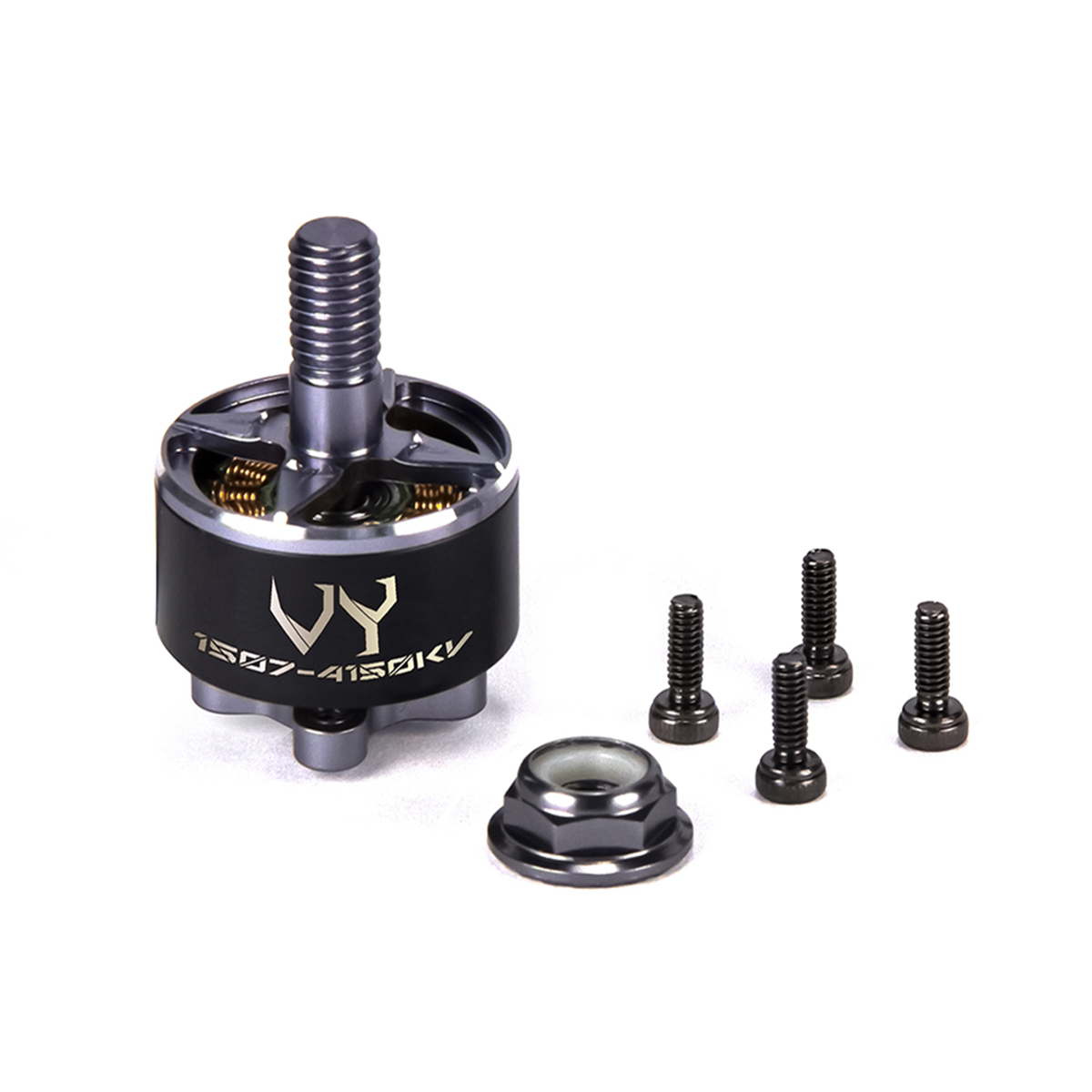

BrotherHobby VY 1507 Motor

Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.
Specifications
KV:
1550KV&3100KV(6S)/1900KV&4150KV(4S)
Base casing:
Al 7075
Stator:
7mm
Configuration:
12N14P
Prop Adapter Shaft Thread:
M5
Shaft:
Titanium Alloy hollow shaft
No.of Cells(Lipo):
4-6S
Bolt Pattern:
M2 (12X12mm)
Bearings:
Φ5*Φ2*2.5
Rotor:
N52H arc magnets
Weight:
16.3g
Wire AWG:
24AWG 16cm length
Bell cap:
Al 7075
Attributes
KV:
1550
1900
3100
5140
