Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.

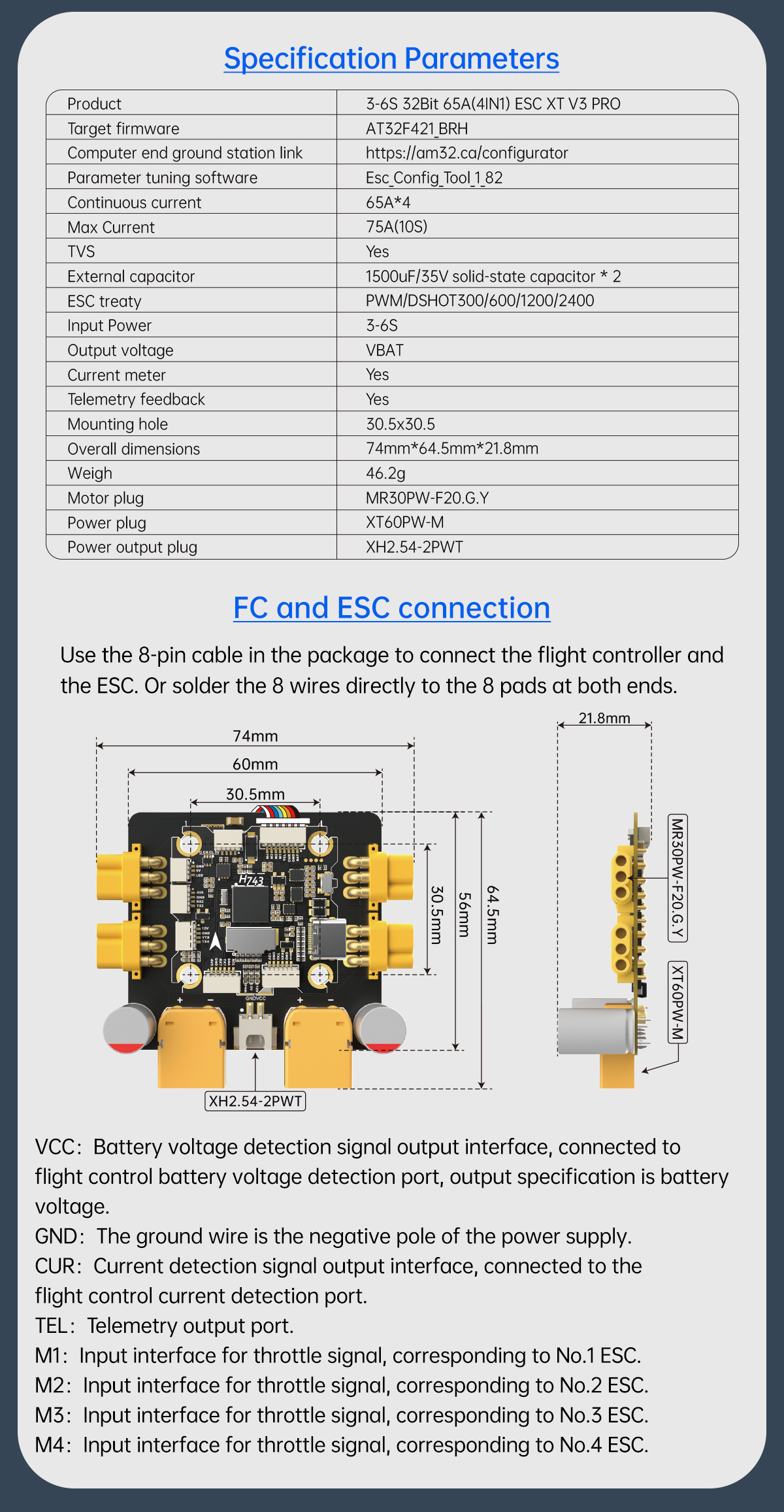

Specifications
Product:

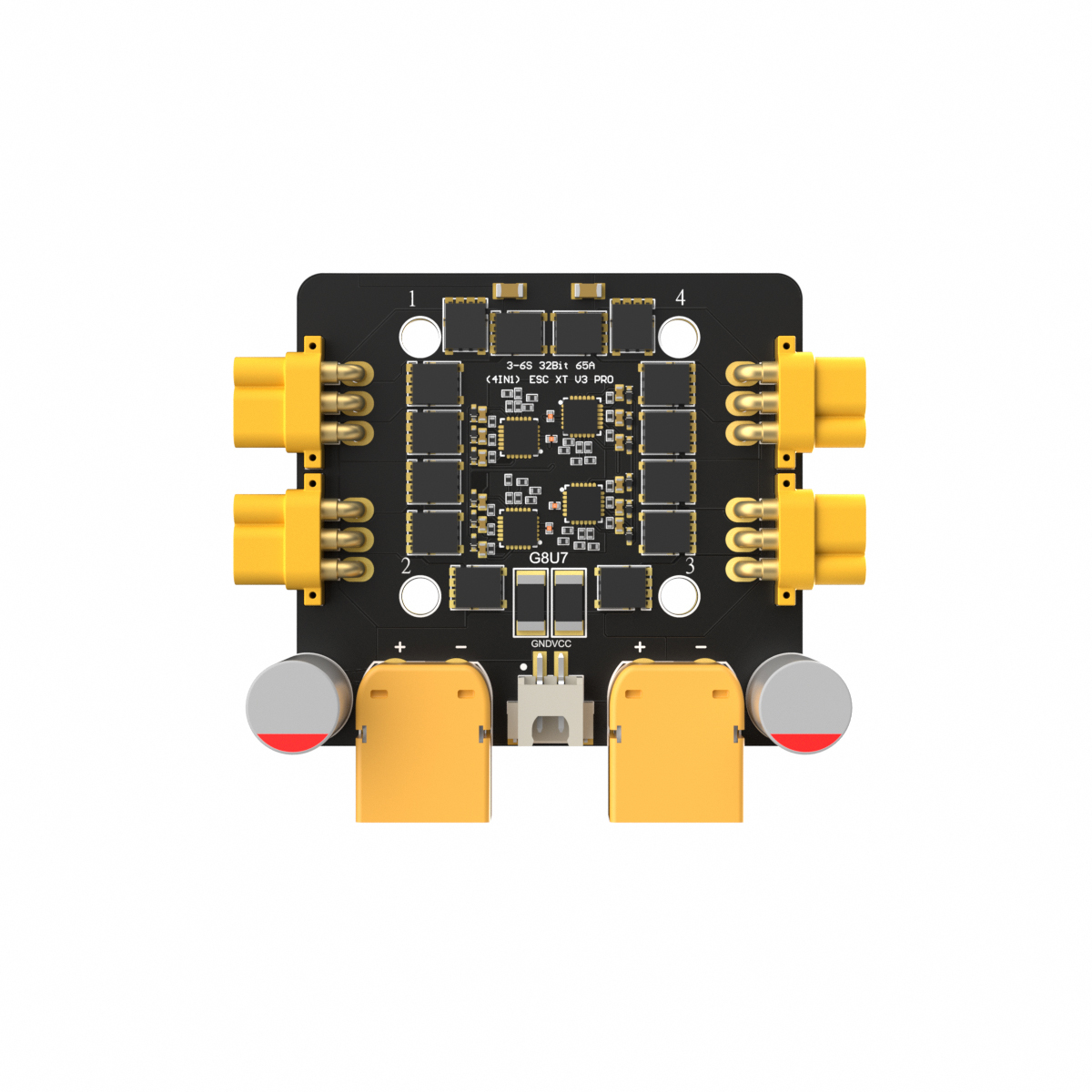

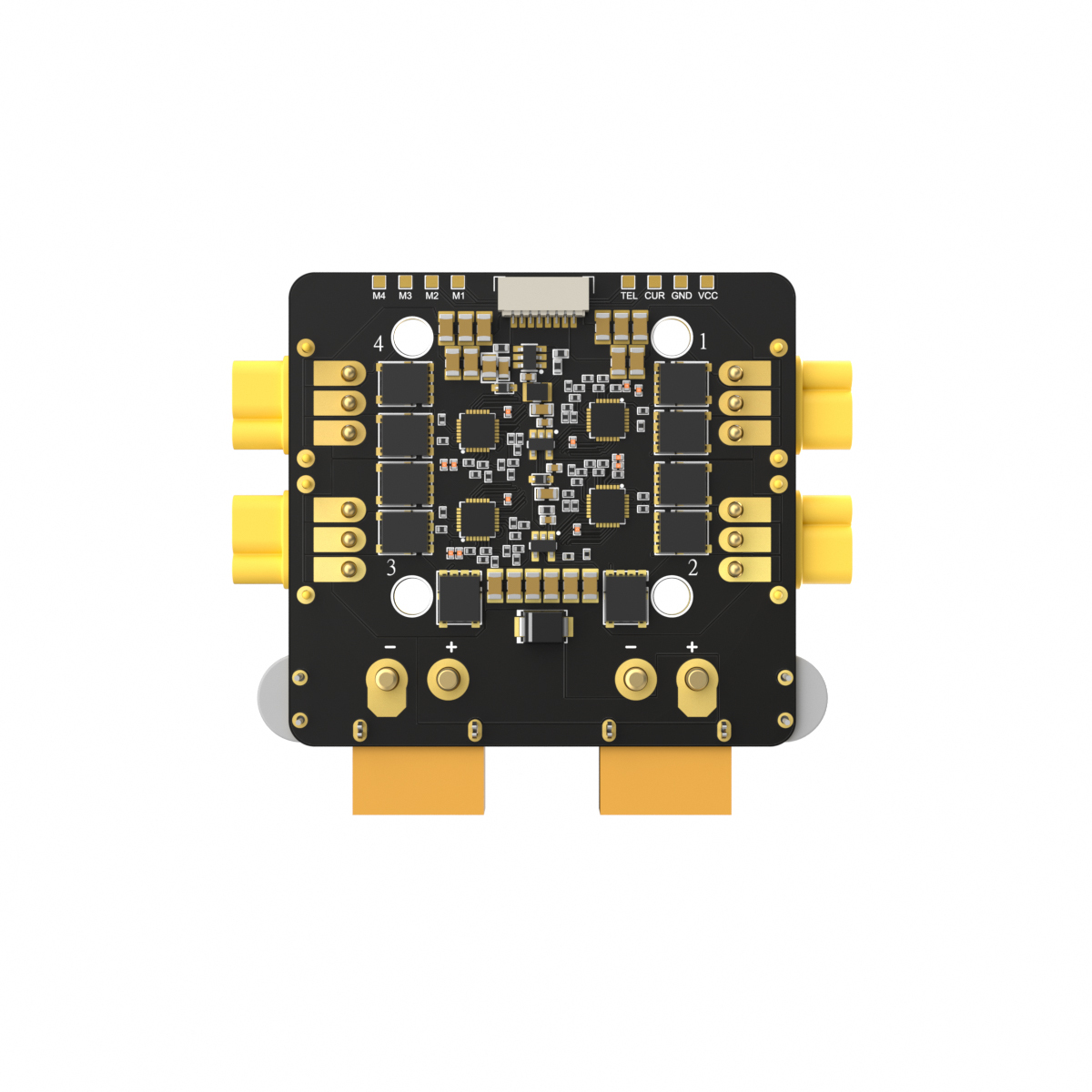

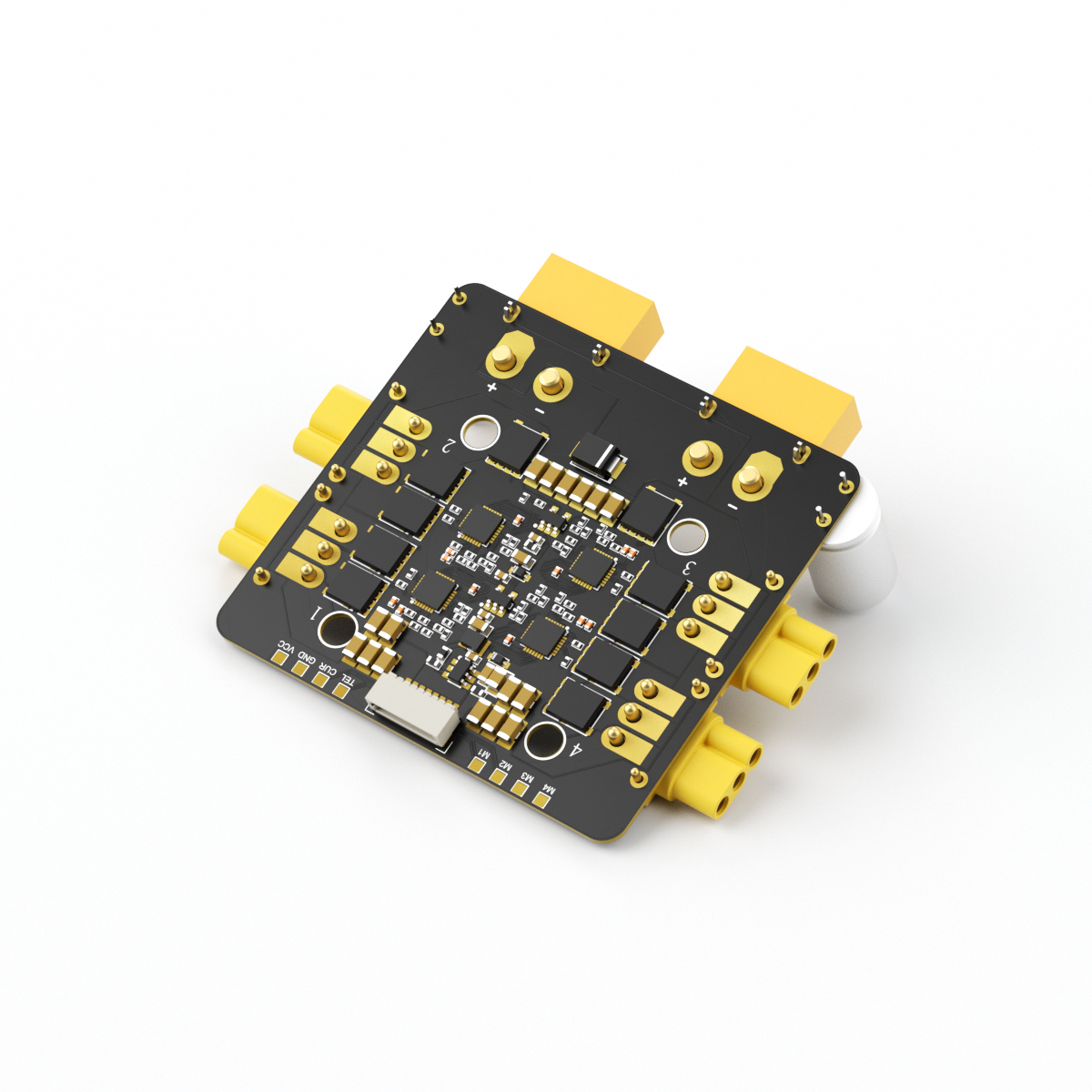

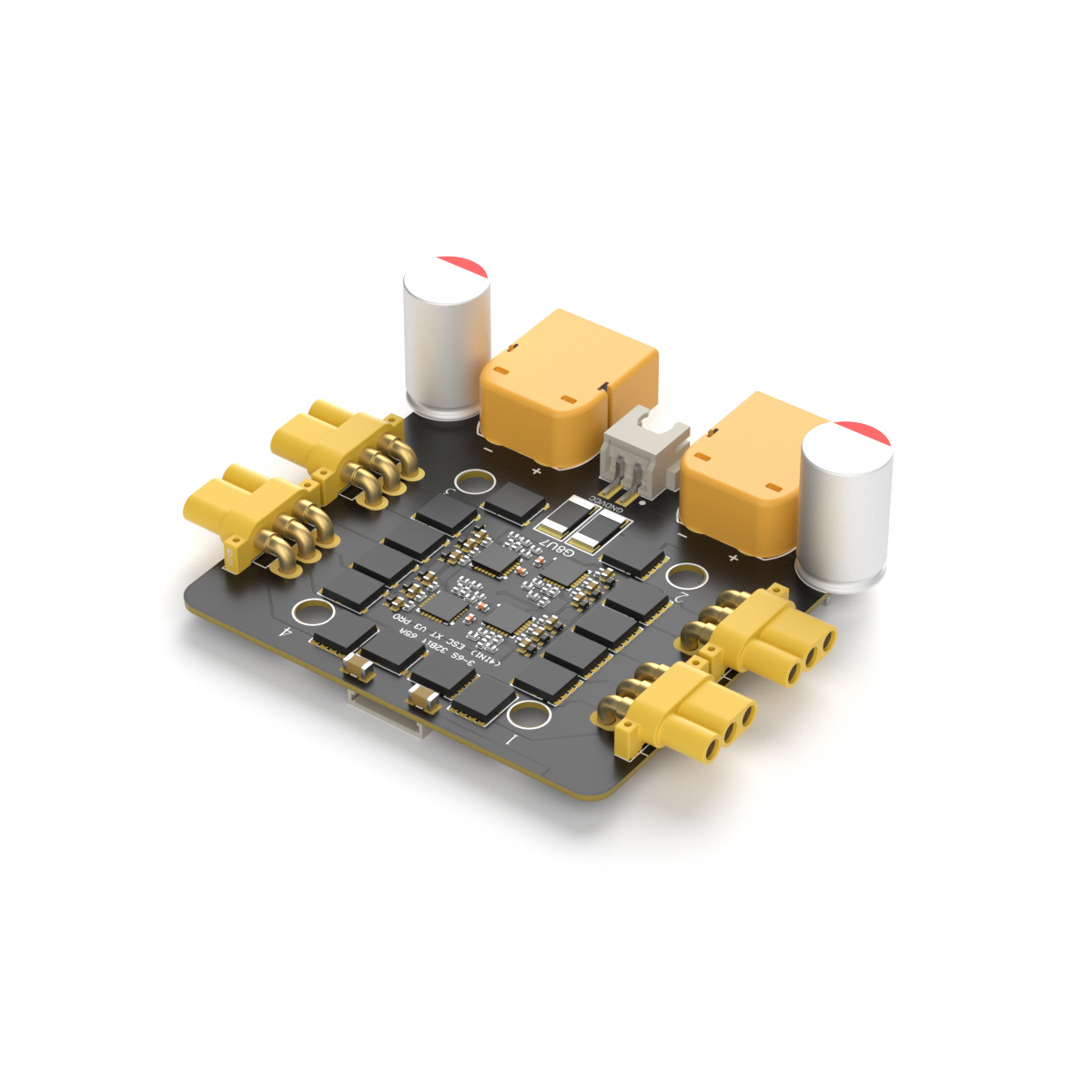

Returner 3-6S 32Bit 65A(4IN1) ESC XT V3 PRO
Target firmware:
AT32F421_BRH
Computer end ground station link:
https://am32.ca/configurator
Parameter tuning software:
Esc_Config_Tool_1_82
Continuous current:
65A*4

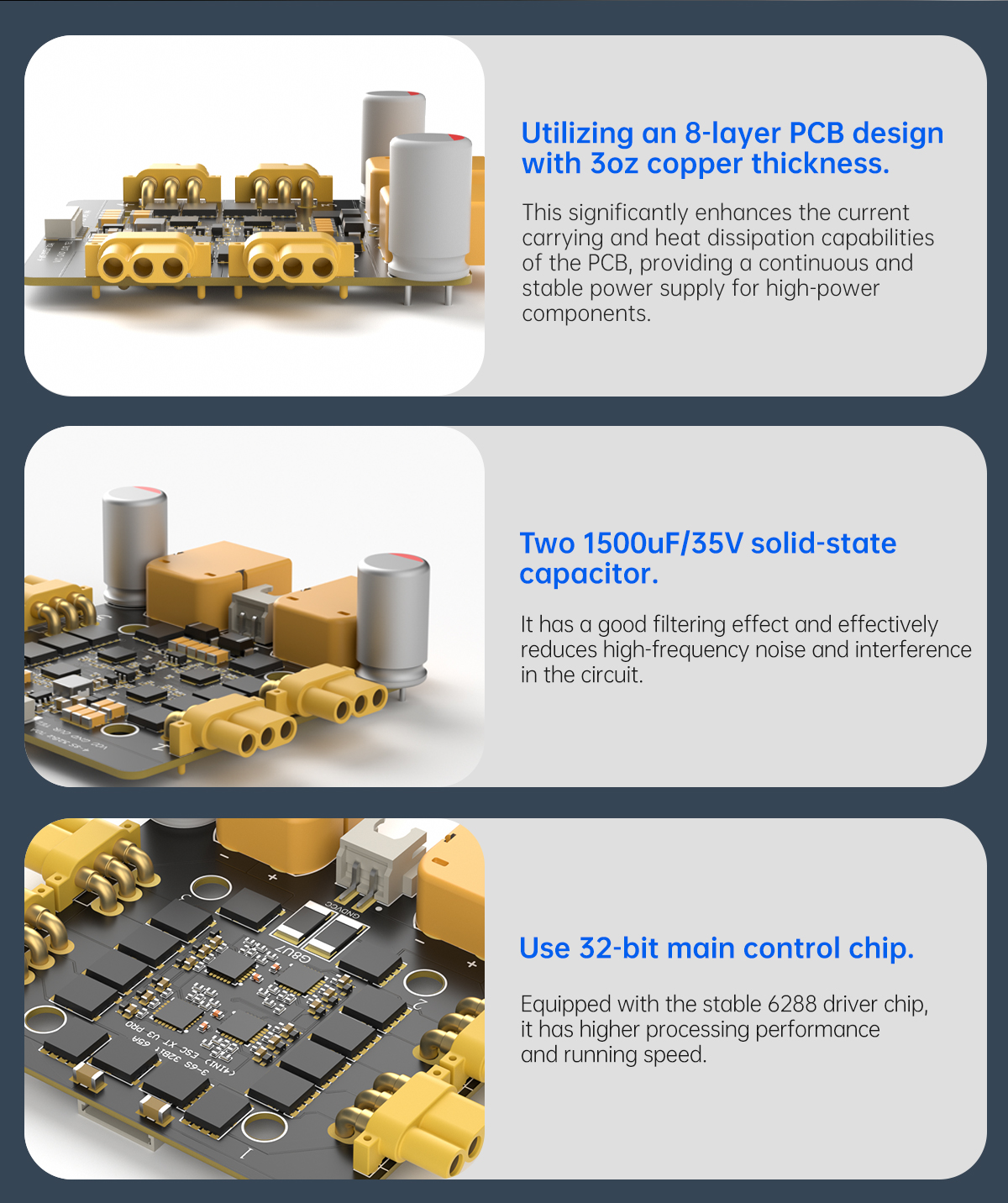

External capacitor:
1500uF/35V solid-state capacitor * 2
ESC treaty:
PWM/DSHOT 300/600/1200/2400
Mounting pattern:
30.5x30.5mm(hole diameter 4mm)
Dimensions:
74mm*64.5mm*21.8mm

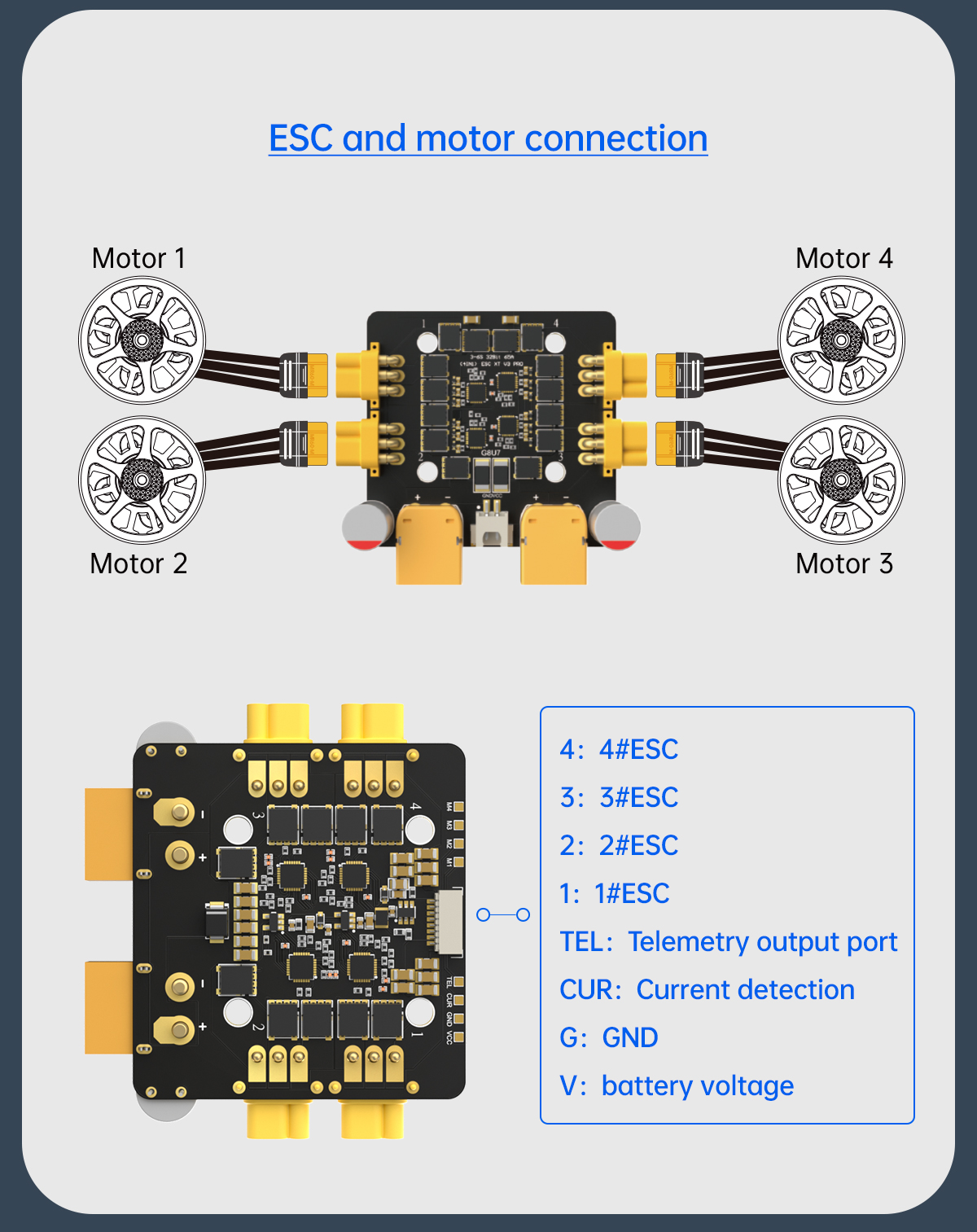

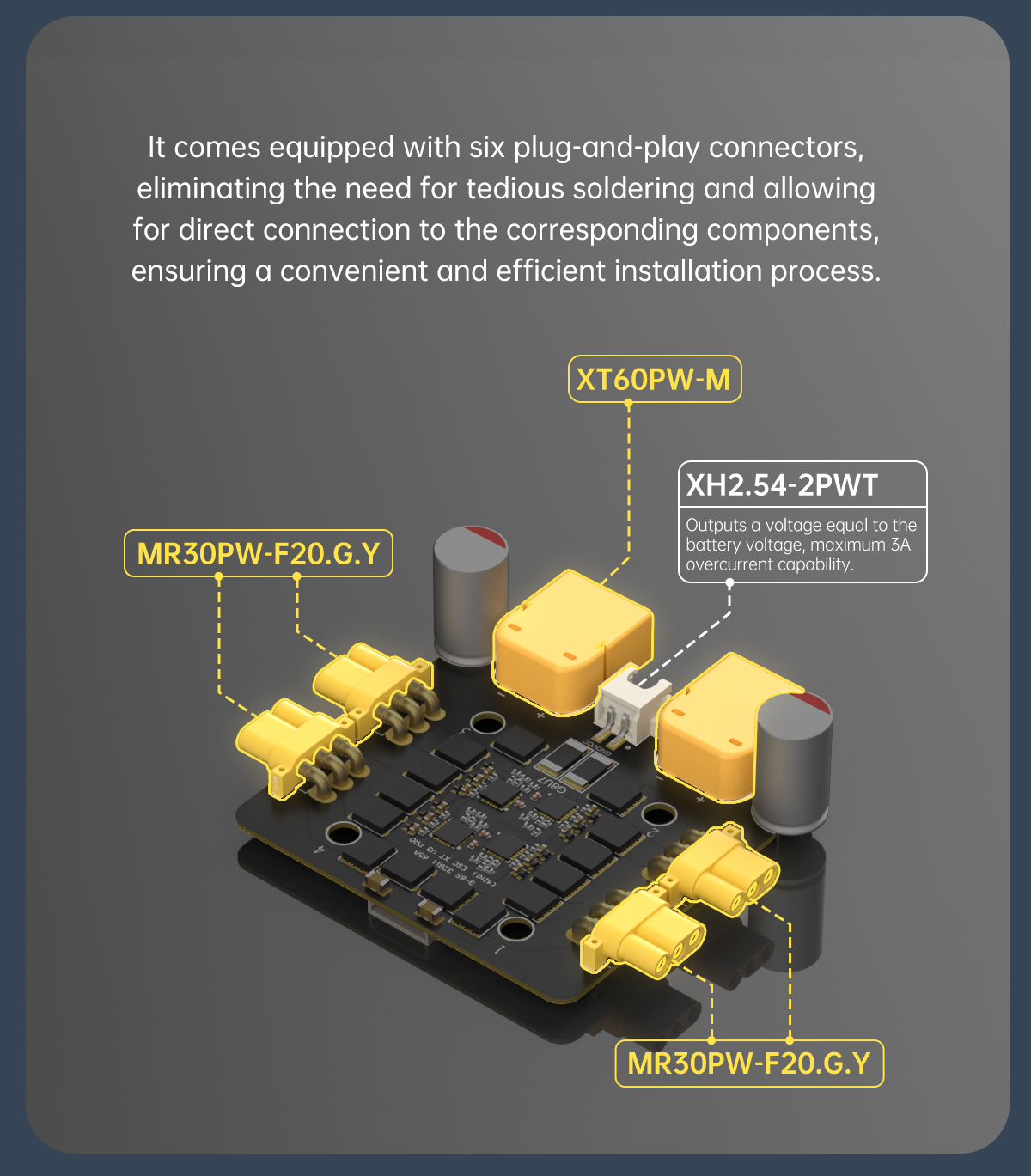

Motor plug:
MR30PW-F20.G.Y
Power output plug:
XH2.54-2PWT
