Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.
Specifications
Product:

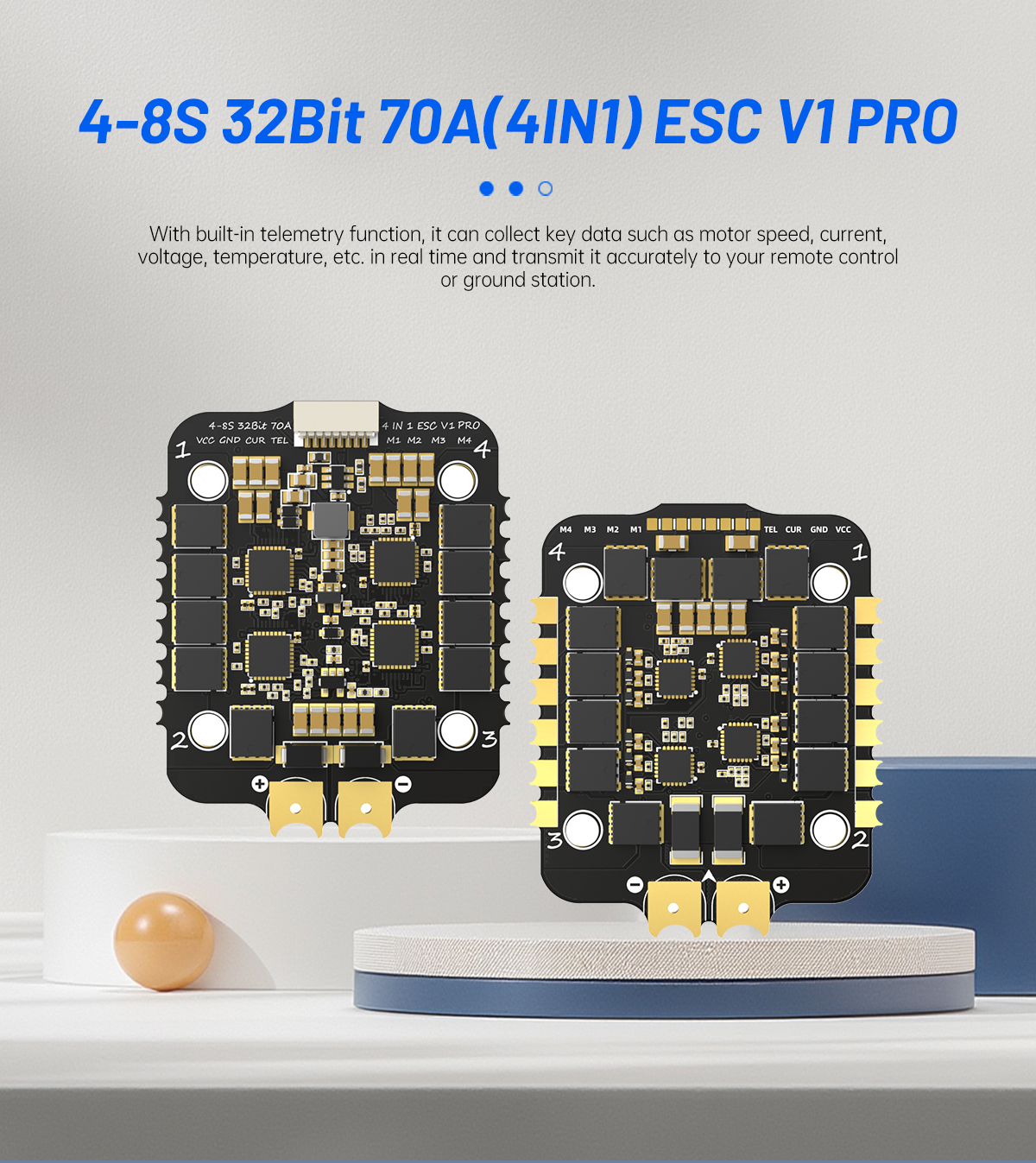

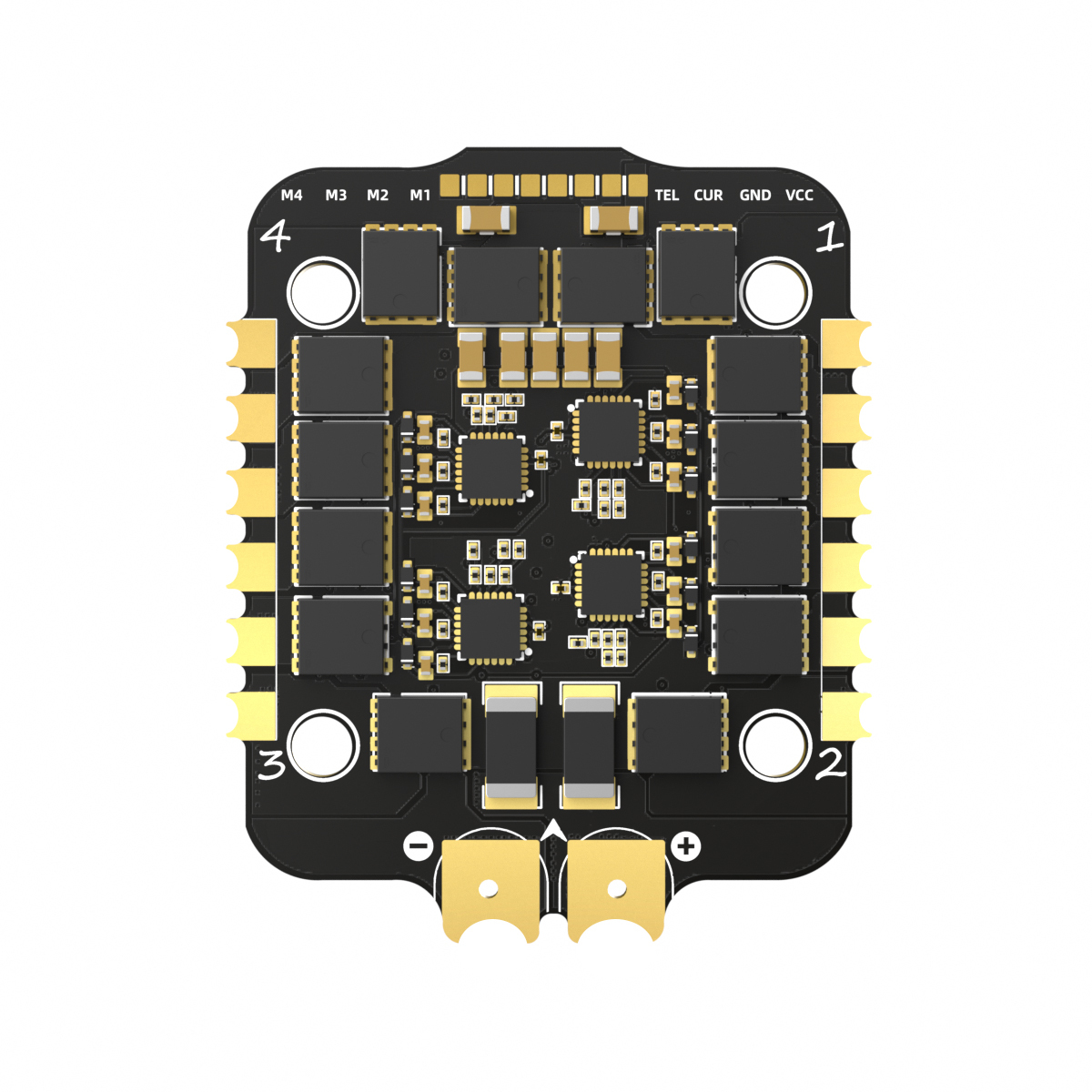

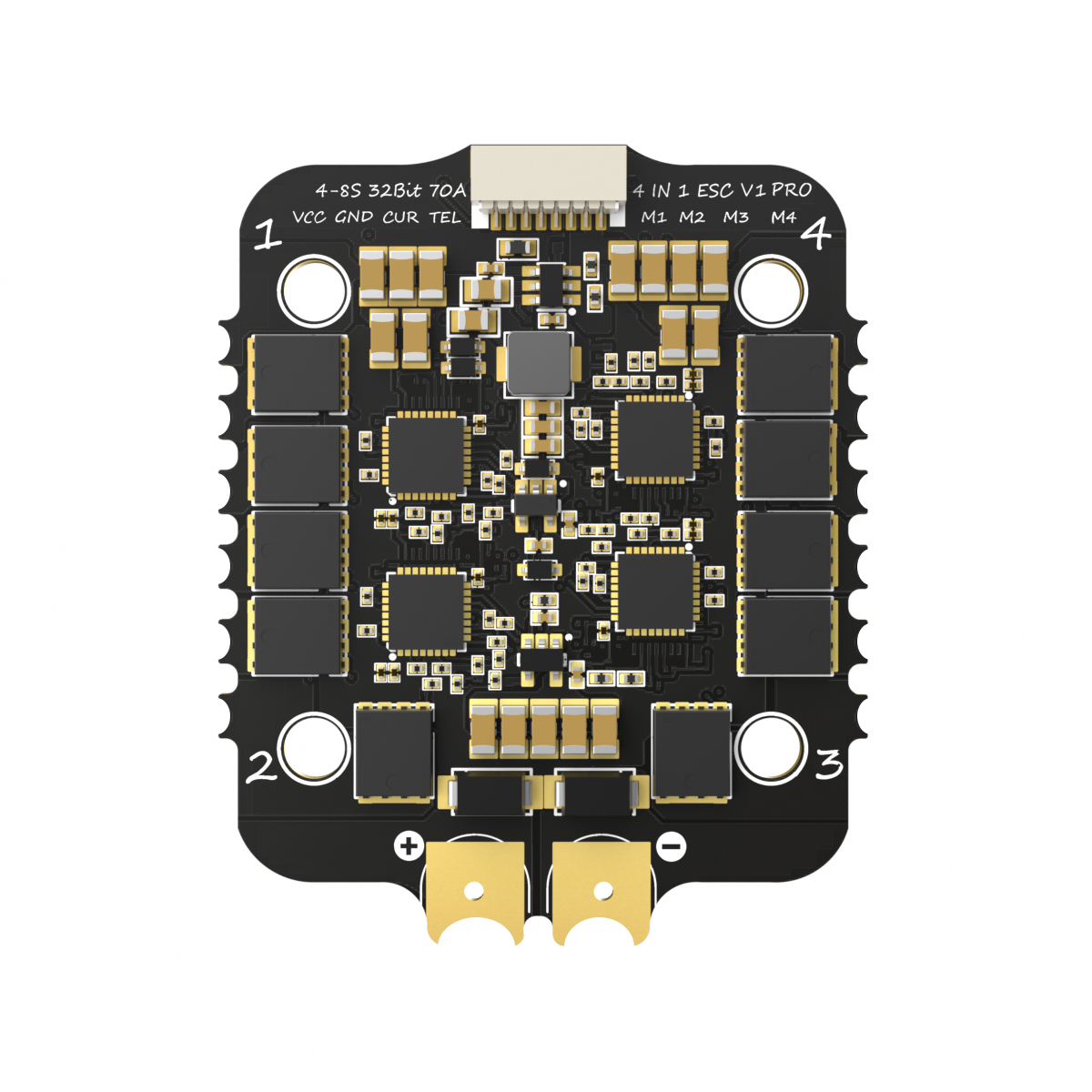

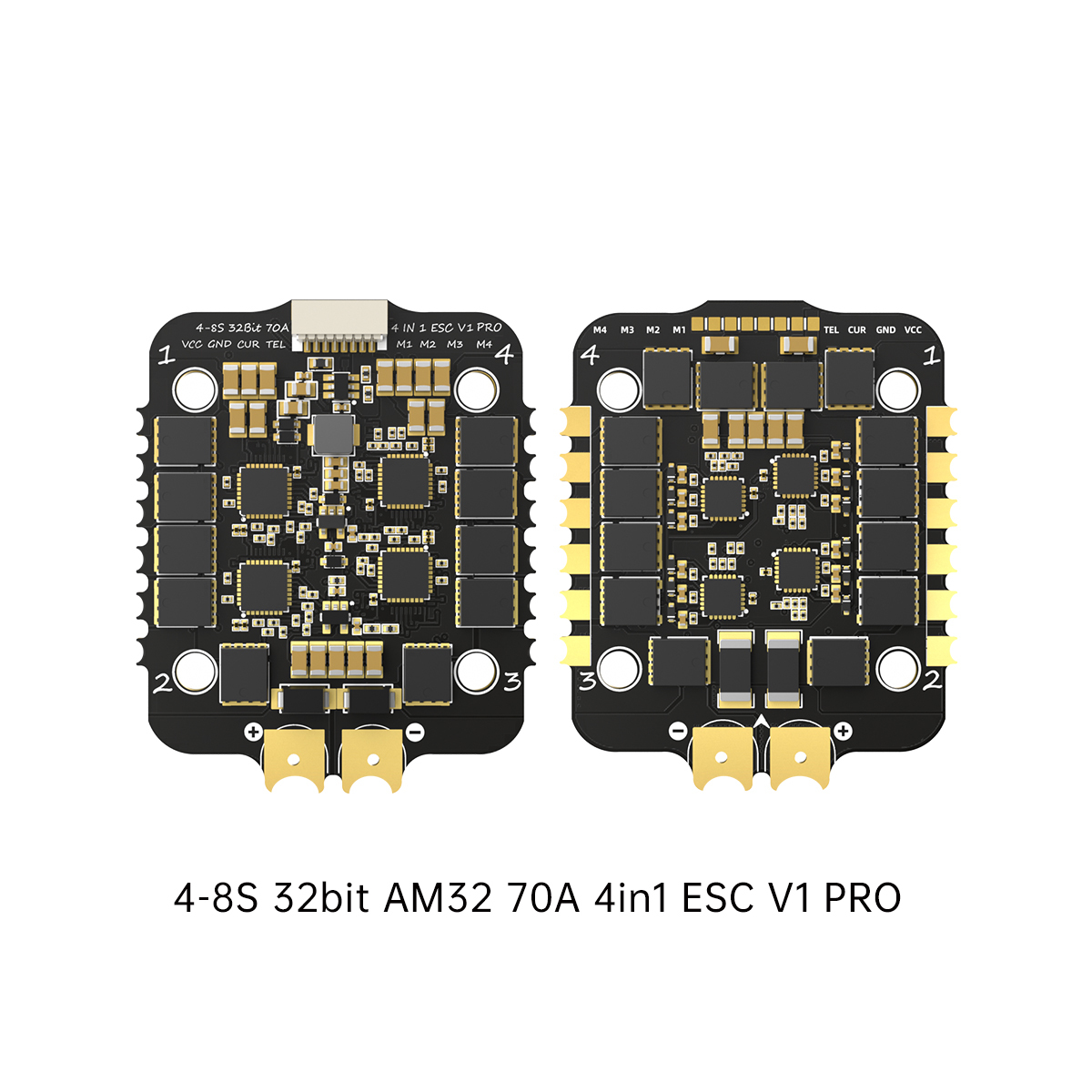

4-8S 32bit AM32 70A 4in1 ESC V1 PRO
Target firmware:
AM32_AT32PB4_540_F421_2.16.hex
Computer end ground station link:
https://am32.ca/configurator
Parameter tuning software:
Esc_Config_Tool_1_82
Continuous current:
70A*4

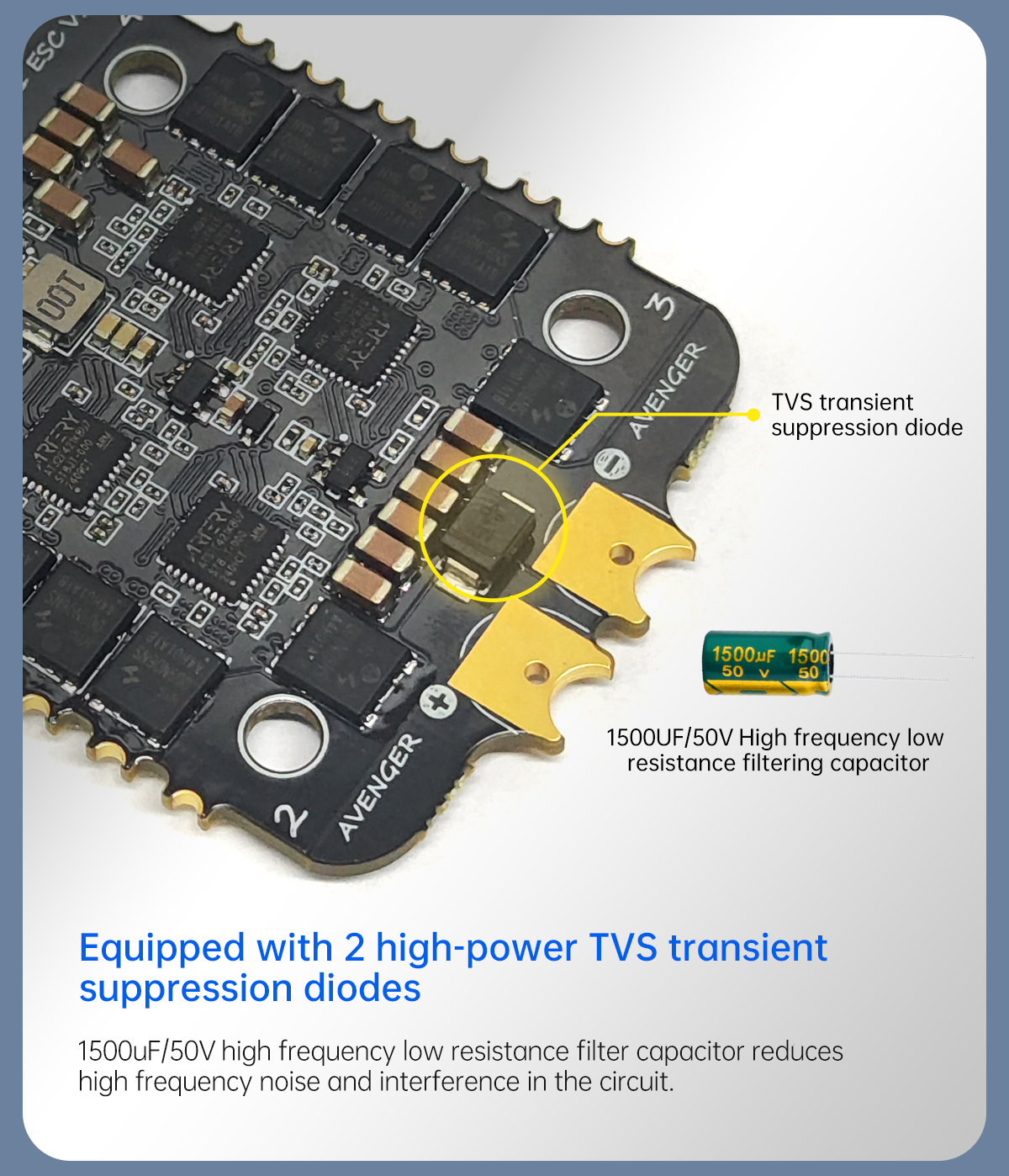

TVS:
Two high-power transient suppression diodes effectively absorb instantaneous peak voltage
External capacitor:
1500uF/50V
ESC treaty:
PWM/DSHOT300/600/1200/
Mounting pattern:
30.5x30.5mm
Overall dimensions:
53mmx43.5mmx6mm
