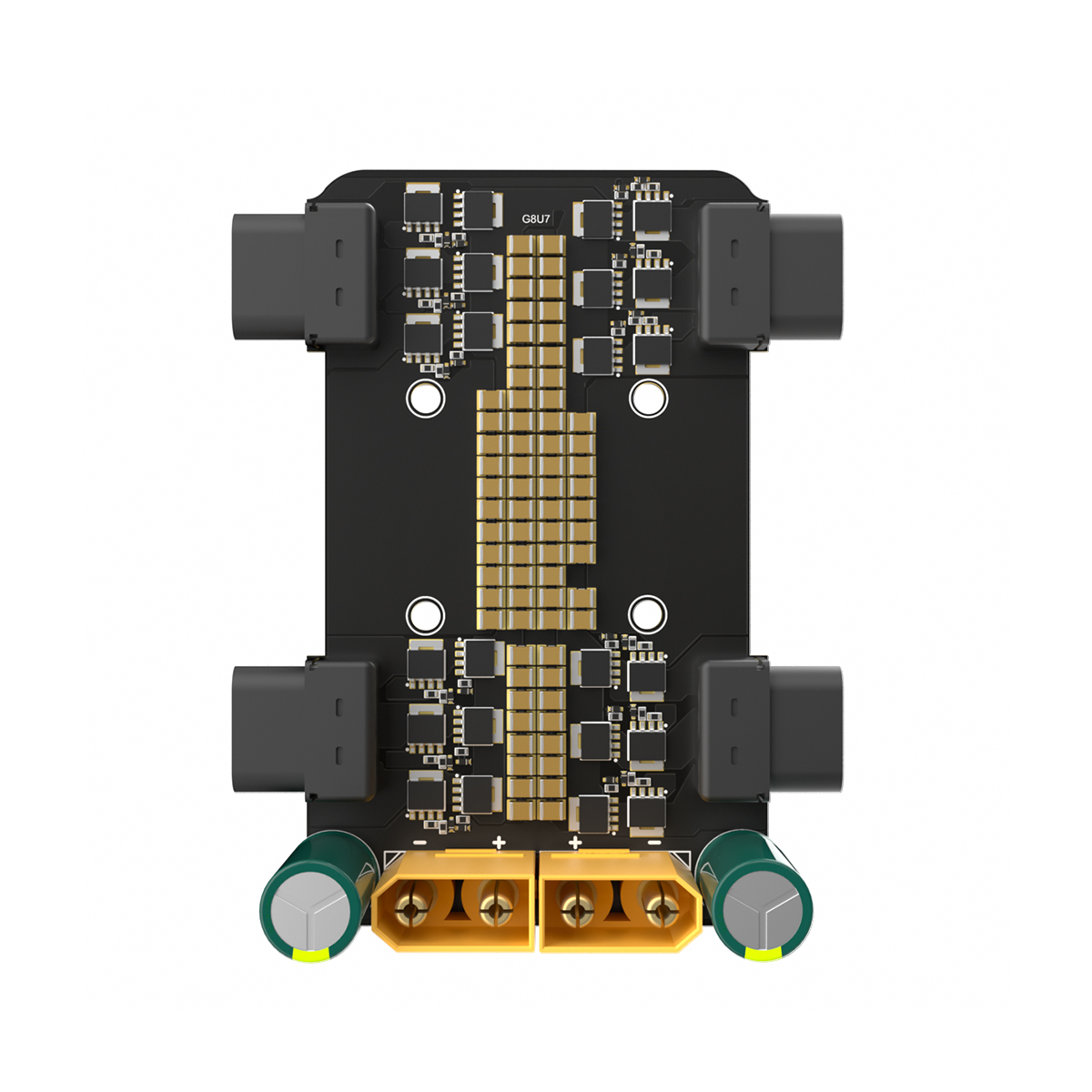

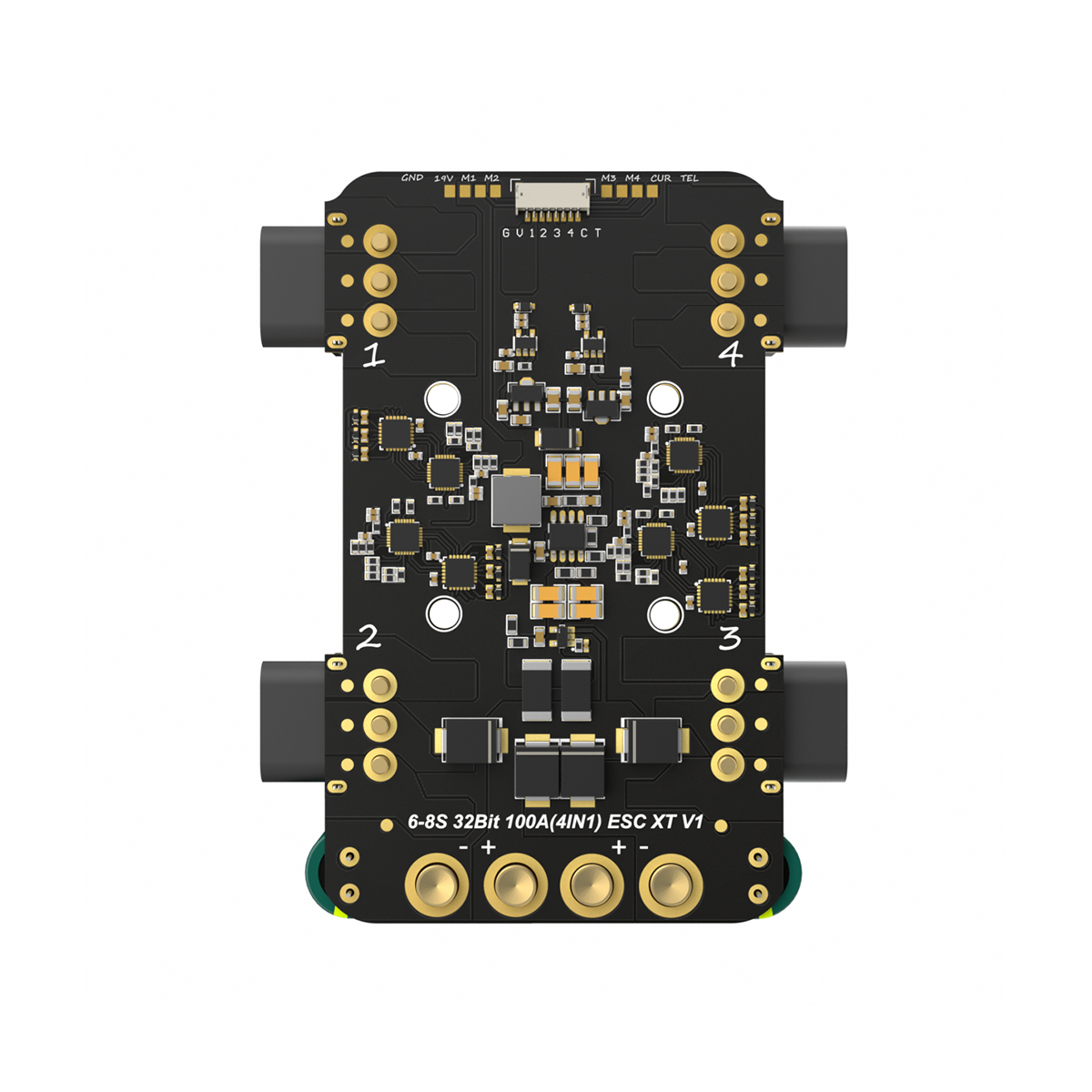

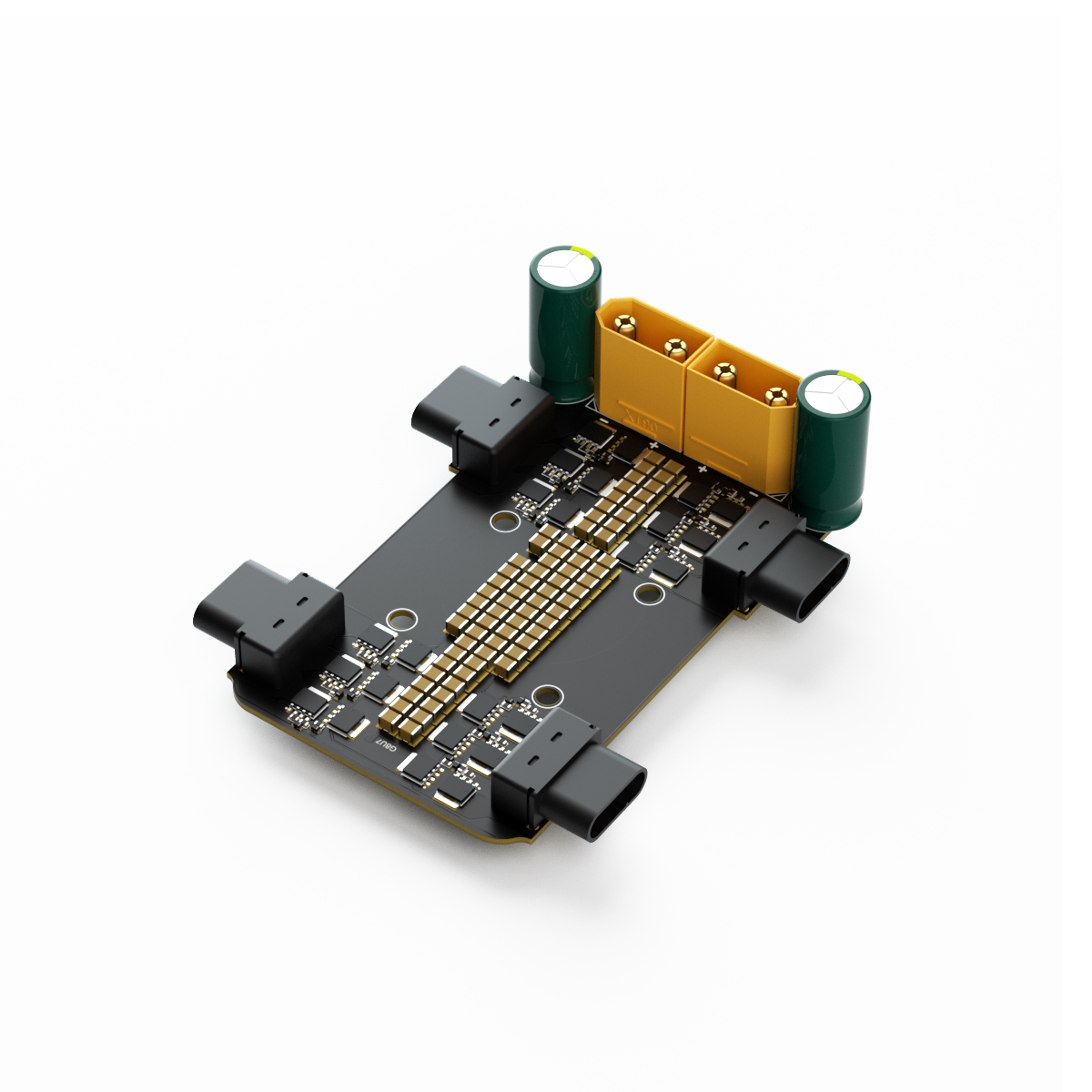

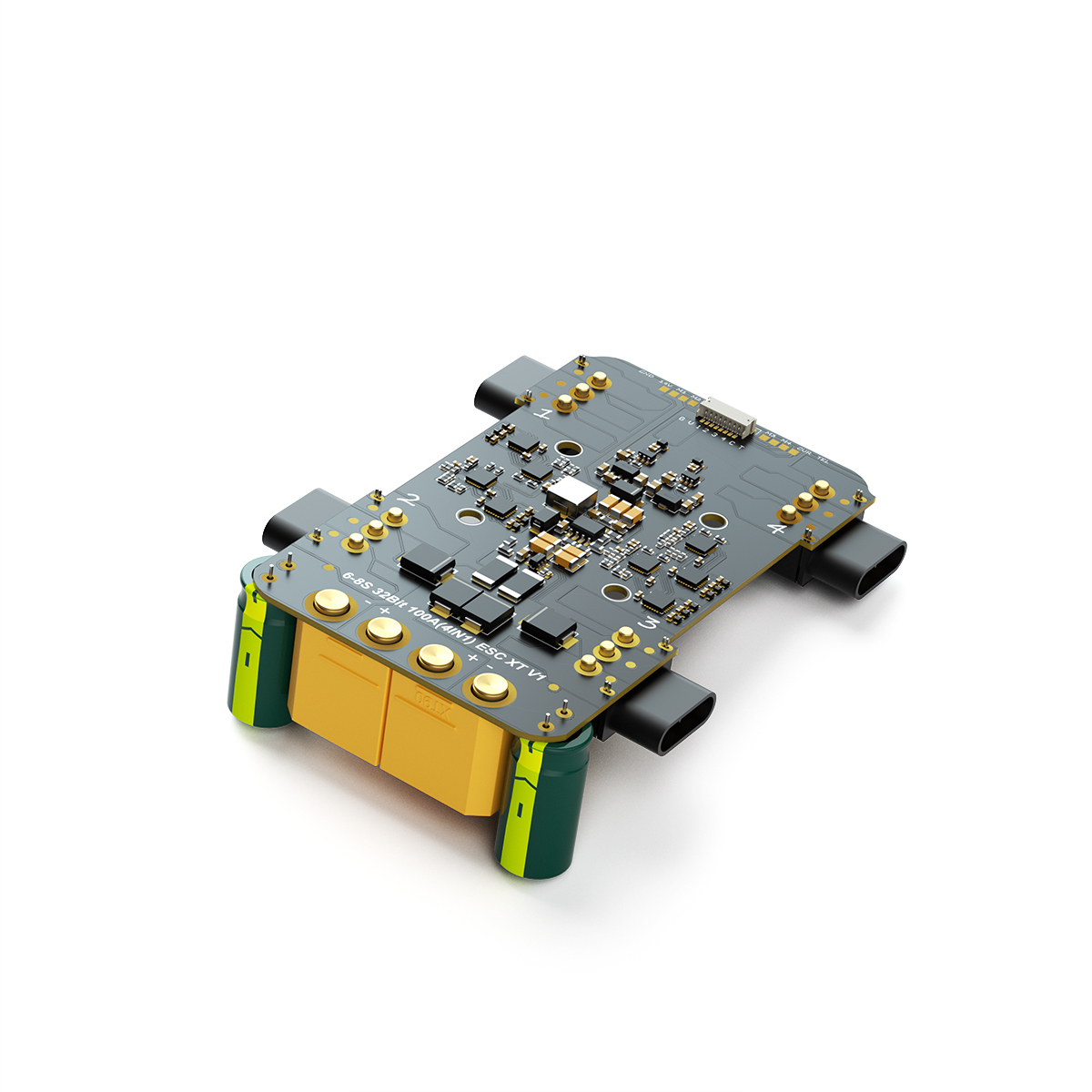

Returner 6-8S 32Bit am32 100A(4IN1) ESC XT V1
Purpose: Power drive for toy models, car models, airplane models, balance bikes, power tools, etc.

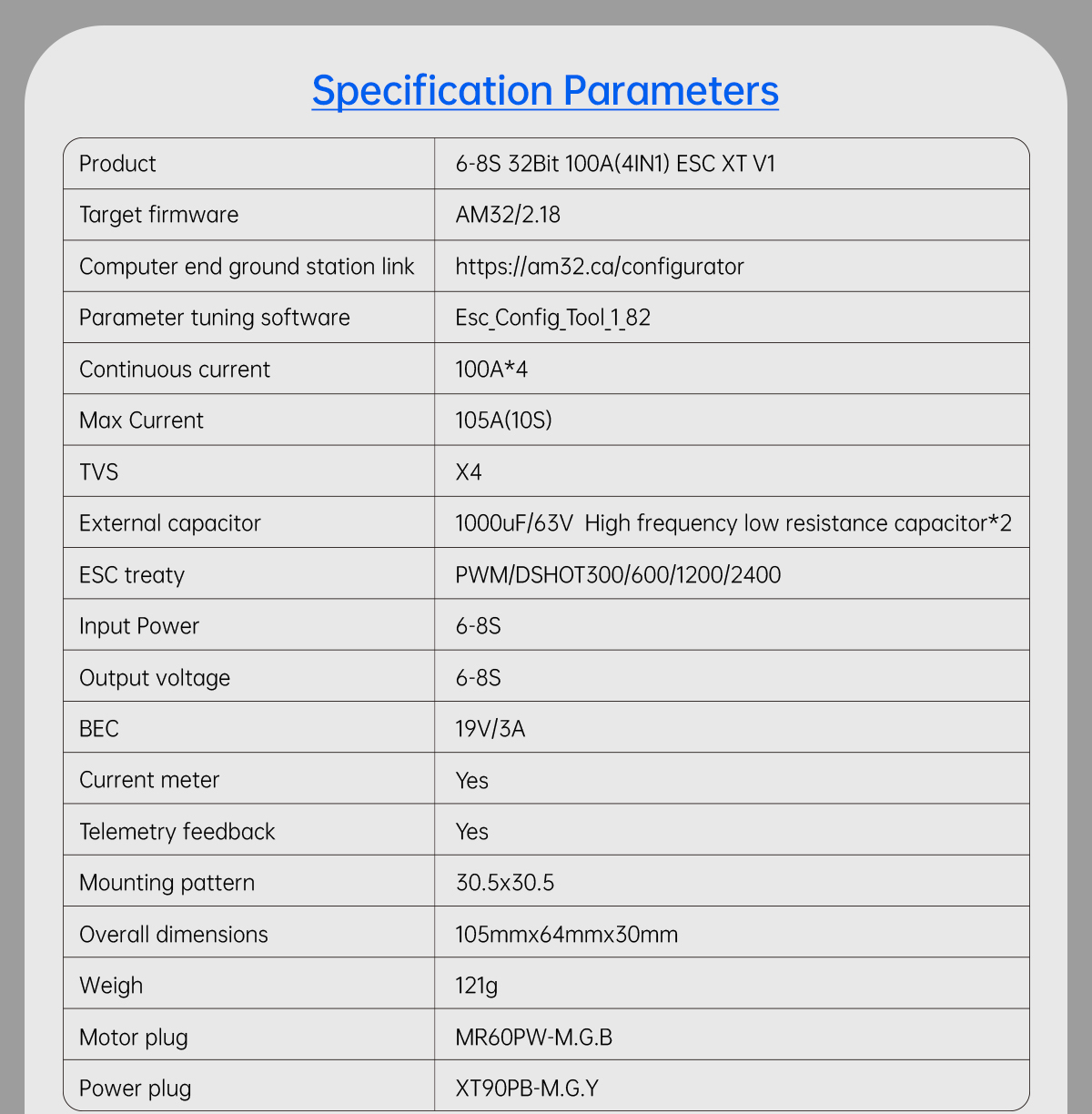

Specifications
Product:
6-8S 32Bit 100A(4IN1) ESC XT V1
Target firmware:
AM32/2.18
Computer end ground station link:
https://am32.ca/configurator
Parameter tuning software:
Esc_Config_Tool_1_82
Continuous current:
100A*4
External capacitor:
1000uF/63V High frequency low resistance capacitor*2
ESC treaty:
PWM/DSHOT300/600/1200/2400
Mounting pattern:
30.5x30.5mm
Overall dimensions:
105mmx64mmx30mm
